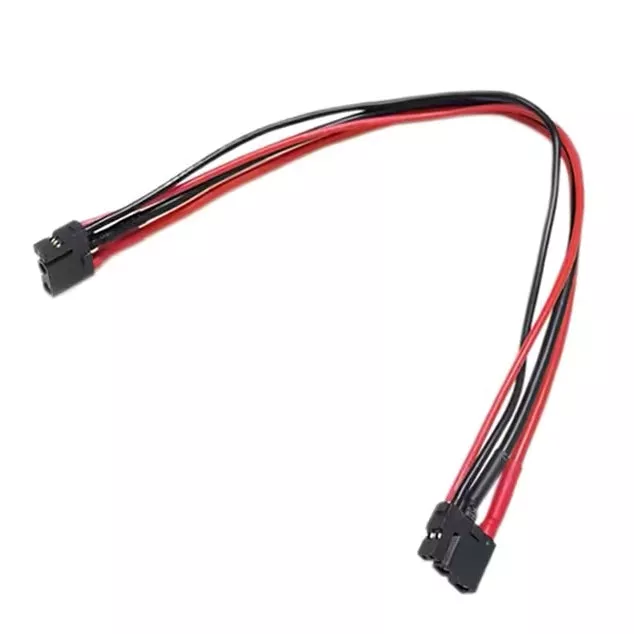

Amass XT30(2+2)-F Dual-End 4-Pin Power Extension – Custom Cable Assembly

Original price was: $5.60.Current price is: $2.84.

Sale!
SKU: 4046415239 Category:
Share
  • Dual-end 4-conductor extension cable terminated with an Amass XT30(2+2) female connector on each end, combining two main XT30 power contacts (15 A each) with two auxiliary signal contacts in one housing the standard interface for smart-battery telemetry, BMS communication, balance leads, and ID-pin wiring on FPV and small UAV systems.
  • Available in 16, 18, and 20 AWG silicone for the two power conductors and 22 to 26 AWG silicone for the two signal conductors, in stock lengths of 6, 9, 12, 18, and 24 inches, with red/black power coding, white/yellow or blue/green signal coding, and optional heat-shrink or expandable-braid sheathing over the four-wire bundle.
  • XT30 main power contacts rated 15 A continuous and up to 30 A peak at 500 V DC per Amass X-series specification, with the two auxiliary signal contacts rated approximately 5 A each gold-plated copper contacts in a glass-fiber-reinforced nylon housing rated to 280 C, with the power pins remaining the current-limiting element of the finished cable.
  • Used as smart-battery and telemetry extension cabling on FPV cinewhoops and sub-250 g drones with battery ID pins, BMS-managed Li-ion packs requiring SMBus or balance-line passthrough, small UAVs with battery health reporting, and bench fixtures where pack power and a 1-Wire or IC telemetry channel must travel together in a single connector.
  • Custom power gauge (1622 AWG), signal gauge (2228 AWG), overall length, silicone or PVC insulation, signal-conductor color coding, heat-shrink or braided sheathing, and male/female end gender swaps available on request submit a quote request for non-stock builds.
