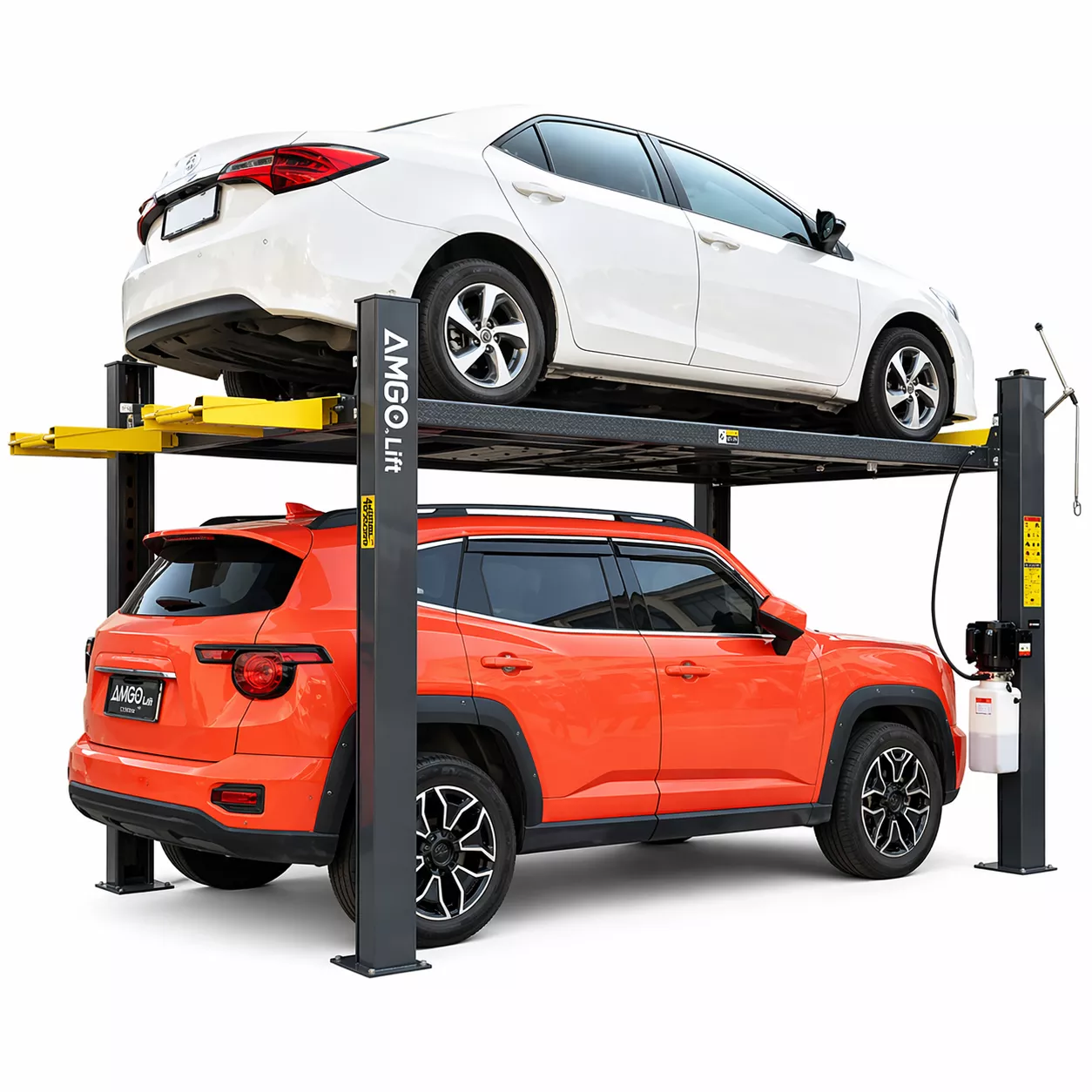

AMGO 409-HP 4-Post Parking Lift 9,000 lb Capacity

The AMGO 409-HP is a space-saving four-post parking lift engineered to maximize garage capacity by allowing double-stacking for up to four vehicles. With a 9,000 lb total lifting capacity and a 6,000 lb max per vehicle, it’s built for residential garages, shops, and storage applications that need both strength and efficiency. Designed with a low-profile approach, this lift makes it easy to load low-clearance vehicles while still providing the height needed to store SUVs and light trucks underneath.

Key Features & Benefits

• 9,000 lb lifting capacity (6,000 lb max per vehicle)
• Low-profile design for easier loading of lowered vehicles
• Dual safety lock system with cable-slack protection for added security
• AMGO patented concealed safety lock system with single-point manual release
• Heavy-duty double-shaped columns for increased structural strength
• Non-slip diamond plate runways for improved traction
• Multiple locking positions for secure vehicle storage
• Foldable drive-on ramps included for space efficiency
• Supports double parking (4 vehicles total)
• Single-cylinder hydraulic system with cable synchronization for smooth, balanced lifting

Safety & Construction

Built with both primary mechanical locks and a secondary cable safety system, the 409-HP keeps vehicles secure at every stage of operation. The ladder-style locking system provides multiple height positions, while the manual release allows controlled and reliable lowering. The reinforced structure and high-quality cylinder system are designed for long-term durability and consistent performance.

Optional Accessories & Upgrades

Enhance the functionality of your lift with these available add-ons:

• Caster Kit (40801) Easily move the lift within your garage
• Plastic Oil Drip Trays (40806 / 40807) Protect vehicles below from fluid leaks
• Adjustable Jack Tray (40816) Ideal for maintenance and wheel service
• Motor Protective Cover (40810) Includes emergency stop switch for added safety
• Extended Aluminum Ramps (40815) Better approach angle for low vehicles
• Rubber Wheel Chocks (40811) Helps prevent vehicle movement
• Storage Wave Panels (40812) Additional platform utility
• Sliding Jack (RJ-6H / J5H) Up to 5,0006,000 lb capacity for wheel lifting

These accessories allow you to convert the lift from simple parking storage into a fully functional service platform.

Ideal Applications

• Residential garage vehicle stacking
• Automotive storage facilities
• Dealership overflow storage
• Performance shops & detailing garages

Installation Notes

• Indoor installation recommended (outdoor requires protective cover)
• Minimum concrete: 4″ thickness, 3,000 PSI
• Must be installed on a level, solid surface
• Professional installation recommended

Why This Lift Stands Out

Unlike basic parking lifts, the 409-HP is designed with real usability in mind from its low approach angle to its reinforced columns and flexible accessory options. It’s not just a storage lift it’s a scalable solution for growing garage capacity without expanding footprint.
