Track-Grade Carbon Fiber Rear Diffuser Engineered for the Corvette Z06

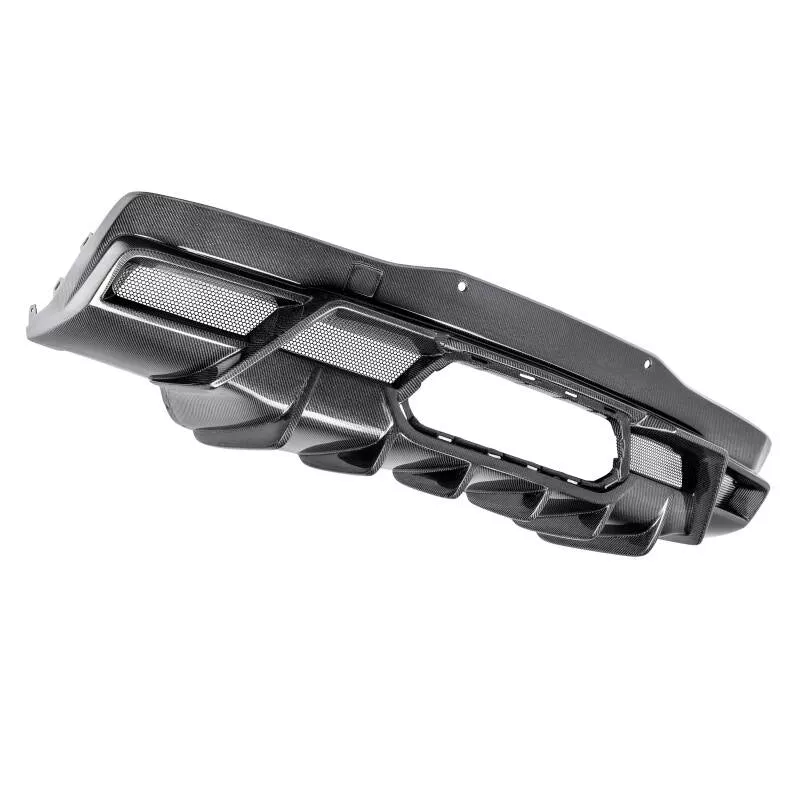

The AC-RD23CHC8Z6-AZ rear diffuser for the Corvette Z06 is built from 3K 2×2 twill carbon fiber using a vacuum-infused wet layup, delivering the iconic carbon weave with up to 50% weight savings over the factory steel panel. Engineered with functional diffuser fins to manage underbody airflow at speed, this component replaces the factory rear valance or lower bumper section and mounts at the OEM attachment points without cutting or drilling. The AC-RD23CHC8Z6-AZ brings up to 50% weight savings over the stock plastic unit alongside genuine aerodynamic benefit, reducing underbody turbulence and improving rear stability at track speeds.
Key Features
- Material: 3K 2×2 twill carbon fiber, vacuum-infused wet layup
- Finish: marine-grade gel coat with UV inhibitors, hand-polished to a gloss finish
- Weight savings: up to 50% vs. OEM rear valance
- Functional diffuser fins actively manage underbody airflow at speed
- Direct OEM bolt-on, no cutting or drilling required
- Compatible with factory exhaust exit locations
- Precision-molded from OEM panel for exact body line continuity
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| See title | See title | Corvette | See product title |
Specifications
| Detail | Value |
|---|---|
| Part Number | AC-RD23CHC8Z6-AZ |
| Brand | Anderson Composites |
| Material | 3K 2×2 twill carbon fiber |
| Construction | vacuum-infused wet layup |
| Surface Finish | marine-grade gel coat with UV inhibitors, hand-polished to a gloss finish |
| Weight Savings | Up to 50% vs. OEM rear valance |
| Mounting | Direct bolt-on, OEM attachment points |
What’s Included
- Anderson Composites carbon fiber rear diffuser (AC-RD23CHC8Z6-AZ)
- Mounting hardware (uses OEM attachment points)
Frequently Asked Questions
Does the AC-RD23CHC8Z6-AZ provide measurable aerodynamic benefit?
Yes. The diffuser fins expand the exiting underbody airflow, reducing rear turbulence and drag while adding stability at speed. The benefit increases with vehicle velocity and is most noticeable on track above 60 mph.
Will this diffuser fit my exhaust system?
This diffuser is designed around the factory exhaust exit positions for the Corvette Z06. Most OEM-location cat-back systems are compatible. If your exhaust uses relocated tips or custom exit positioning, verify clearance during test-fit before final installation.
Does installation require cutting or drilling?
No. The AC-RD23CHC8Z6-AZ uses the OEM rear attachment points. No new holes or body modification are required. A test-fit before final fastening is recommended to confirm all exhaust and body clearances.
Will this affect factory tow hooks and jacking points?
Yes, access to factory jacking and tow hook locations is preserved in the design. If you have aftermarket underbody accessories, verify clearance during test-fit before committing.
How does carbon fiber hold up to road debris?
The marine-grade gel coat with UV inhibitors resists UV degradation and light surface scratches. Like any composite bumper cover, direct high-speed rock impacts can cause chips. Carbon fiber panels will not rust, dent, or permanently deform. Minor surface damage is repairable with carbon fiber repair kits.
Can this diffuser be painted?
Yes. Prep with a flexible composite primer and apply automotive basecoat and 2K clear coat for a color-matched result alongside adjacent painted panels.
Does Anderson Composites warranty the rear diffuser?
Yes. A limited manufacturer warranty covers material and workmanship defects. Road debris impact damage, improper installation, and ground-clearance-related damage are excluded. Contact Anderson Composites for full terms and claim procedures.
How long does installation take?
Rear diffuser installation typically takes one to two hours. The vehicle needs to be safely lifted for undercarriage access, the OEM lower valance is removed, and the new diffuser is secured using factory clips and fasteners.
Installation Overview
- Lift and support the rear of the vehicle safely to access undercarriage attachment points
- Remove the OEM rear valance or lower bumper section, noting all clip and bolt locations
- Test-fit the AC-RD23CHC8Z6-AZ to confirm alignment with the exhaust exits and body lines
- Transfer or reinstall OEM clips and fasteners to secure the diffuser
- Verify all exhaust clearances before lowering the vehicle
- Torque all fasteners to factory specification and inspect fitment from all angles
