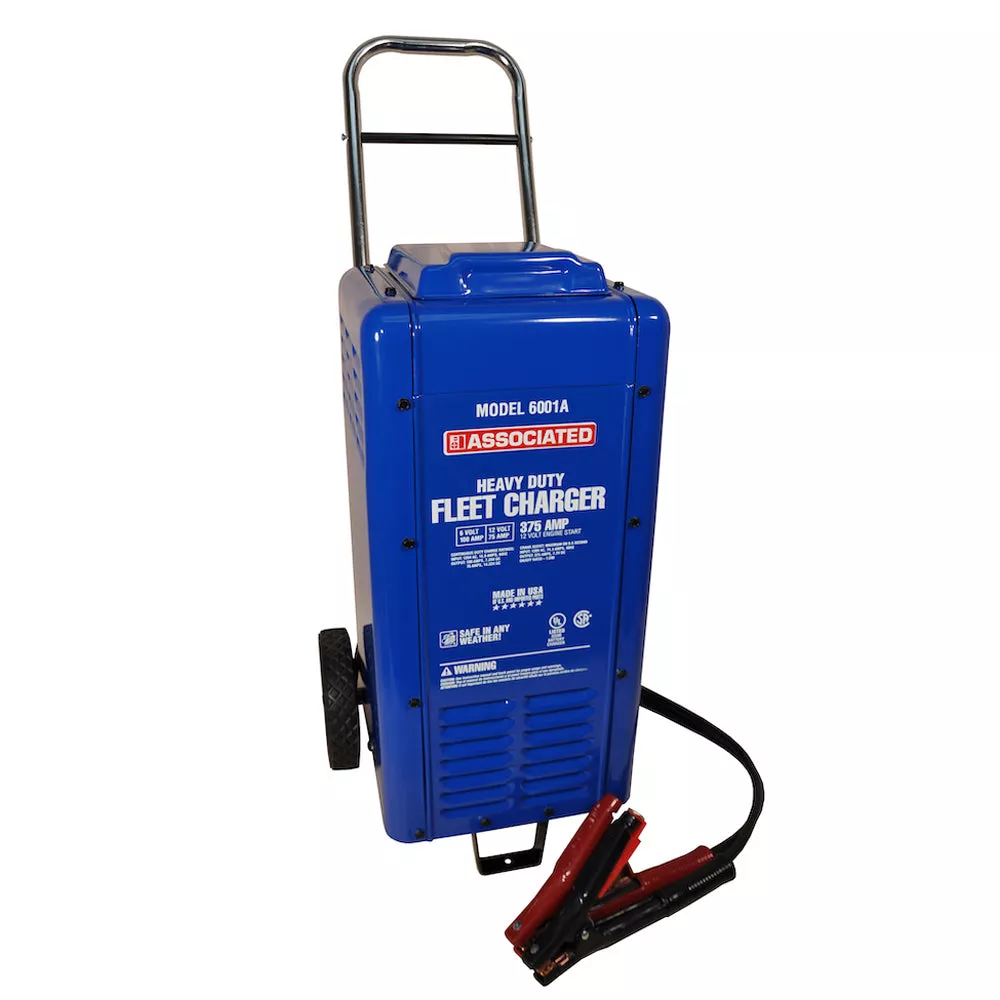

Associated 6001A 6/12V Heavy Duty Fleet Charger
Continuous Charge Rates – 100A, 75A
375 Amp Crank Assist
16 Charge Rate Settings Available
Associated Wheel Chargers are “Safe in Any Weather” with clamp bars for extra safety. Associated chargers are made with powder-coated steel enclosures, chrome tubular handles, 100% copper cable with flexible insulation (cold weather application), steel foot, and copper jaws on insulated steel clamps.
– Fan cooling mechanism prevents overheating and extends product life
– Heavy duty vacuum impregnated transformer to seal the unit against external agents
– Patented multi-diode rectifiers
– 500 Amp Fully Insulated Clamps with Flexi-Spring strain relief
– Patented “Stop/Go” Light to check polarity before connecting clamps
– Automatic reset AC and DC circuit breakers
– Automatic electric timer
– “Safe in any Weather” design
– Two-Year “Bumper-to-Bumper” Manufacturer’s Warranty and Five-Year Limited Warranty for Transformer/ Rectifier
– DOE Compliant and Energy Efficient
– Made in USA of US and Global Components
– Protective gauge cover
– Rugged 7″ tires
Specifications
Continuous Charging Rate: 100A @ 6V, 75A @ 12V
Crank Assist: 375A
Operating Charging Voltage: 6V / 12V
Battery Types: Lead-Acid Flooded Cell
Indoor/Outdoor Rated: Yes
Polarity Indicator: Yes
DC Cables: 8 ft, 4AWG copper
DC Clamp: 500A, Insulated Copper Jaw
AC Input: 120 VAC (nominal)
AC Cord: 10 ft, 14-3, Grounded North American Plug
Weight: 58 lbs
Length: 17.25″
Width: 16.5″
Height: 30″
Information Downloads
Operator Manual
Addendum
