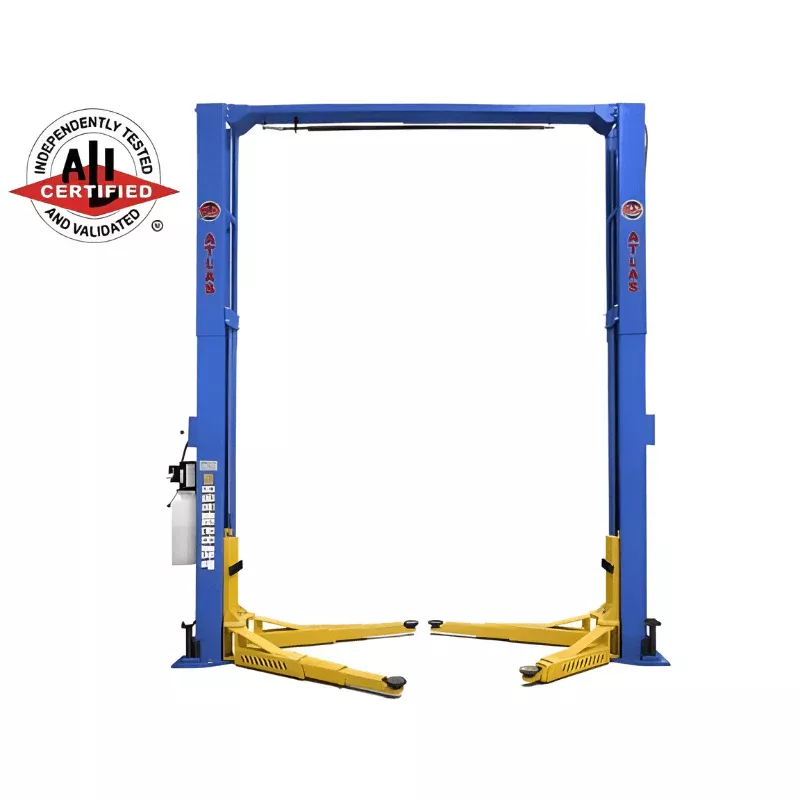

Atlas PVL12 ALI Certified 12,000 lb Overhead 2-Post Lift

The Atlas Platinum PVL12 is a heavy-duty, ALI-certified 2-post lift designed for professional shops that require strength, flexibility, and reliable performance. With a 12,000 lb lifting capacity, it is built to handle a wide range of vehicles, from passenger cars to long wheelbase trucks, vans, and commercial vehicles.

This lift features an extra tall and extra wide design, providing the clearance and space needed for larger vehicles. The adjustable height options allow it to be configured based on ceiling requirements, while the low pad height ensures compatibility with both low-profile cars and larger trucks.

Equipped with 3-stage symmetric arms, the PVL12 offers excellent reach and balanced lifting. Automatic arm restraints, padded shut-off bar, and thick rubber door guards help protect both the vehicle and operator during use. The direct-drive hydraulic cylinders provide smooth, consistent lifting performance with fewer moving parts.

Built for durability and long-term use, the lift includes a premium ALLY power unit, certified for electrical compliance and designed to maintain consistent torque while reducing heat buildup. Its reinforced structure and wide column spacing make it ideal for servicing larger vehicles with ease.

Key Features

ALI certified lift
12,000 lb capacity
Commercial-grade construction
Extra tall and extra wide design
Adjustable height options (165″ or 177″)
3-stage symmetric arms
Automatic arm restraints
Padded shut-off bar for vehicle protection
Thick rubber door guards on carriages
Single-point lock release
Direct-drive hydraulic cylinders
Powder coat finish
Free 8-piece truck adapter set included
Premium ALLY power unit (MET certified)
Mounting hardware included

Documents

• Manual
