SKU: 202-302-2464 / UPC: Not Listed

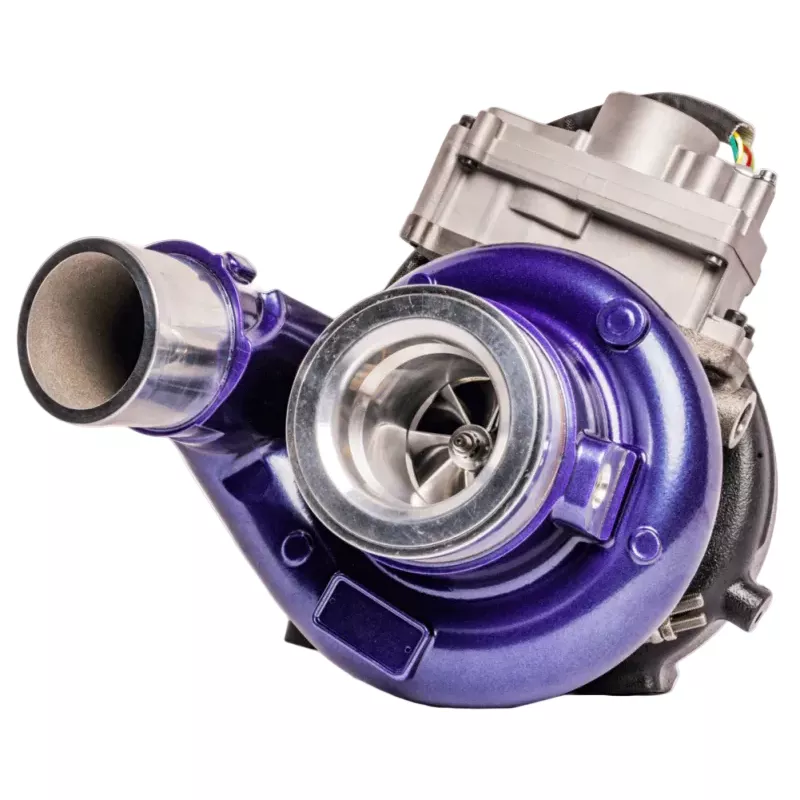

ATS Diesel Aurora 3000 Stage 1 Turbocharger for 20192024 Ram 2500/3500/4500/5500 6.7L Cummins
The ATS Diesel Aurora 3000 Stage 1 Turbocharger is a direct bolt-on upgrade for 20192024 Ram trucks equipped with the 6.7L Cummins diesel engine.
This performance turbo features a larger billet compressor wheel and an Inconel mixed-flow turbine wheel, delivering significantly faster spool-up, improved throttle response, and the ability to support over 600 horsepower.
Designed as a drop-in replacement for the factory turbo, it maintains excellent drivability while offering substantial power gains for towing, daily driving, and performance applications.
Key Features
- Billet Compressor Wheel 60mm inducer / 83mm exducer design for faster spool-up and reduced turbo lag
- Inconel Turbine Wheel 80mm mixed-flow wheel in .88 A/R housing for excellent flow and heat resistance
- 360-Degree Thrust Bearing Supports up to 55+ PSI of boost with improved durability
- Direct Bolt-On Design Matches OEM mounting points, flanges, and electronics with no modifications required
- Improved Throttle Response Quicker spool and better low-end response compared to stock
- EPA Compliant Meets emissions standards while unlocking significant performance gains
Specifications
| Detail | Value |
|---|---|
| Brand | ATS Diesel |
| Type | Aurora 3000 Stage 1 Turbocharger |
| Compatibility | 20192024 Ram 2500/3500/4500/5500 6.7L Cummins |
| Compressor Wheel | 60mm Billet (9-Blade) |
| Turbine Wheel | 80mm Inconel Mixed-Flow |
| Max Horsepower Support | 600+ RWHP |
| Max Boost | 55+ PSI |
| Country of Origin | United States |
| Warranty | 2-Year Unlimited Mileage Warranty |
Whats Included
- ATS Aurora 3000 Stage 1 Turbocharger
- All Necessary Gaskets and Hardware
- Installation Instructions
Product Notes
- Direct replacement for the factory turbo no modifications required
- Best performance achieved when paired with upgraded fueling and tuning
- Professional installation recommended
This Part Fits
| Year Range | Make | Model | Notes |
|---|---|---|---|
| 20192024 | Ram | 2500 6.7L Cummins | Pickup |
| 20192024 | Ram | 3500 6.7L Cummins | Pickup |
| 20192024 | Ram | 4500 6.7L Cummins | Cab Chassis |
| 20192024 | Ram | 5500 6.7L Cummins | Cab Chassis |
Why Choose ATS Diesel?
- Industry leader in high-performance Cummins diesel upgrades
- Precision-machined components built for extreme durability
- Engineered and tested for real-world towing and performance applications
- Proven reliability in both street and competition diesel trucks
Frequently Asked Questions
- Q: Will this turbo fit my 2022 Ram 3500 6.7L Cummins?
- A: Yes, it is a direct bolt-on for all 20192024 Ram 2500, 3500, 4500, and 5500 models with the 6.7L Cummins engine.
- Q: How much power can this turbo support?
- A: The Aurora 3000 Stage 1 is capable of supporting over 600 rear-wheel horsepower with proper supporting modifications and tuning.
- Q: Is this a variable geometry turbo?
- A: Yes. It retains the factory VGT actuator for excellent low-end response and boost control.
- Q: Do I need to tune the truck after installing this turbo?
- A: While not required for basic operation, tuning is highly recommended when running higher boost levels or adding supporting modifications.
Shipping & Handling
- Method: UPS Ground
- Availability: In stock ships same or next business day
- Packaging: Secure foam-insulated box (24″ x 18″ x 16″)
- Weight: 32 lbs (product)
