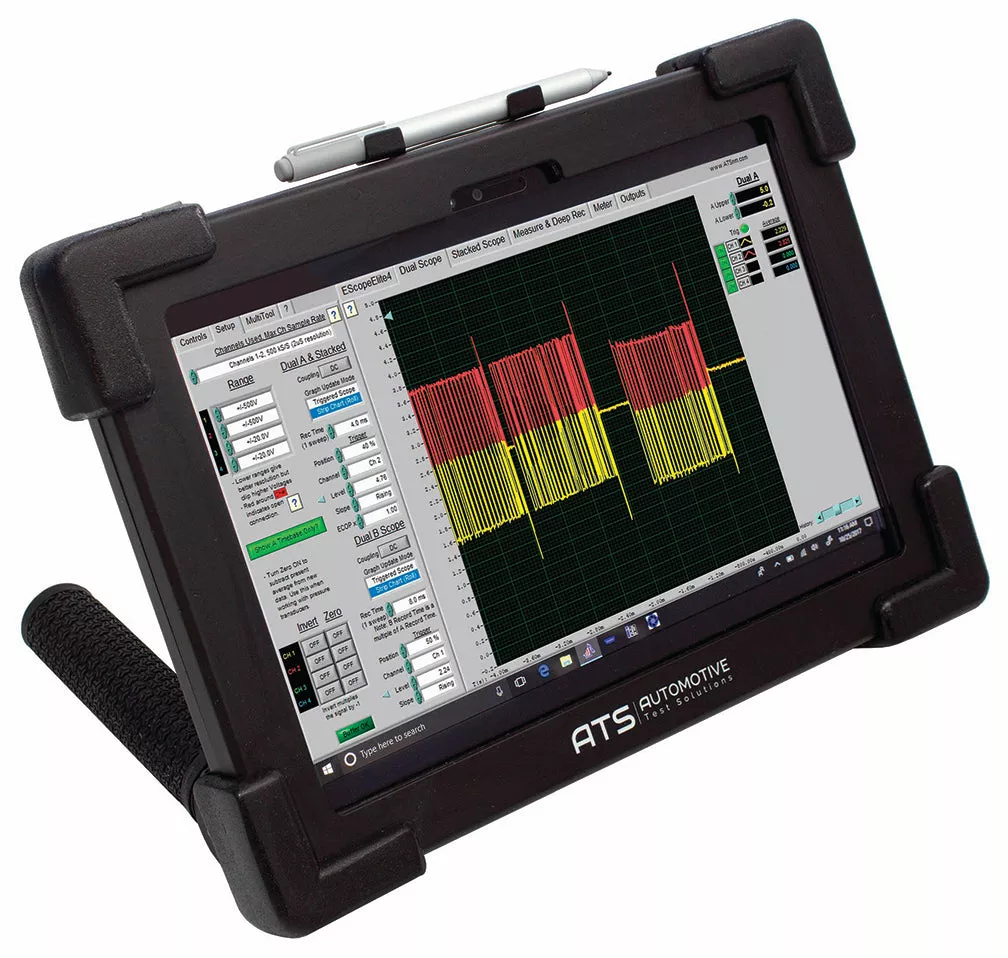

Experience the eSCOPE ELITE4, a sophisticated 16-bit, 4-channel dual time-based oscilloscope bundled with a complete accessory kit:
Highlighted Features:
- Data Integrity: ATS’ circular buffer system ensures seamless data capture without any gaps, providing a comprehensive view of vehicle events.
- Precision Waveforms: Enjoy accurate and clean signal representation, eliminating the need for masking filters.
- Dual Time Base: Simultaneously display two frequencies on one screen with separate triggers, akin to having two scopes in one.
- Pull Down Circuit: Control circuits like ignition coils and fuel injectors with a controlled pulse that sinks power from vehicle circuits to ground.
- TTL Output: Output a 0-5V square wave signal to activate devices such as ignition coil drivers and test vehicle circuits.
- Automatic Test Lead Connection Detection: Easily identify good or bad connections with color-coded indicators for seamless troubleshooting.
- No Setup Required: With the powerful Deep Record function, grab extensive data without setup and manipulate waveforms effortlessly.
- Automatic Voltage Attenuator: Let the scope handle voltage adjustments automatically for hassle-free operation.
- Pressure Transducer Support: Drive up to four pressure transducers simultaneously with full pressure/vacuum conversions.
- Patented Overlay Technology: Overlay an engine cycle grid over waveforms for enhanced analysis, particularly useful with pressure transducers.
eSCOPE ELITE4 Specifications:
- Channels: 4 traces with separate colors for easy identification.
- A/D Vertical Converter Resolution: 16 bit, offering fine voltage resolution over a large range.
- Maximum Scope Throughput: 1 Mega samples per second.
- Voltage Attenuator: Software-selectable attenuator up to +/-500V.
- Display Modes: Dual Screen, Single Screen, Stacked Scope, Measure and Deep record, and Meter.
- Deep Record Mode: Record data effortlessly without setup and manipulate waveforms as needed.
- Pressure Transducer: Drive four pressure transducers simultaneously with full conversions.
- Ignition Analyzer: Includes comprehensive software for ignition analysis.
- PC Compatibility: Compatible with any Windows-based PC.
- Power Requirements: Powered via PCs USB connector.
- USB Connection: Supports USB 2.0 or USB 3.0.
- Scope Storage: Unlimited storage of waveforms and settings.
- Support: Built-in help features plus U.S.-based customers receive live one-on-one log-in support.
Surface Pro 7 Tablet Specifications:
- Operating System: Windows 10 Home 64-bit Operating System
- Processor: Quad-core 10th Gen Intel Core i5-1035G4 Processor
- Hard Drive: 128 GB solid-state drive
- Graphics: Intel Iris Plus Graphics
- Security: Firmware TPM, Enterprise-grade protection with Windows Hello face sign-in
- Memory: 8GB RAM
- Wireless: Wi-Fi 6: 802.11ax compatible Bluetooth Wireless 5.0 technology
- Ports: Full-size USB 3.0
- Screen: 12.3 PixelSense Display
- Cameras: 5.0MP front-facing camera with 1080p full HD video, 8.0MP rear-facing autofocus camera with 1080p full HD video
- Audio: Dual far-field Studio Mics, 1.6W stereo speakers with Dolby Audio
- Sensors: Ambient light sensor, Accelerometer, Gyroscope, Magnetometer
- Surface Pen: Bluetooth 5.0 wireless technology
- Screen Protection: 9H hardness, crystal clear tempered
- Warranty: 1-year limited hardware warranty
