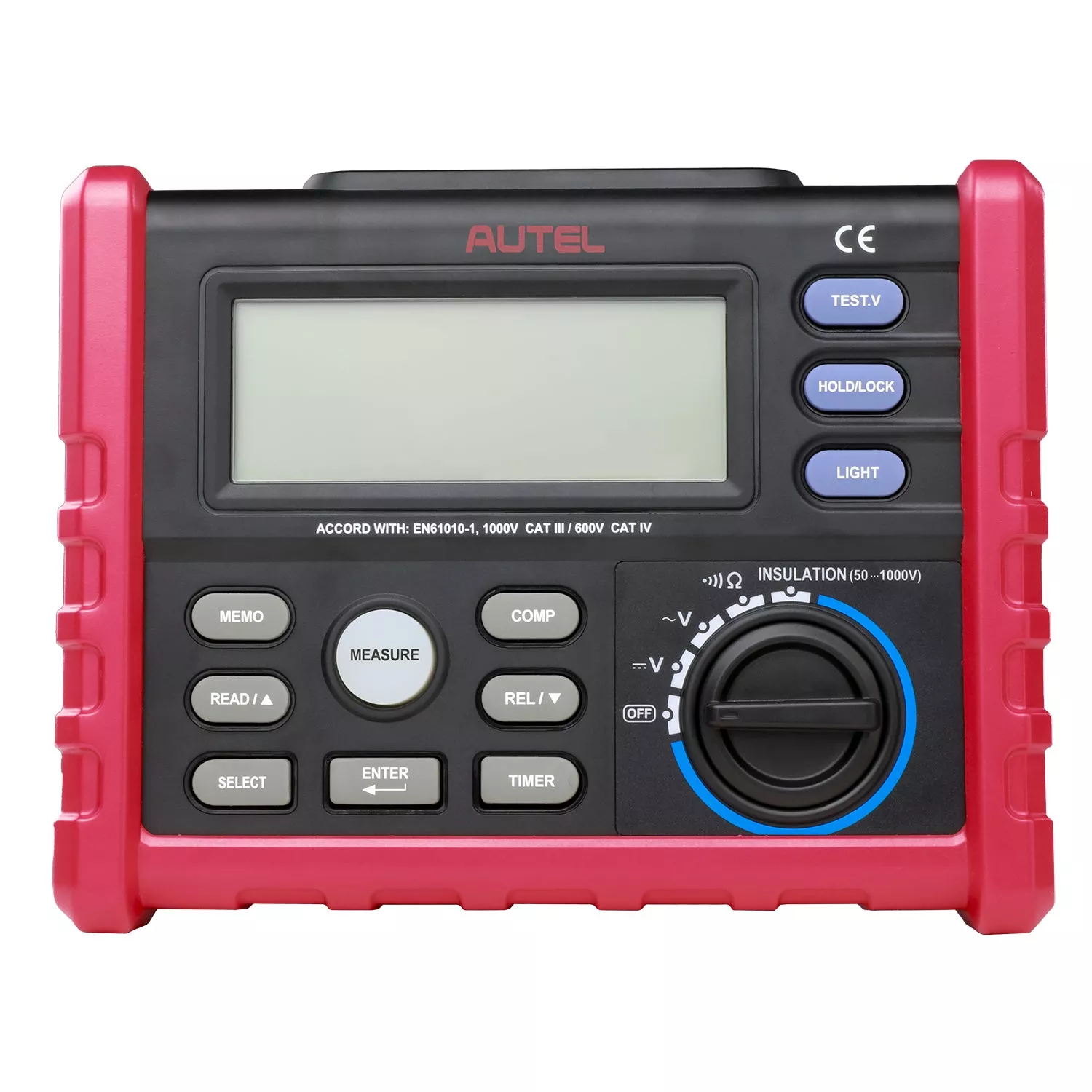

The MaxiEV ITS100 is an essential tool for any workshop or facility working with high-voltage electric vehicles.
Designed to provide accurate insulation resistance measurements, this tester ensures safety and reliability during EV maintenance and repairs. Capable of testing up to 1000V for both AC and DC systems, the ITS100 helps identify isolation faults, shorts, and more across various vehicle components, including stator windings and high-voltage wiring. It offers three measurement modesrelative, timely, and continuityallowing mechanics to tailor the testing process to their needs.
Easy To Read Visual Data Display
The ITS100 helps technicians make informed decisions quickly. It is designed with an automatic power-off function to conserve battery life and is built to comply with IEC/EN 61010-1 standards, ensuring safe and accurate operation. Whether performing post-repair checks or diagnosing faults, the MaxiEV ITS100 is your go-to megohmmeter for high-voltage EVs.
Features:
Maximum test voltage of 1000V (DC) and 750V (AC) for thorough insulation checks.
Complies with IEC/EN 61010-1 1000V CAT , 600 V CAT safety standards.
High accuracy of resistance measurement ensures reliable diagnostics.
Visualized data display for easy interpretation of test results.
Three modes: relative, timely, and continuity testing.
Automatic power-off function to save battery power.
Discharges capacitors and identifies isolation faults and shorts.
Tests high-voltage components such as stator windings.
Compact and lightweight design for easy handling and portability.
Specifications:
| Insulation Resistance Range | 0.01M ~ 10.00G |
| Insulation Test Output Voltage | 50V, 100V, 250V, 500V, 1000V |
| Resistance Test Range | 0.01 ~ 200 |
| DC Voltage Test Range | 0.1 ~ 1000V |
| AC Voltage Test Range | 0.1V ~ 750V |
| Dimensions | 180 x 140 x 65mm |
| Weight | 0.9kg |
