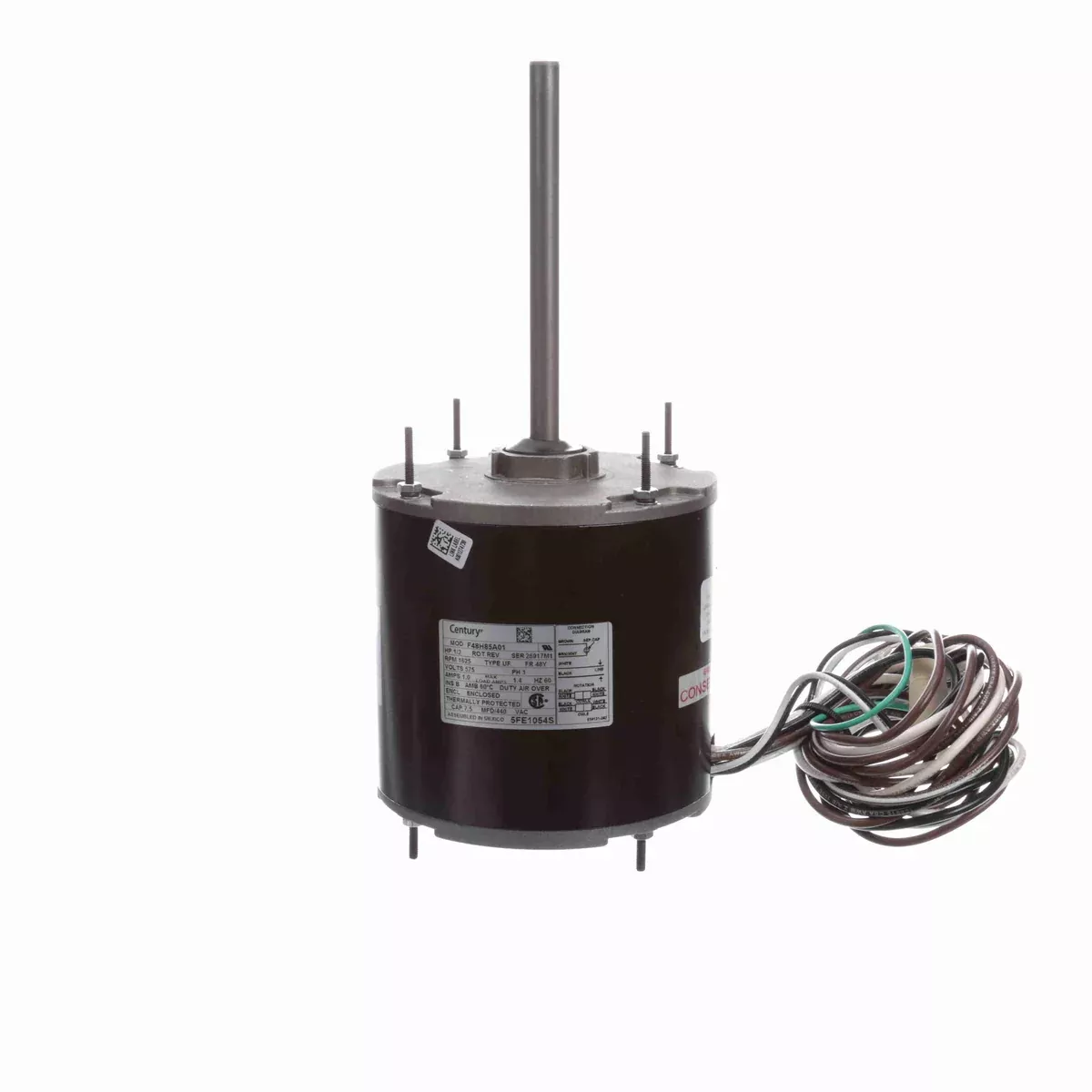

Century 5FE1054S 5.6″ Diameter HVAC Condenser Fan Motor – 5FE1054S

Original price was: $247.01.Current price is: $142.62.

Sale!
SKU: 5FE1054S Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/2
  • RPM: 1625
  • Volts: 575
  • Amps: 1
  • Hz: 60
  • Phase: 1
  • Frame: 48Y
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting: Band/Ring/Stud
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Shaft Length: 6-1/2″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 60° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 7.5MFD @ 440VAC Required
  • 5FE1054S is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 9425, A.O. Smith F48H85A01, Universal Electric 9425, Universal Electric HF2J043, Universal Electric HF2J7043
  • Has Reversing Plug
  • 1/2″ Hub And Slinger On Shaft End
  • 47″ Leads
  • Energy Efficient
  • Ship Weight: 13 lbs.
