Home » Shop » hot sale » Century 645A 5.6″ Diameter HVAC OEM Replacement Motor – 645A

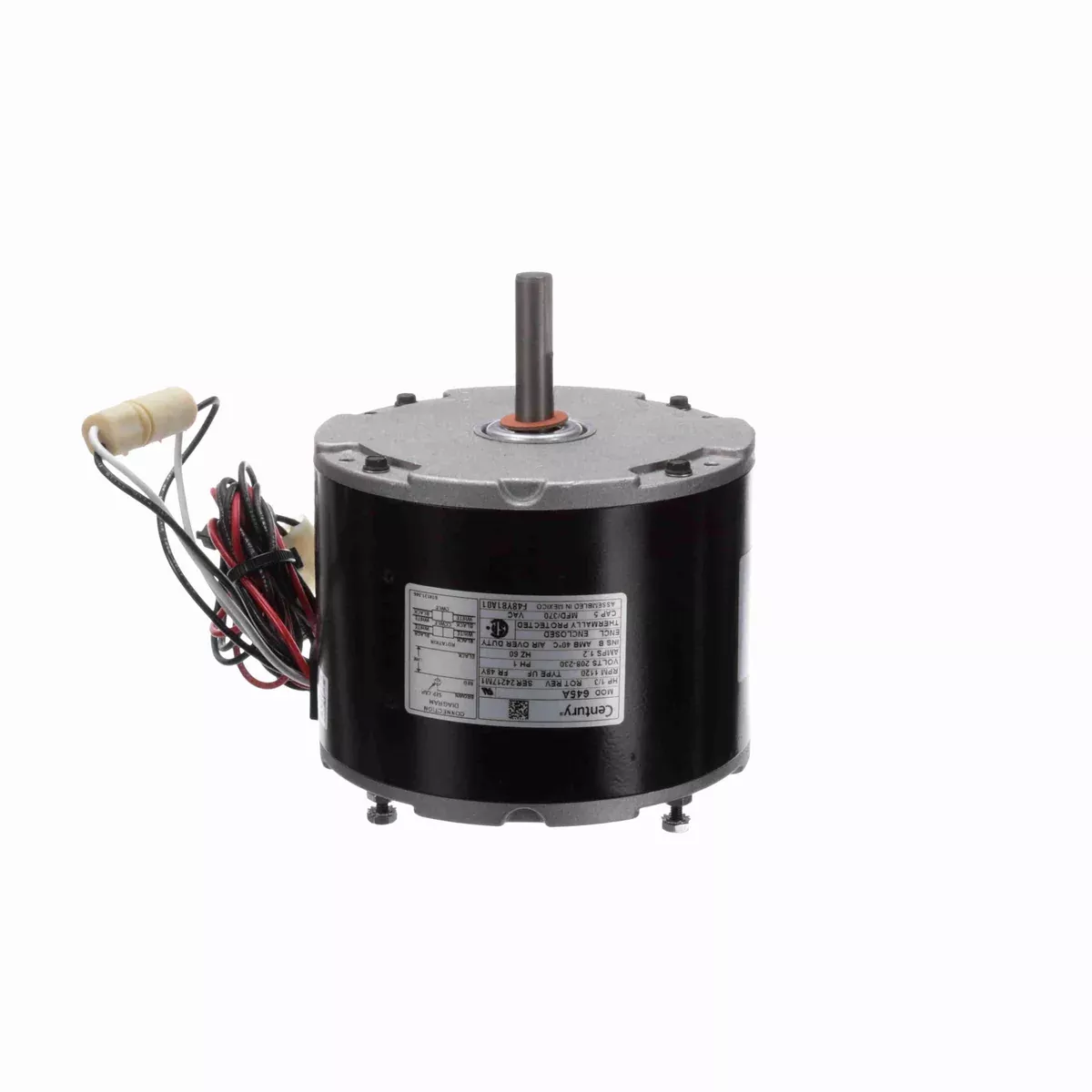

Century 645A 5.6″ Diameter HVAC OEM Replacement Motor – 645A

Original price was: $178.42.Current price is: $121.49.

Sale!
SKU: 645A Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/3
  • RPM: 1120
  • Volts: 208-230
  • Amps: 1.2
  • Hz: 60
  • Phase: 1
  • Frame: 48Y
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting: Band/Stud
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Shaft Length: 2″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Sleeve
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 5MFD @ 370VAC Required
  • 645A is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith F48SQ6V59X2, A.O. Smith 645, A.O. Smith F48Y81A01, Emerson K55HZMJA4231, Emerson KA55FYEPZZ998, Heil Quaker/ICP 1050703, Heil Quaker/ICP 1054573, Heil Quaker/ICP 106494, Universal Electric HE3G296, Universal Electric HE3G341, Universal Electric HE3G394, Universal Electric HE3G412
  • Includes Lead And Plug Assembly
  • Includes Reversing Plug
  • Ship Weight: 8 lbs.
