Home » Shop » hot sale » Century 785A 5.6″ Diameter HVAC Condenser Fan Motor – 785A

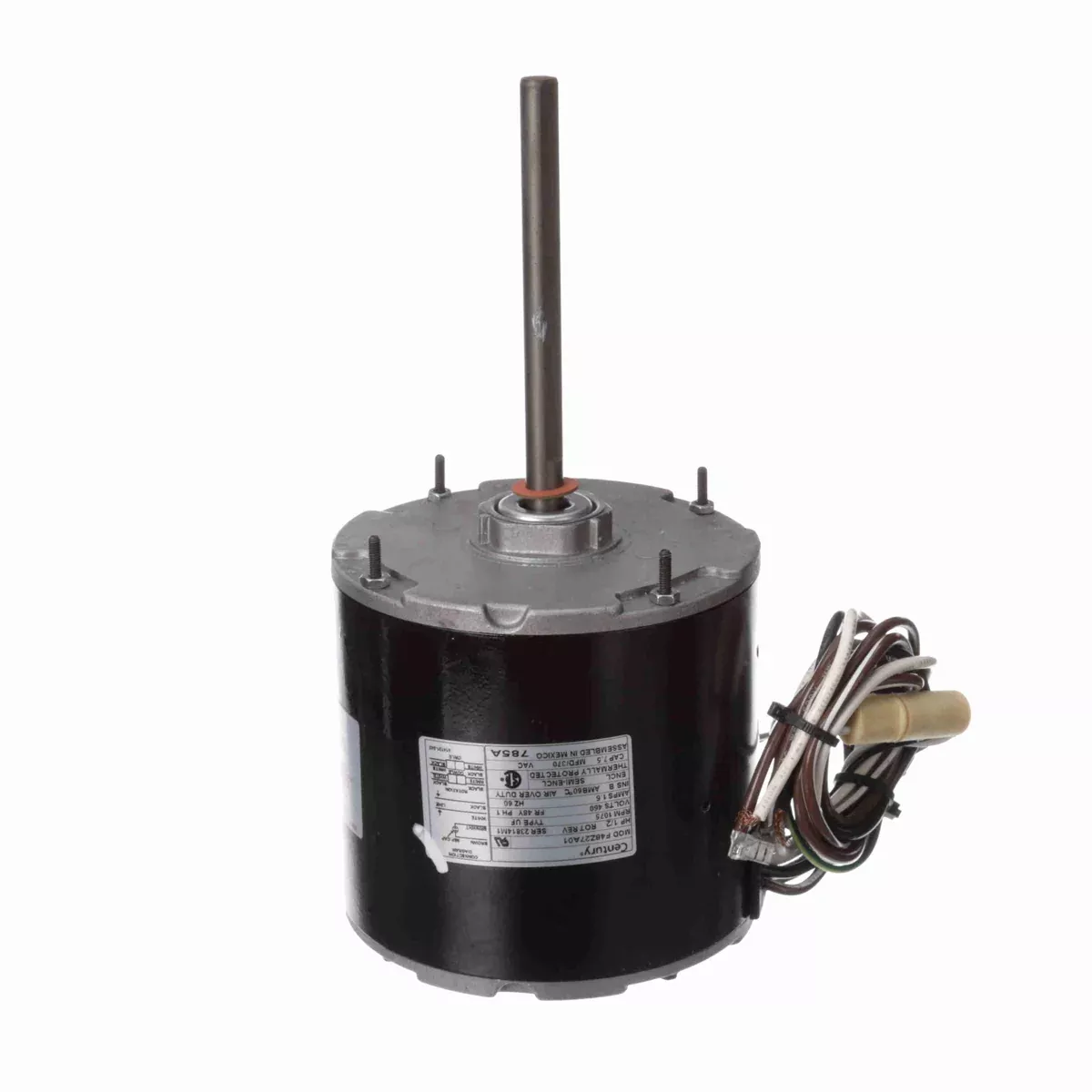

Century 785A 5.6″ Diameter HVAC Condenser Fan Motor – 785A

Original price was: $215.73.Current price is: $169.74.

Sale!
SKU: 785A Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/2
  • RPM: 1075
  • Volts: 460
  • Amps: 1.6
  • Hz: 60
  • Phase: 1
  • Frame: 48Y
  • Enclosure Type: OAO (Open Air Over)
  • Mounting: Band/Ring/Stud
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Shaft Length: 6″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Sleeve
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 60° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 7.5MFD @ 370VAC Required
  • 785A is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 785, A.O. Smith F48Z27A01, A.O. Smith HE3J242, A.O. Smith HE3J7242, Marathon W48A1102017, Universal Electric HE3J7242
  • Has Reversing Plug
  • Has Hex Mounting Hub On Both Ends For Cradle Base Mounting
  • Energy Efficient
  • Ship Weight: 16 lbs.
