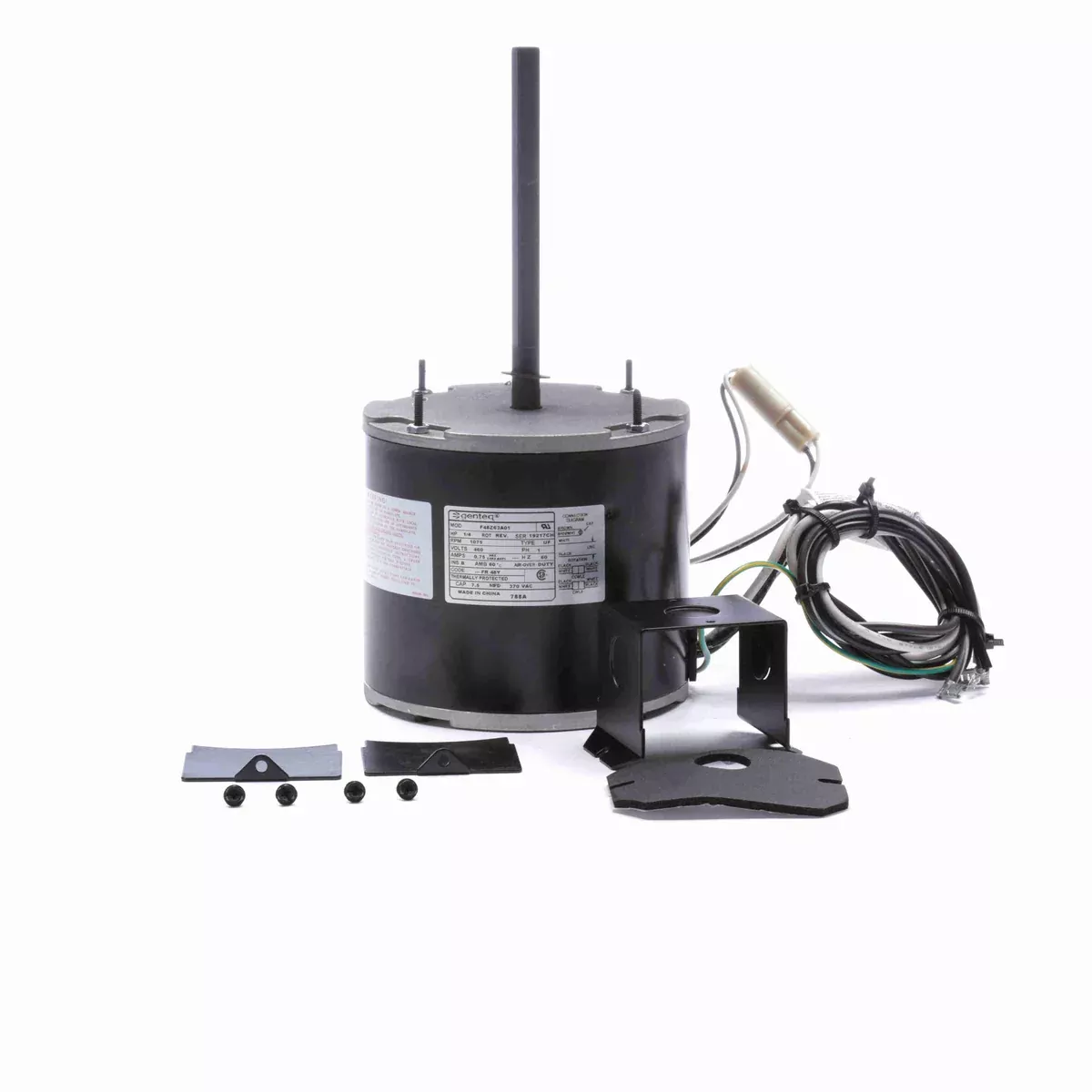

Century 788A 5.6″ Diameter HVAC Condenser Fan Motor – 788A

Original price was: $207.09.Current price is: $149.88.

Sale!
SKU: 788A Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/4
  • RPM: 1075
  • Volts: 460
  • Amps: 0.75
  • Hz: 60
  • Phase: 1
  • Frame: 48Y
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting: Band/Stud
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Shaft Length: 6.06″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 60° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 7.5MFD @ 370VAC Required
  • 788A is listed in Century’s cross reference as a possible substitute for the following: Emerson 3736, GE 3736, Fasco D980, Marathon X456, Carrier/BDP HC37VE460, A.O. Smith 788, A.O. Smith F48Z63A01, Carrier/BDP HC39GE461, Emerson K6838, Trane MOT 6060, Universal Electric HF3H081, Universal Electric HF3H7081
  • Has Reversing Plug
  • Includes Conduit Box, Mounting Screws And Gasket, Shipped Detached
  • No Hubs On Either End
  • 26″ Leads
  • Energy Efficient
  • Ship Weight: 15 lbs.
