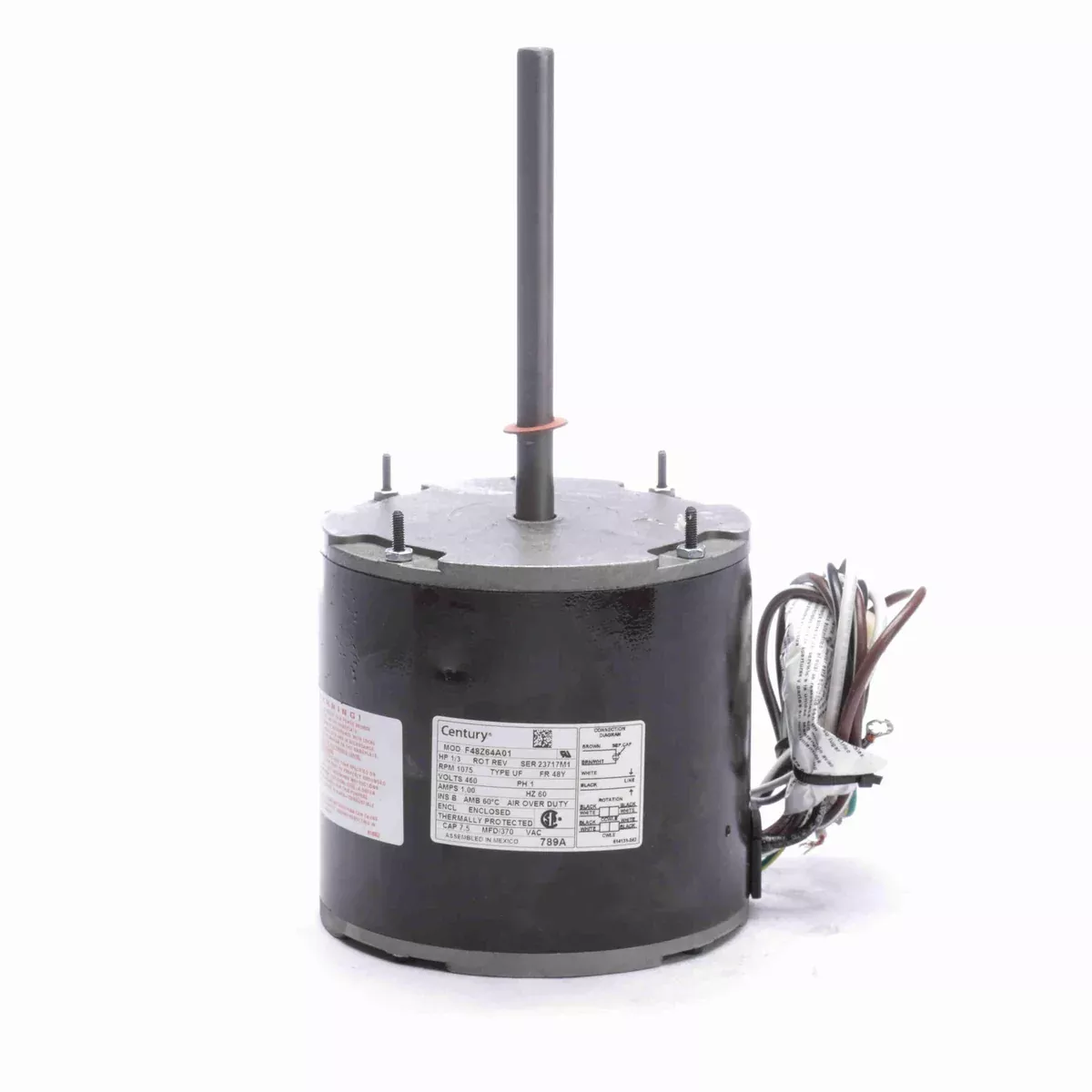

Century 789A 5.6″ Diameter HVAC Condenser Fan Motor – 789A

Original price was: $255.12.Current price is: $164.96.

Sale!
SKU: 789A Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/3
  • RPM: 1075
  • Volts: 460
  • Amps: 1
  • Hz: 60
  • Phase: 1
  • Frame: 48Y
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting: Band/Stud
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Shaft Length: 6.06″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 60° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 7.5MFD @ 370VAC Required
  • 789A is listed in Century’s cross reference as a possible substitute for the following: Emerson 3737, GE 3737, Marathon X457, Carrier/BDP HC38VX460, Carrier/BDP HC42GL460, A.O. Smith 789, A.O. Smith F48Z64A01, Universal Electric HF3H072, Universal Electric HF3J7054, Fasco D912
  • Reversible/Quick Connect Terminals
  • Includes Conduit Box, Mounting Screws And Gasket, Shipped Detached
  • No Hubs On Either End
  • 26″ Leads
  • Energy Efficient
  • Ship Weight: 16 lbs.
