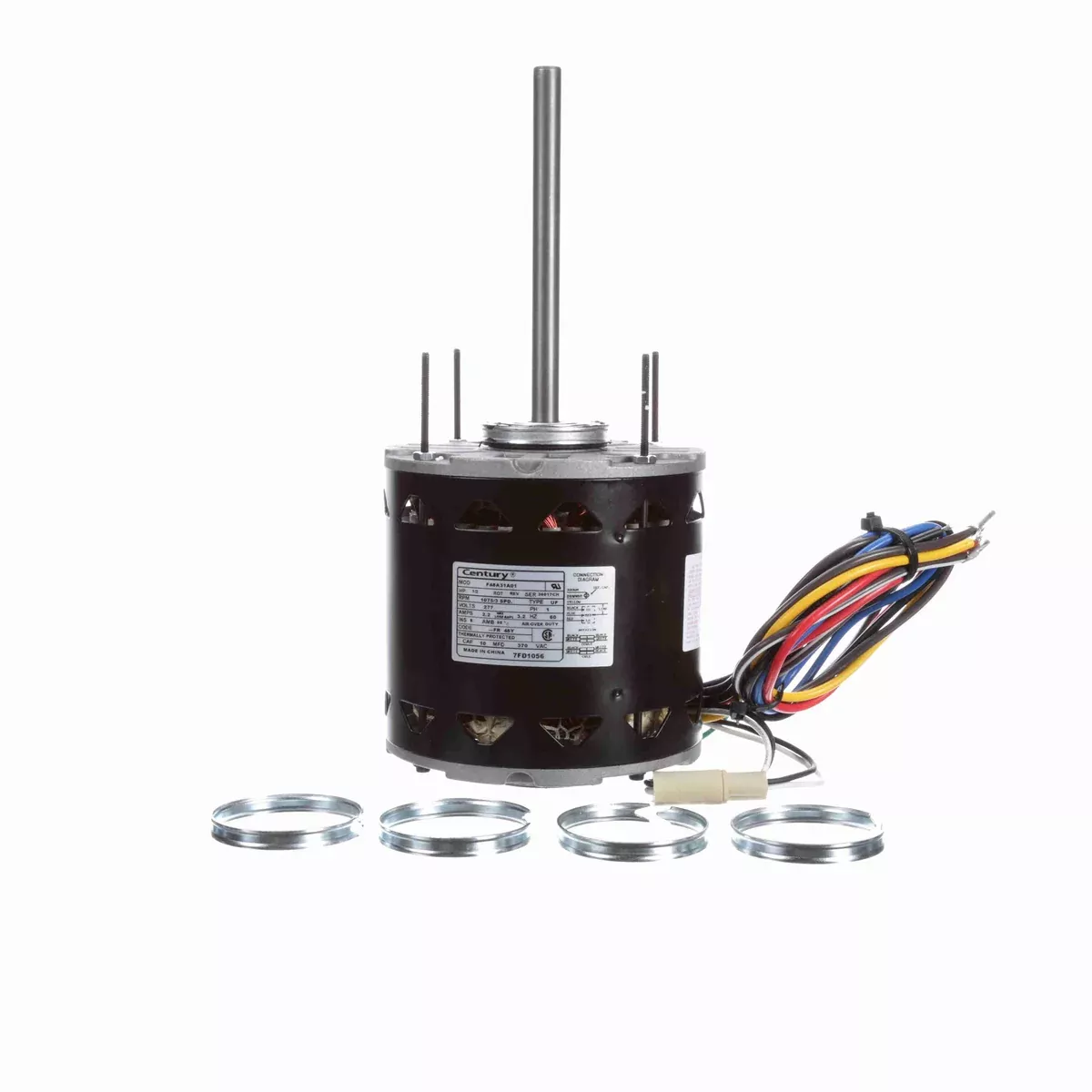

Century 7FD1056 5.6″ Diameter HVAC Direct Drive Fan Motor – 7FD1056

Original price was: $202.89.Current price is: $129.63.

Sale!
SKU: 7FD1056 Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/2
  • RPM: 1075
  • Volts: 277
  • Amps: 2.2
  • Hz: 60
  • Phase: 1
  • Frame: 48Y
  • Enclosure Type: OAO (Open Air Over)
  • Mounting: Band/Ring/Stud
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Shaft Length: 6.44″
  • Rotation: Reversible
  • Number of Speeds: 3
  • Service Factor (SF): 1.00
  • Bearings: Sleeve
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 50° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 10MFD @ 370VAC Required
  • 7FD1056 is listed in Century’s cross reference as a possible substitute for the following: Dayton 3M713, A.O. Smith 9604, A.O. Smith F48A31A01, A.O. Smith F48M50A38, Emerson 602, Fasco D971, Dayton 3M714, Marathon X020, Universal Electric HE3L7161
  • Replaces Fasco model D971
  • Includes Resilient Mounting Rings
  • 23″ Leads
  • Has Reversing Plug
  • Energy Efficient
  • Ship Weight: 18 lbs.
