- Product Type: PSC (Permanent Split Capacitor)
- HP: 1/5, 3/4
- RPM: 1075
- Volts: 277
- Amps: 3.6
- Hz: 60
- Phase: 1
- Frame: 48Y
- Enclosure Type: ODP (Open Dripproof)
- Mounting: Band/Hole/Ring/Stud
- Motor Diameter: 5-5/8″
- Shaft Diameter: 1/2″
- Shaft Length: 5″
- Rotation: Reversible
- Number of Speeds: 4
- Service Factor (SF): 1.00
- Bearings: Ball
- Thermal Protection: Automatic
- Maximum Ambient Temperature: 40° C
- Insulation Class: B
- Duty Cycle: Continuous
- Capacitor: 10MFD/370VAC @ 1/2, 3/4 HP; 5MFD/370VAC @ 208V; 7.5MFD/370VAC @ 230V (Included)
- 7FD6001A is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith F48AE77A01
- Rheem Mounting Holes In Shell
- 36″ Leads
- Energy Efficient
- Ship Weight: 16 lbs.

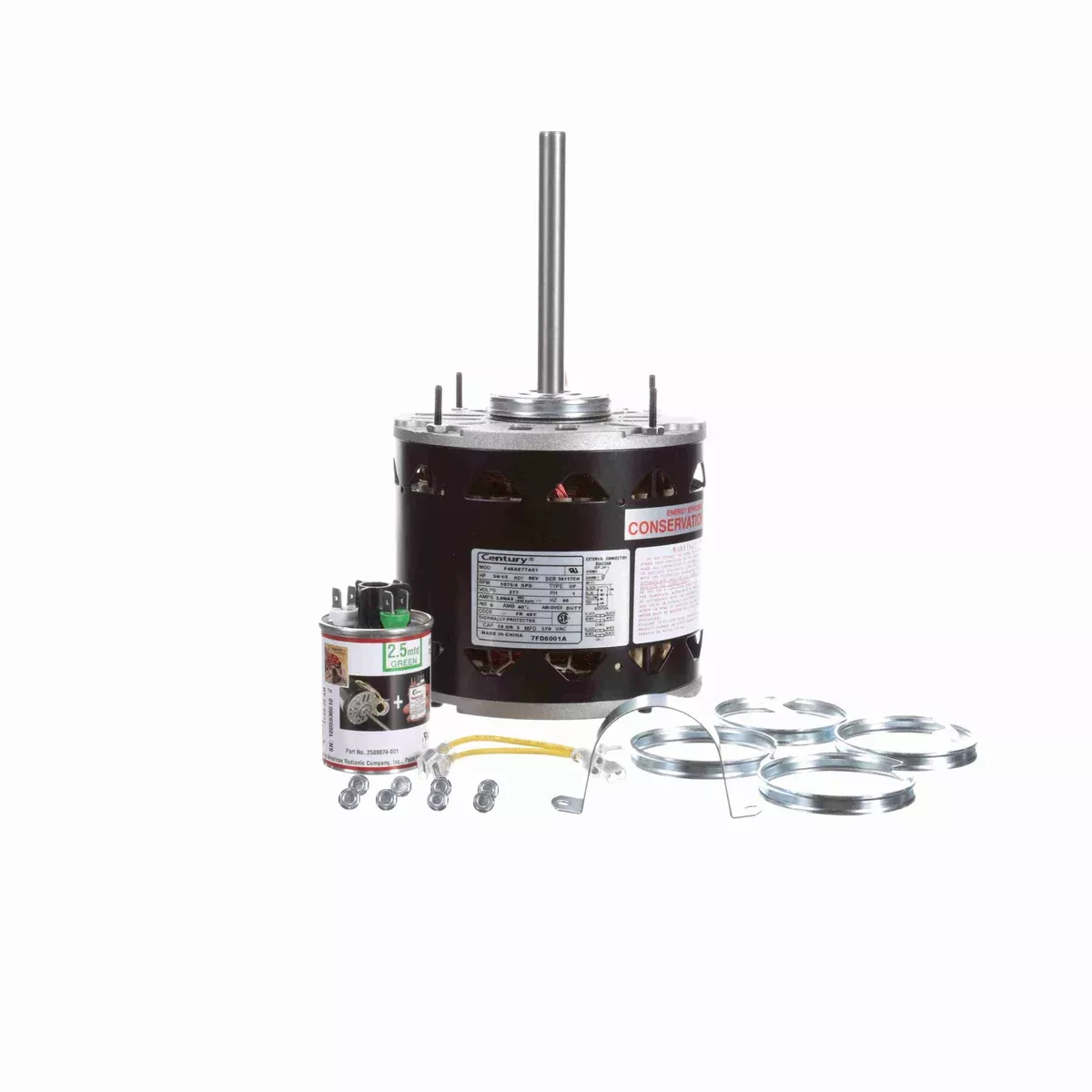

Century 7FD6001A 5.6″ Diameter HVAC Direct Drive Fan Motor – 7FD6001A
Original price was: $150.27.$102.96Current price is: $102.96.
