Home » Shop » hot sale » Century 9405A 5.6″ Diameter HVAC OEM Replacement Motor – 9405A

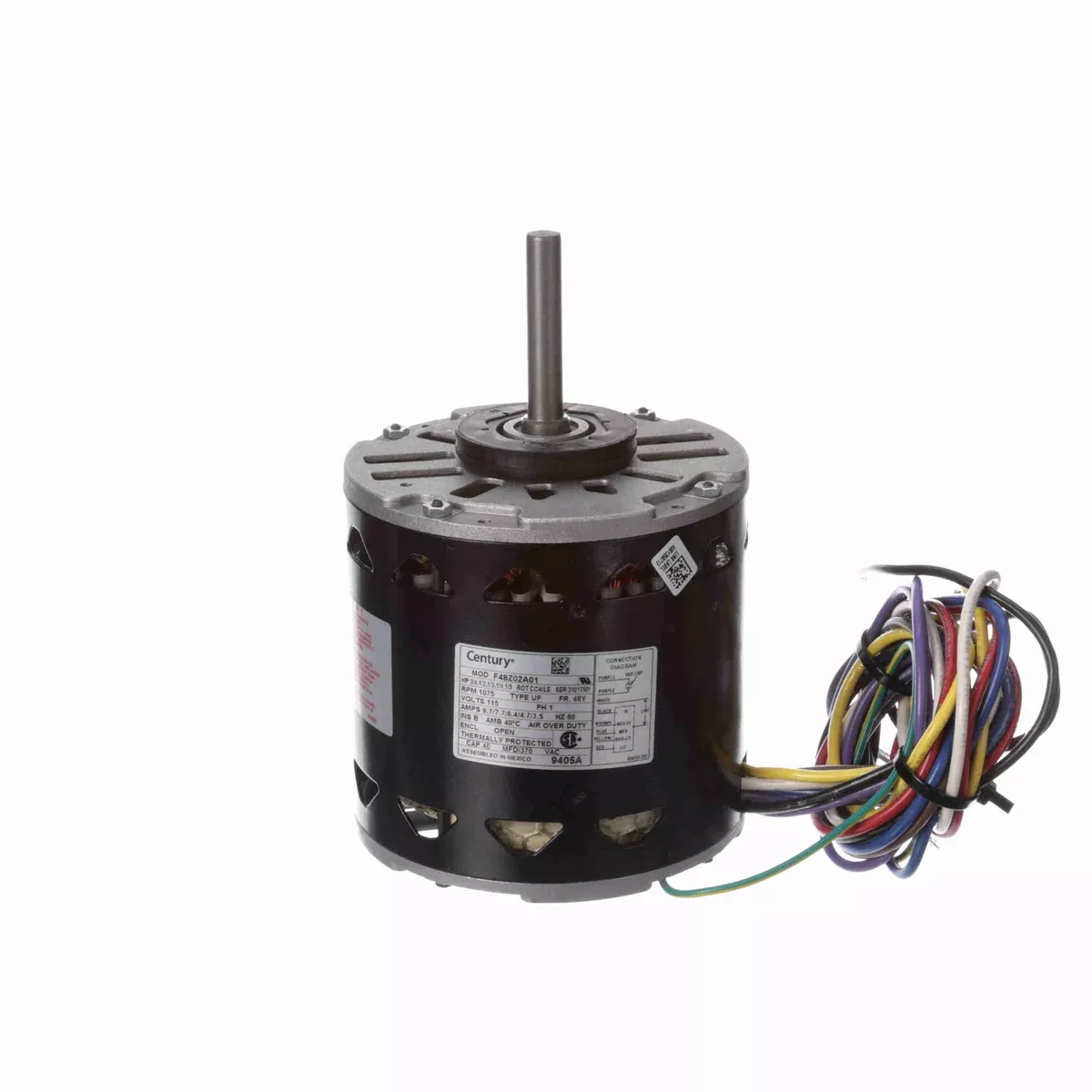

Century 9405A 5.6″ Diameter HVAC OEM Replacement Motor – 9405A

Original price was: $339.18.Current price is: $233.03.

Sale!
SKU: 9405A Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/5, 1/4, 1/3, 1/2, 3/4
  • RPM: 1075
  • Volts: 115
  • Amps: 9.7/7.7/6.4/4.7/3.5
  • Hz: 60
  • Phase: 1
  • Frame: 48Y
  • Enclosure Type: OAO (Open Air Over)
  • Mounting: Band/Ring
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Shaft Length: 3-1/8″
  • Rotation: CW Shaft End
  • Number of Speeds: 5
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 40MFD @ 370VAC Required
  • 9405A is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 9405, A.O. Smith F48L78A45, A.O. Smith F48Z02A01, Emerson K55HXNNZ-7057, Emerson K55HXNNZ7507, GE 5KCP39PGD852AS, Johnstone Supply S88-883, Lennox 28F0101, Universal Electric HF3L7097
  • Ship Weight: 18 lbs.
