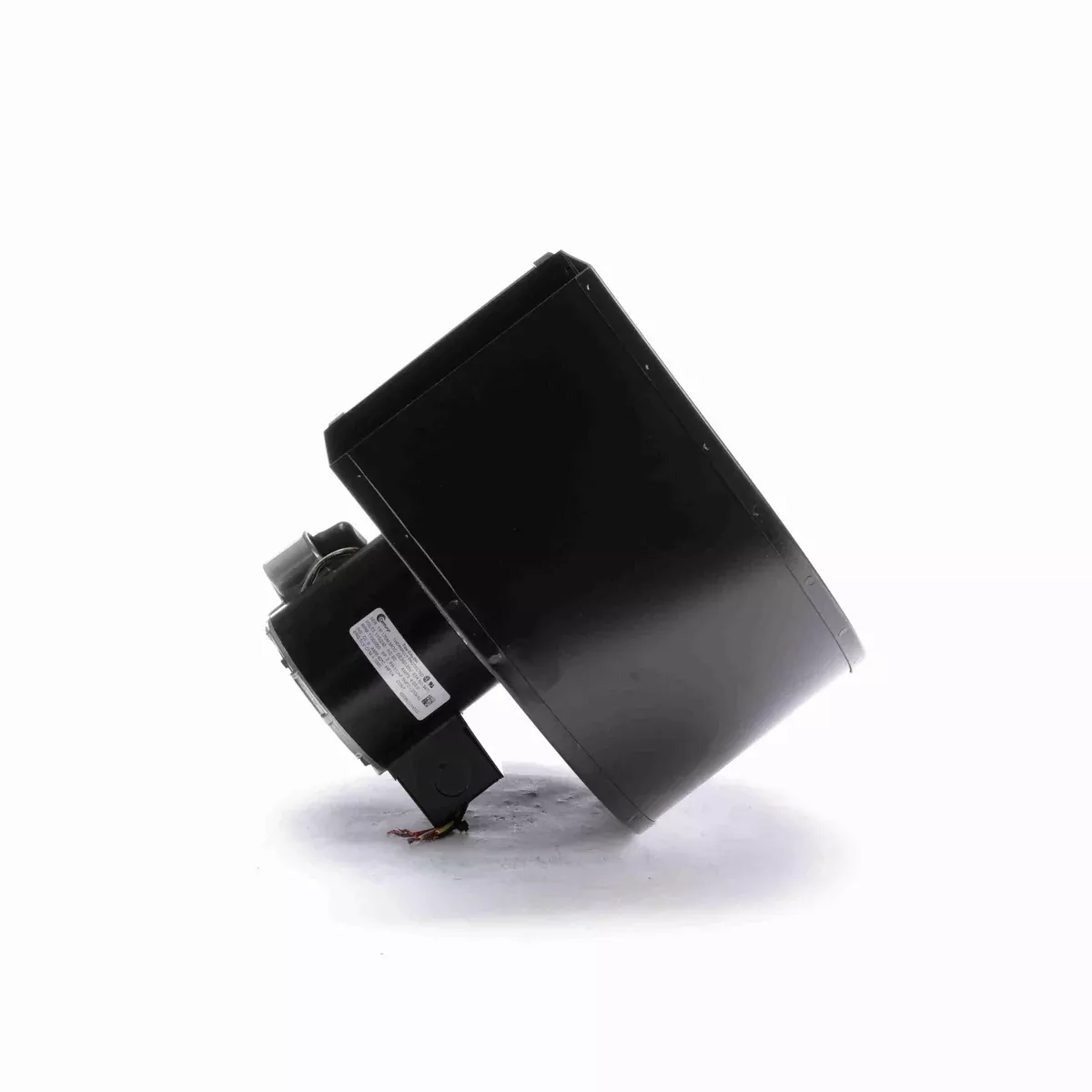

Century 9477 PSC (Permanent Split Capacitor) General Purpose Centrifugal Blower Assembly – 9477

Original price was: $303.04.Current price is: $214.40.

Sale!
SKU: 9477 Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/4
  • RPM: 950/1100
  • CFM: 1000
  • Volts: 115/230
  • Amps: 4/2
  • Hz: 60
  • Phase: 1
  • Frame: 42
  • Enclosure Type: OAO (Open Air Over)
  • Mounting: Hole
  • Motor Diameter: 5″
  • Rotation: CW Shaft End
  • Number of Speeds: 2
  • Service Factor (SF): 1.00
  • Bearings: Sleeve
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 5MFD @ 370VAC (Included)
  • 9477 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith DE3G135, A.O. Smith DE3G3135, Fasco A1000, Universal Electric DE3G6135
  • Ship Weight: 8 lbs.
