- Product Type: Shaded Pole
- HP: 1/12
- RPM: 1050
- Volts: 115
- Amps: 2.9
- Hz: 60
- Phase: 1
- Frame: 42Y
- Enclosure Type: OAO (Open Air Over)
- Mounting: Bracket
- Motor Diameter: 5″
- Shaft Diameter: 1/2″
- Shaft Length: 2-11/16″
- Rotation: CW Shaft End
- Number of Speeds: 1
- Service Factor (SF): 1.00
- Bearings: Sleeve
- Thermal Protection: Automatic
- Maximum Ambient Temperature: 40° C
- Insulation Class: B
- Duty Cycle: Continuous
- 9649 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith DA3E7292, Broan/Nutone 99-08-0178, Fasco 7151-3160, Fasco D1087, Dayton 4M248, Dayton 4ME17, Universal Electric DA3E278
- Has A Molex Terminal Plug
- Ship Weight: 7 lbs.

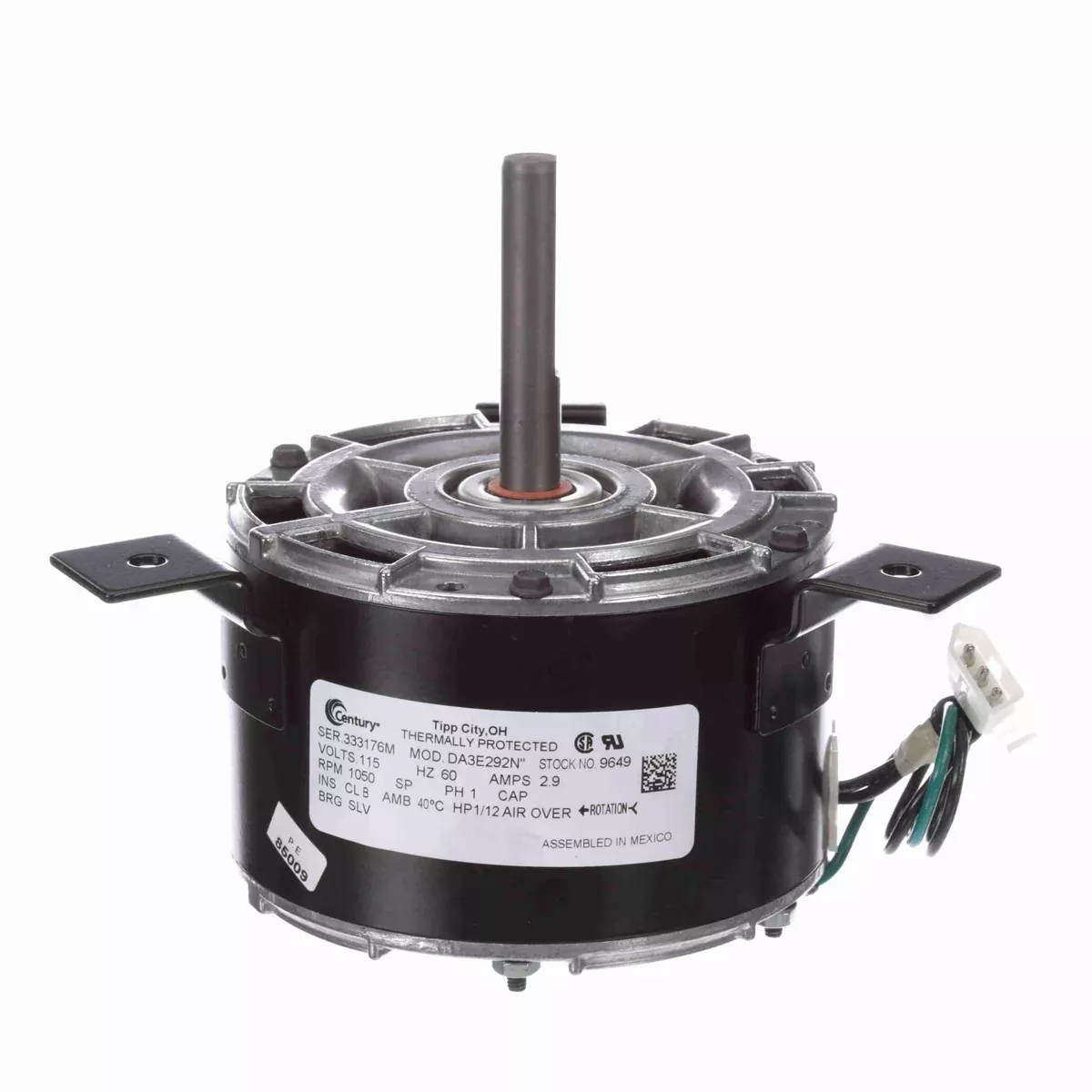

Century 9649 5″ Diameter HVAC OEM Replacement Motor – 9649
Original price was: $127.70.$93.53Current price is: $93.53.
