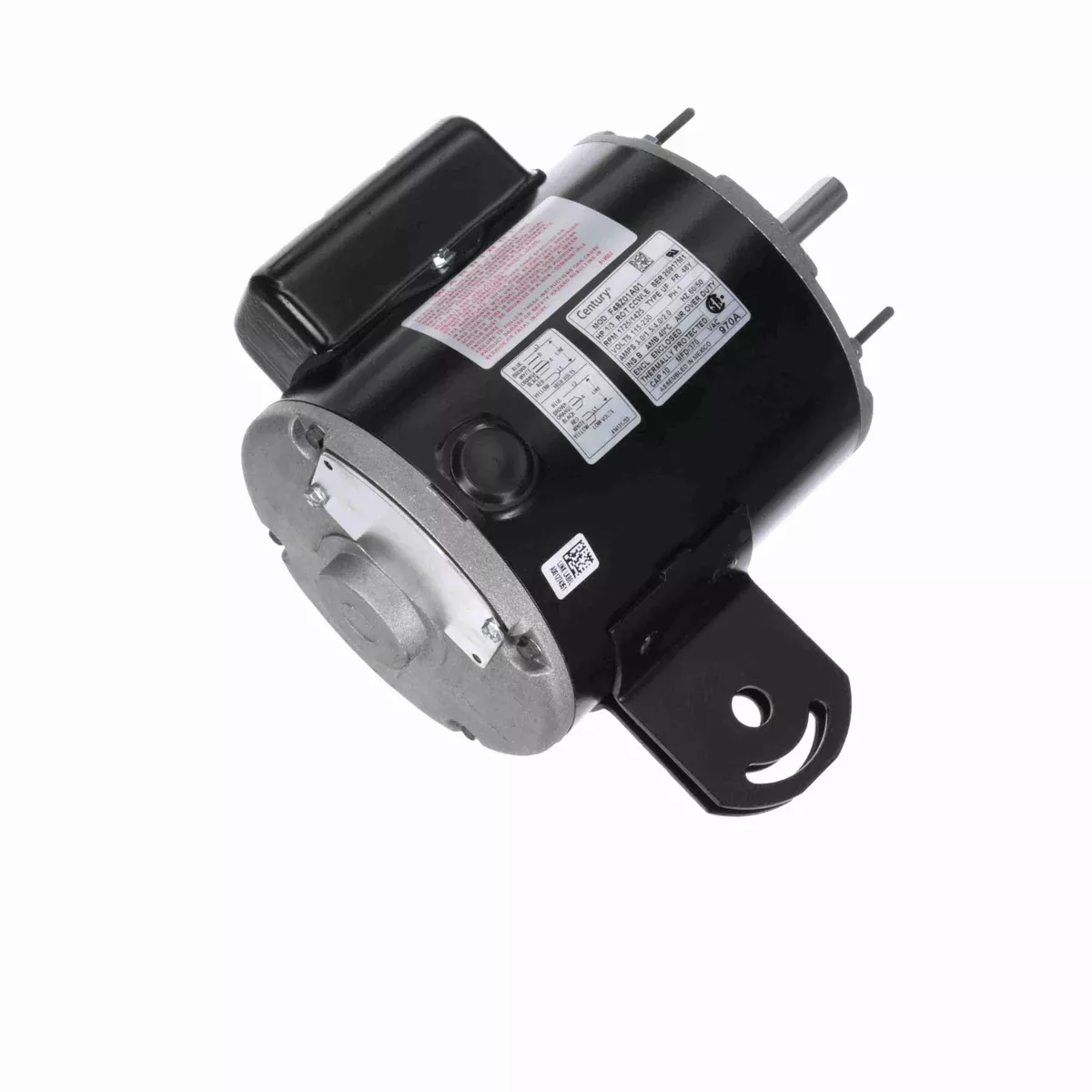

Century 970A 5.6″ Diameter HVAC OEM Replacement Motor – 970A

Original price was: $195.05.Current price is: $155.40.

Sale!
SKU: 970A Category:
Share
  • 970A replaces stock 970
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/3
  • RPM: 1425/1725
  • Volts: 115/230
  • Amps: 3/1.5/4/2
  • Hz: 50/60
  • Phase: 1
  • Frame: 48Y
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting: Ring/Stud/Yoke
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Shaft Length: 2-1/2″
  • Rotation: CW Shaft End
  • Number of Speeds: 2
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 10MFD @ 370VAC (Included)
  • 970A is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 970, A.O. Smith F48Z01A01, Universal Electric HF2J031, Universal Electric HF2J069, Universal Electric HF2J7062
  • Ship Weight: 18 lbs.
