Home » Shop » hot sale » Century 9716 5″ Diameter HVAC Direct Drive Fan Motor – 9716

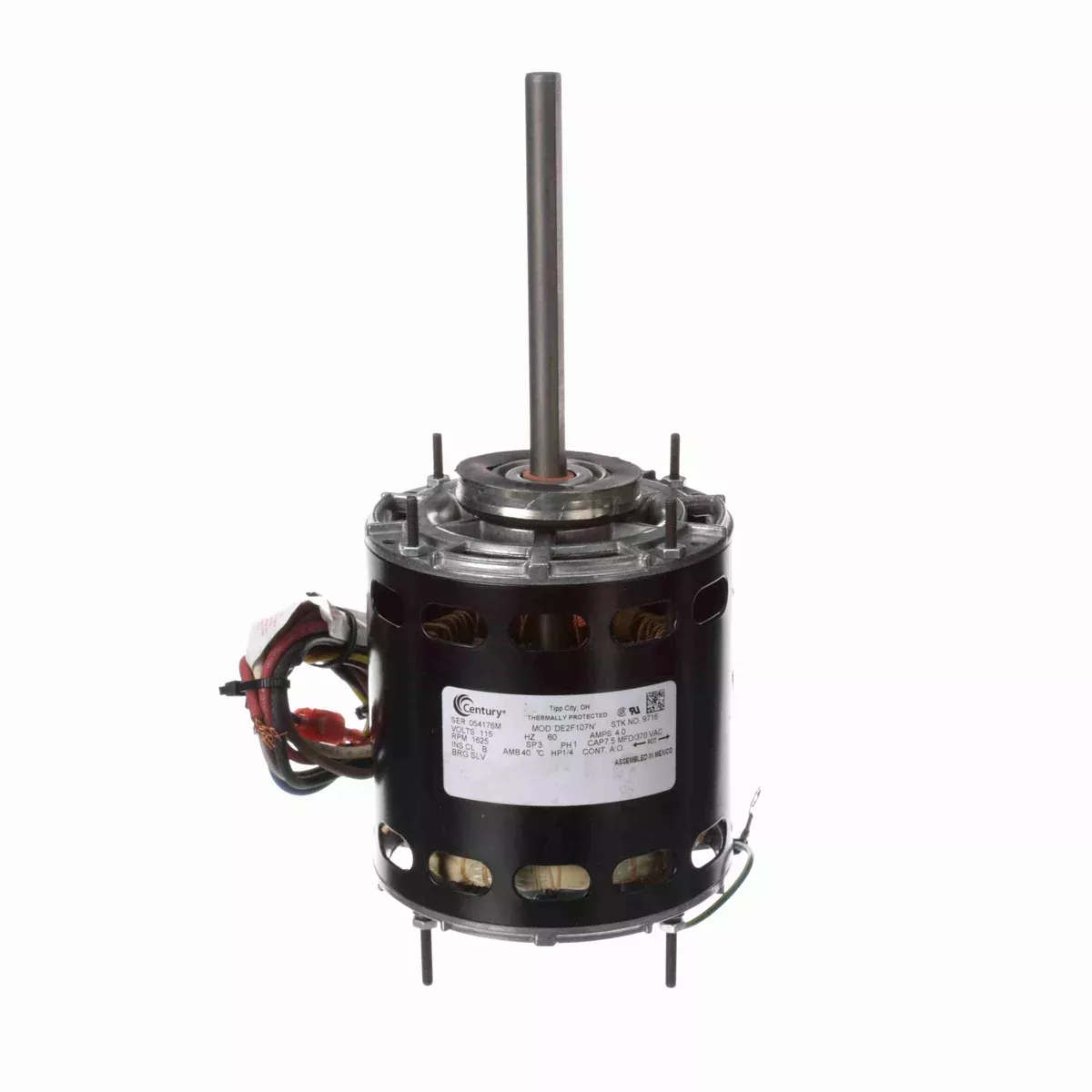

Century 9716 5″ Diameter HVAC Direct Drive Fan Motor – 9716

Original price was: $220.18.Current price is: $142.22.

Sale!
SKU: 9716 Category:
Share
  • Replaced by PEMS 9716. Please see specs for suitability.
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/4
  • RPM: 1625
  • Volts: 115
  • Amps: 4
  • Hz: 60
  • Phase: 1
  • Frame: 42Y
  • Enclosure Type: OAO (Open Air Over)
  • Mounting: Band/Ring/Stud
  • Motor Diameter: 5″
  • Shaft Diameter: 1/2″
  • Shaft Length: 5-3/4″
  • Rotation: Reversible
  • Number of Speeds: 3
  • Service Factor (SF): 1.00
  • Bearings: Sleeve
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 7.5MFD @ 370VAC Required
  • 9716 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith DE2F107, Dayton 4UY20, Dayton 5M057
  • Includes Resilient Mounting Rings
  • 4 Through Bolts On A 4.62″ Diameter Bolt Circle
  • Ship Weight: 14 lbs.
