Home » Shop » hot sale » Century B2855 PSC (Permanent Split Capacitor) 6-1/2″ Diameter Pool & Spa Pump Motor – B2855

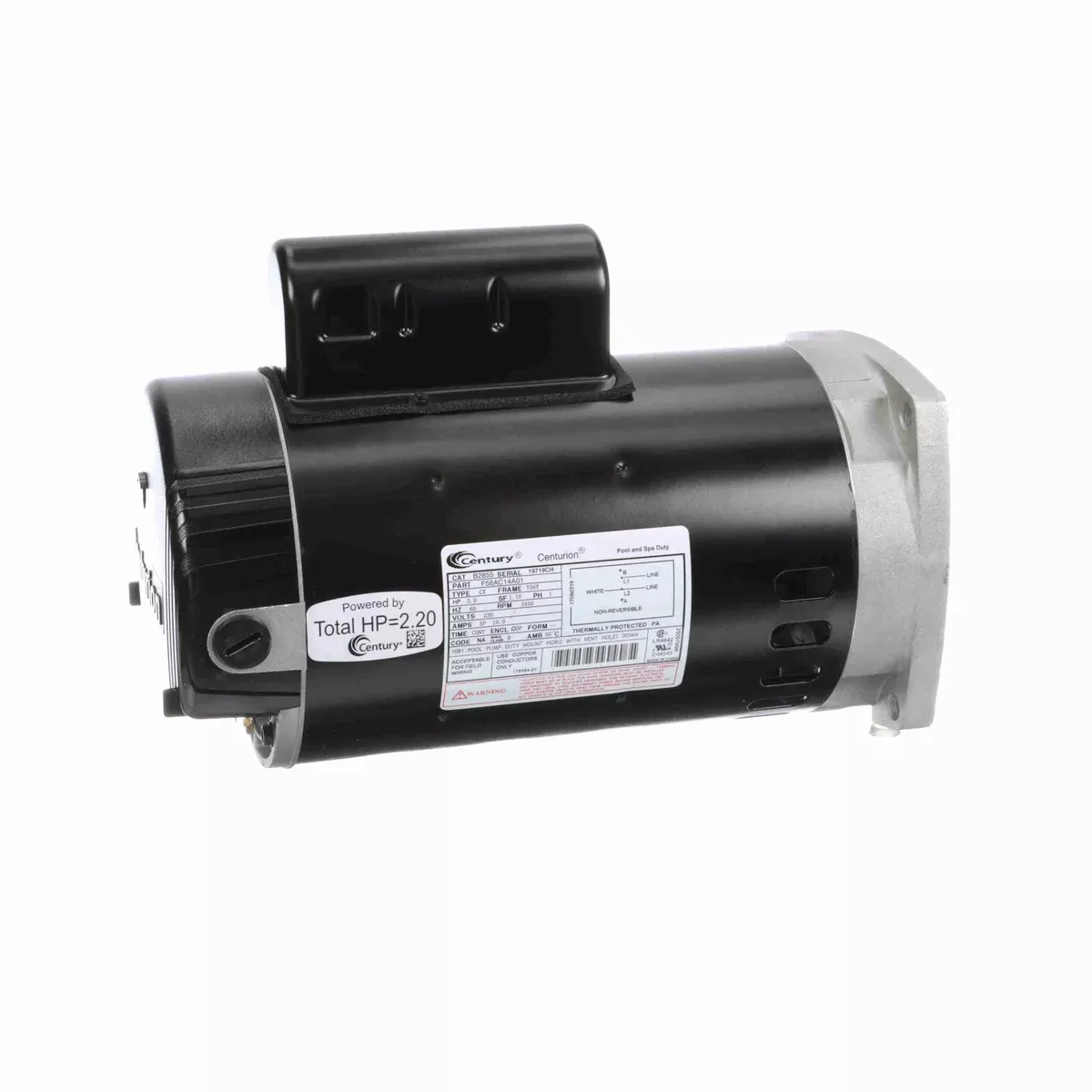

Century B2855 PSC (Permanent Split Capacitor) 6-1/2″ Diameter Pool & Spa Pump Motor – B2855

Original price was: $379.79.Current price is: $284.20.

Sale!
SKU: B2855 Category:
Share
  • We cannot ship this product to California, under Title 20 CCR section 1605.3(g)(5)
  • B2855 replaces A.O. Smith cat B855
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 2
  • RPM: 3450
  • Volts: 230
  • Amps: 10
  • Hz: 60
  • Phase: 1
  • Frame: 56Y
  • Enclosure Type: ODP (Open Dripproof)
  • Mounting: Square Flange
  • Rotation: CCW Pump End
  • Number of Speeds: 1
  • Service Factor (SF): 1.10
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 50° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: Included
  • Motor Diameter: 6-1/2″
  • Overall Length (including shaft): 13.46″
  • Body Length (less shaft): 9″
  • Shaft Dimensions: 1/2 x 0.91″ threaded
  • Frame Material: Rolled Steel
  • “1081” Design
  • B2855 is listed in Century’s cross reference as a possible substitute for the following: Century B694, A.O. Smith 177897, Century 177897, Century 182115, Franklin 1103675400, Franklin SQ120U, Dayton 1D191, Dayton 5U126, Century 193268, Jandy/Waterpik A0104700
  • Ship Weight: 33 lbs.
