Home » Shop » hot sale » Century B696 General Purpose Single Phase Motor – B696

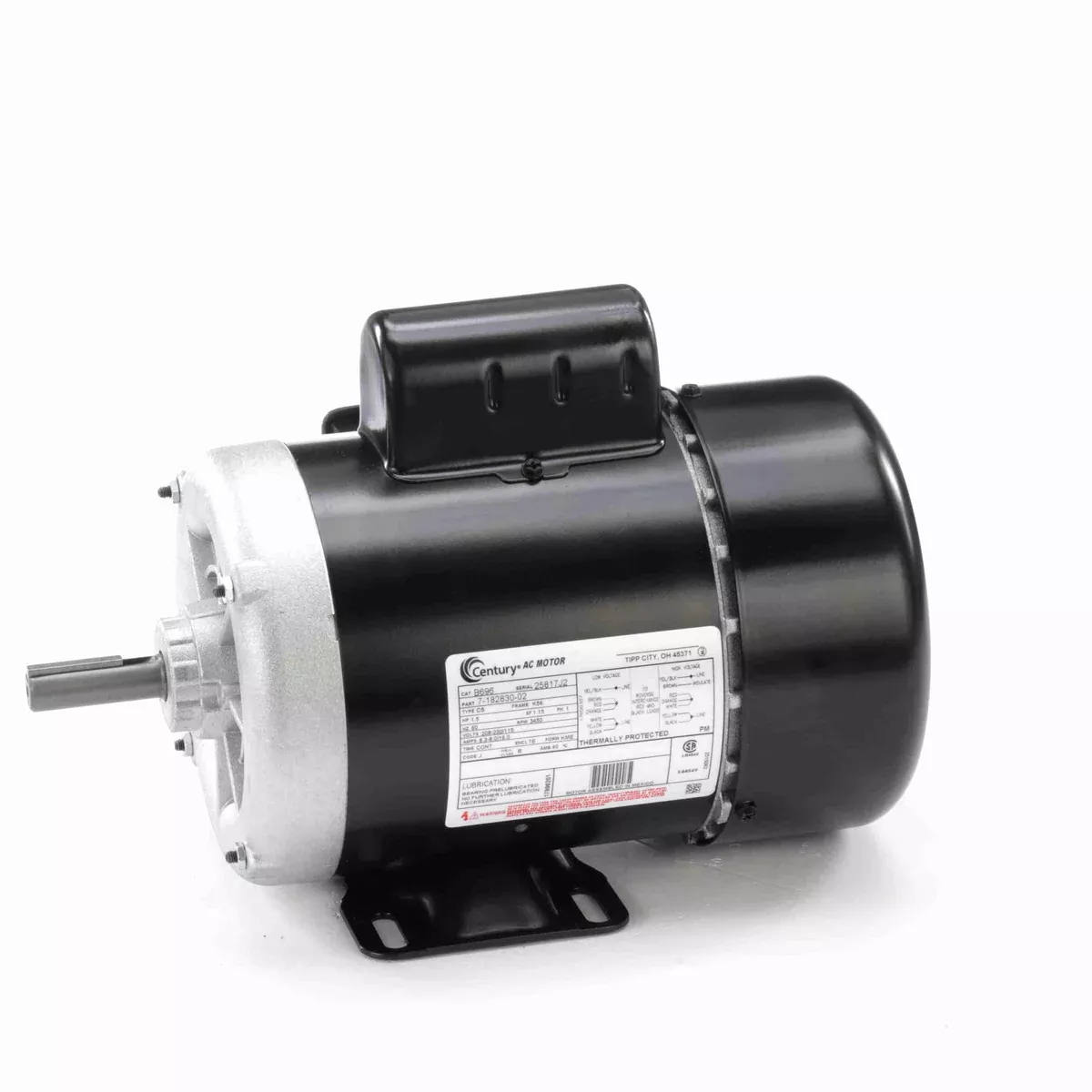

Century B696 General Purpose Single Phase Motor – B696

Original price was: $325.37.Current price is: $194.26.

Sale!
SKU: B696 Category:
Share
  • Product Type: Capacitor Start
  • HP: 1-1/2
  • RPM: 3450
  • Volts: 115/208-230
  • Amps: 8.3/8/16
  • Hz: 60
  • Phase: 1
  • Frame: 56
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: Rigid
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 1-7/8″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: Manual
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: Included
  • B696 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 182830, A.O. Smith 327P093, A.O. Smith 327P870, A.O. Smith C56M2TE104, A.O. Smith C56M2TE105, A.O. Smith EB1152M, Baldor L3513M, Century 182830, Dayton 2K606, Dayton 6K338, Johnstone Supply S88-432, Leeson 110109, Marathon G391, Marathon Z56B34F5321
  • Ship Weight: 36 lbs.
