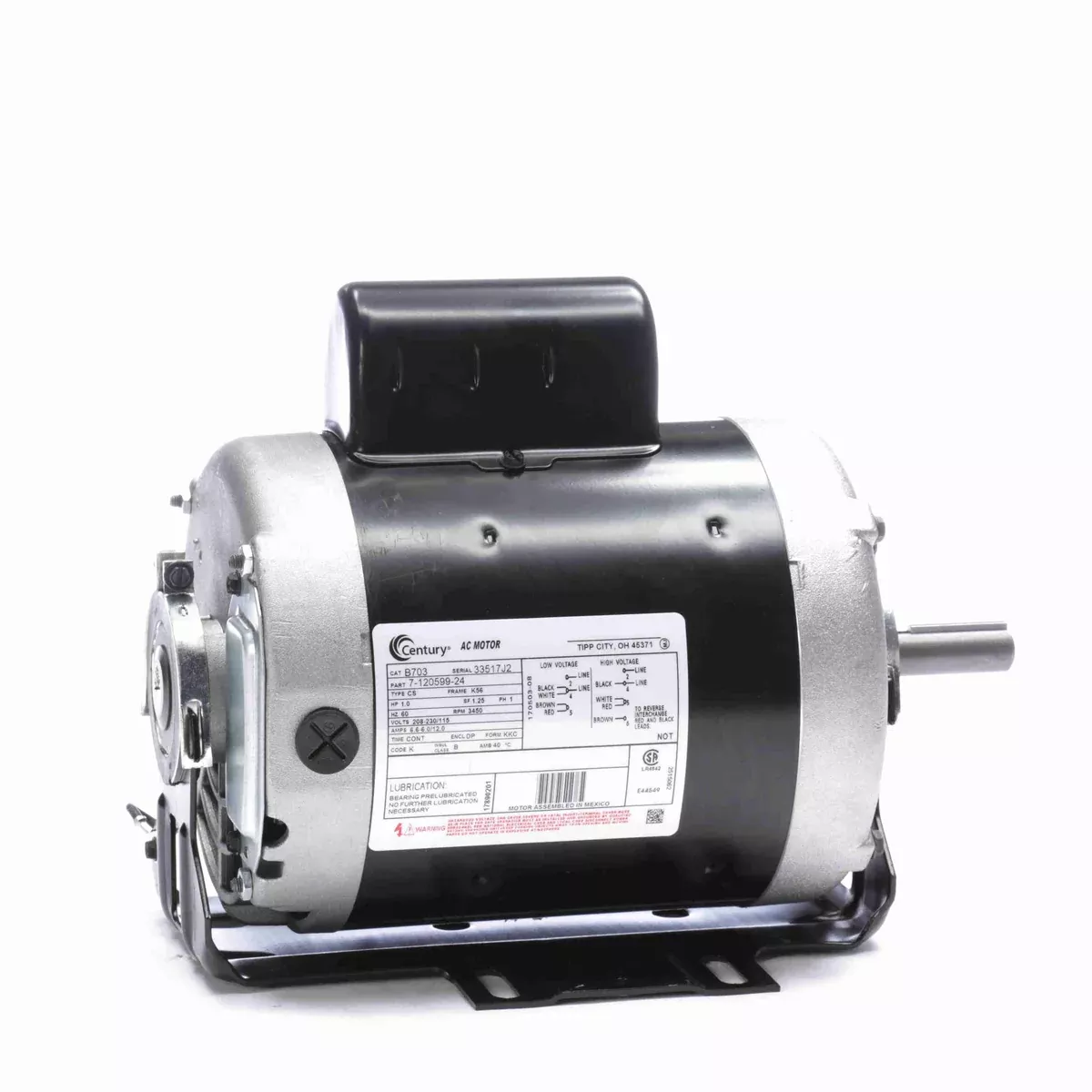

Century B703 General Purpose Single Phase Motor – B703

Original price was: $335.96.Current price is: $174.80.

Sale!
SKU: B703 Category:
Share
  • Product Type: Capacitor Start
  • HP: 1
  • RPM: 3450
  • Volts: 115/208-230
  • Amps: 6.6/6/12
  • Hz: 60
  • Phase: 1
  • Frame: 56
  • Enclosure Type: ODP (Open Dripproof)
  • Mounting: Cradle
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 1-7/8″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.25
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: Included
  • B703 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 120599, A.O. Smith C56A51A01, A.O. Smith C56A54A01, A.O. Smith RB1102, Century 120599, Universal Electric B703
  • High Starting Torque
  • Ship Weight: 30 lbs.
