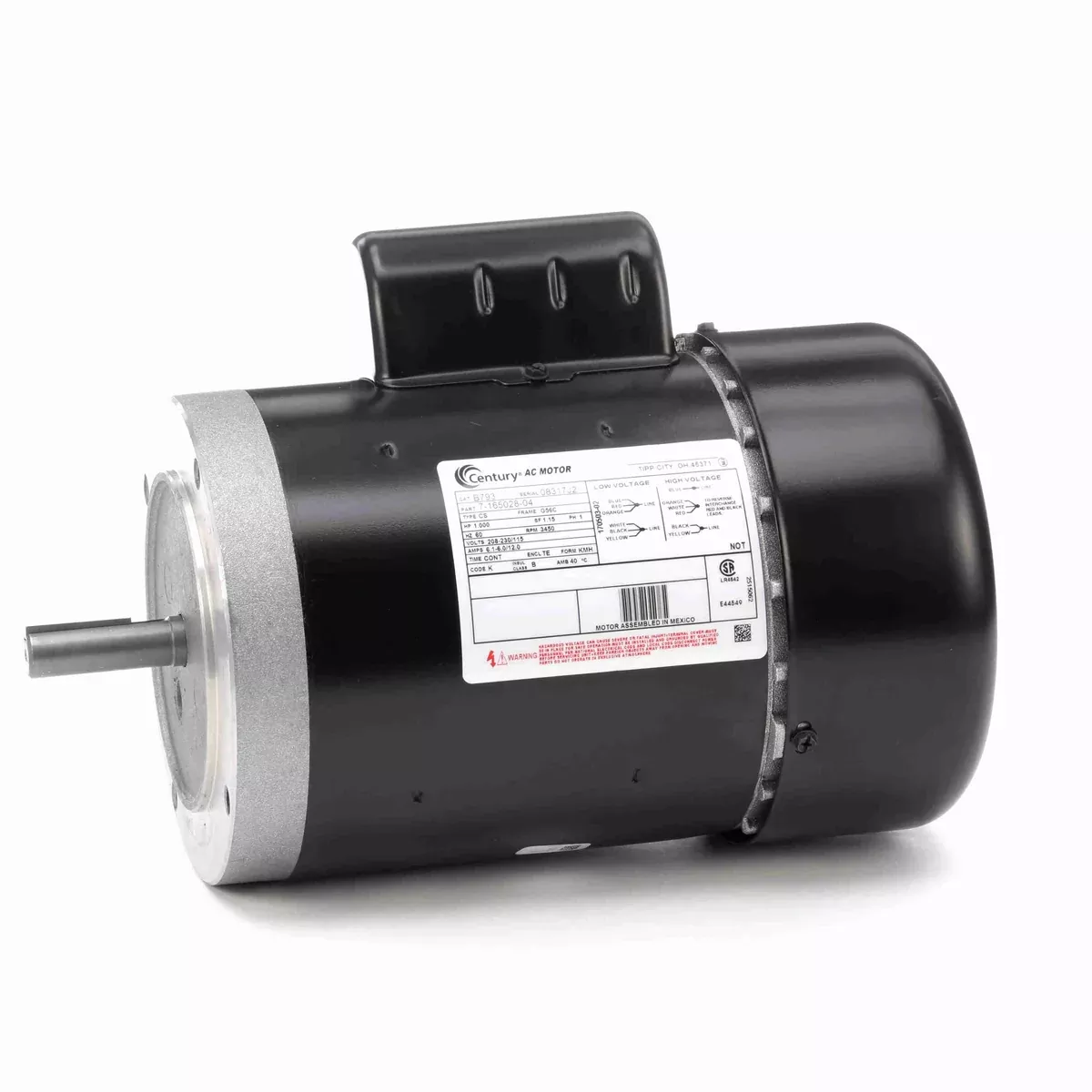

Century B793 General Purpose Single Phase Motor – B793

Original price was: $83.34.Current price is: $58.41.

Sale!
SKU: B793 Category:
Share
  • Product Type: Capacitor Start
  • HP: 1
  • RPM: 3450
  • Volts: 115/208-230
  • Amps: 6.1/6/12
  • Hz: 60
  • Phase: 1
  • Frame: 56C
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: C-Face
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 1-7/8″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: Included
  • B793 is listed in Century’s cross reference as a possible substitute for the following: Baldor VL3509, Emerson 4306, Leeson 110416, Marathon G518, Marathon V56C34F5324, A.O. Smith 165028, A.O. Smith ECK1102N, Century 165028, U.S.E.M. B249
  • Gasketed Conduit Box
  • Ship Weight: 34 lbs.
