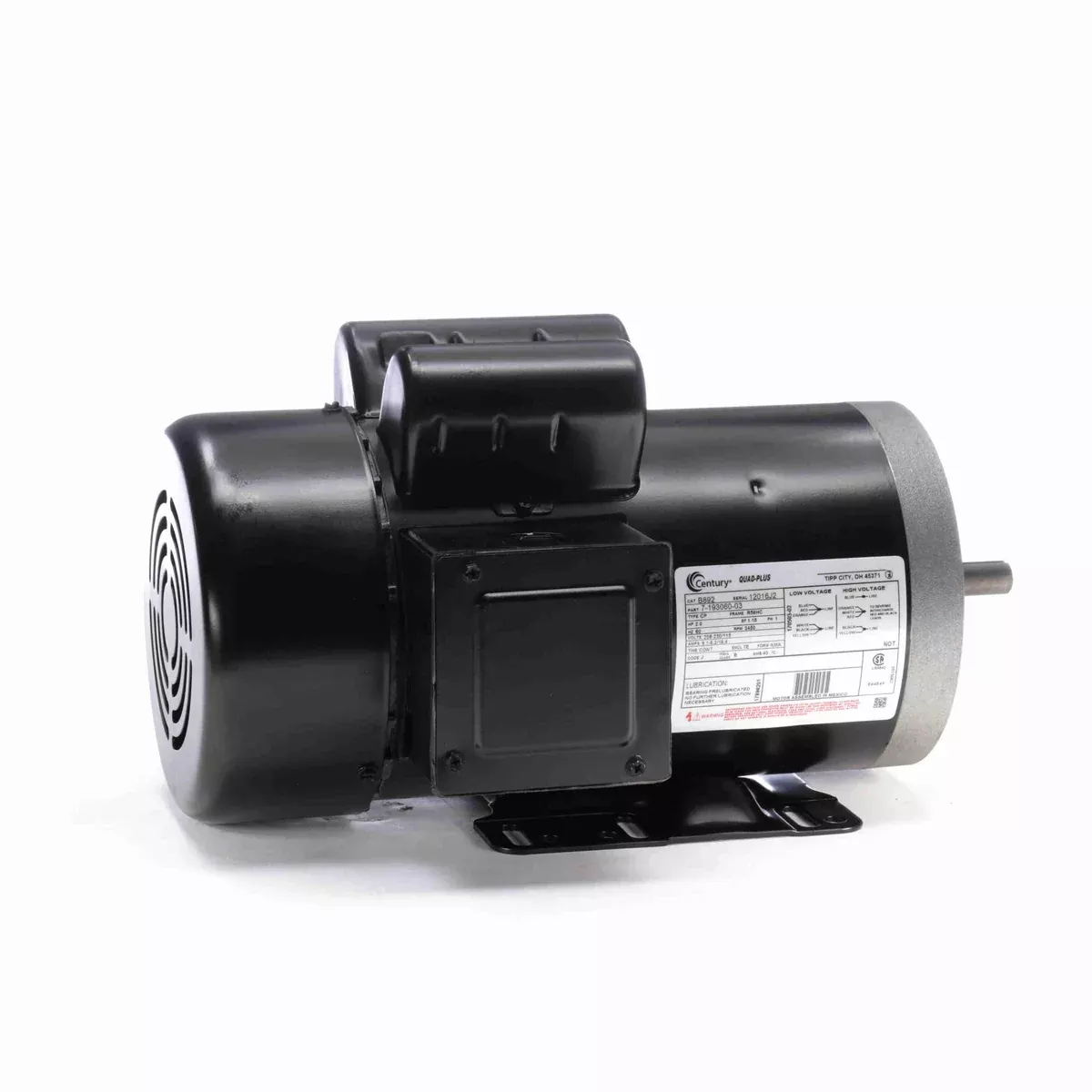

Century B892 General Purpose Single Phase Motor – B892

Original price was: $355.49.Current price is: $194.63.

Sale!
SKU: B892 Category:
Share
  • Product Type: Capacitor Start, Capacitor Run
  • HP: 2
  • RPM: 3450
  • Volts: 115/208-230
  • Amps: 9.1/8.2/16.4
  • Hz: 60
  • Phase: 1
  • Frame: 56HC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Enclosure Material: Steel
  • Mounting: C-Face/Rigid
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 1-7/8″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: Included
  • B892 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 193060, A.O. Smith B815, Baldor CL3515, Century 193060, Century 193061, Leeson 113931, Rheem/Protech 514194901
  • 56/140 Frame Combination Base (12 Mounting Holes)
  • Energy Efficient
  • Ship Weight: 42 lbs.
