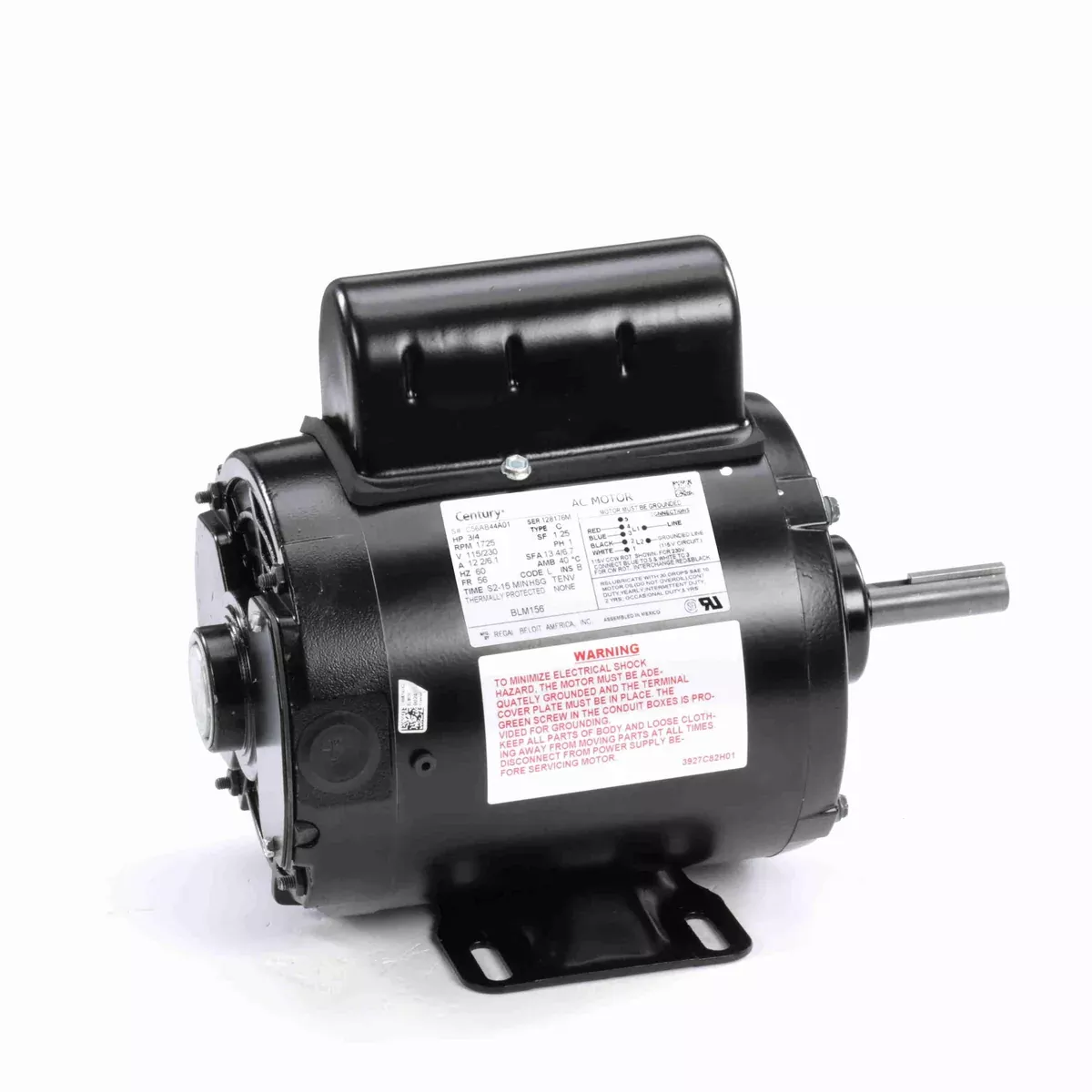

Century BLM156 General Purpose Single Phase Motor – BLM156

Original price was: $230.22.Current price is: $129.99.

Sale!
SKU: BLM156 Category:
Share
  • Product Type: Capacitor Start
  • HP: 3/4
  • RPM: 1725
  • Volts: 115/230
  • Amps: 12.2/6.1
  • Hz: 60
  • Phase: 1
  • Frame: 56
  • Enclosure Type: TENV (Totally Enclosed Non Ventilated)
  • Mounting: Rigid
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 1-7/8″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.25
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: 15 Minutes
  • Capacitor: 540-648MFD @ 165VAC (Included)
  • BLM156 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith BLM056, A.O. Smith C56AA99A01, A.O. Smith C56AB44A01
  • Ship Weight: 30 lbs.
