Home » Shop » hot sale » Century C039A 5.6″ Diameter HVAC Direct Drive Fan Motor – C039A

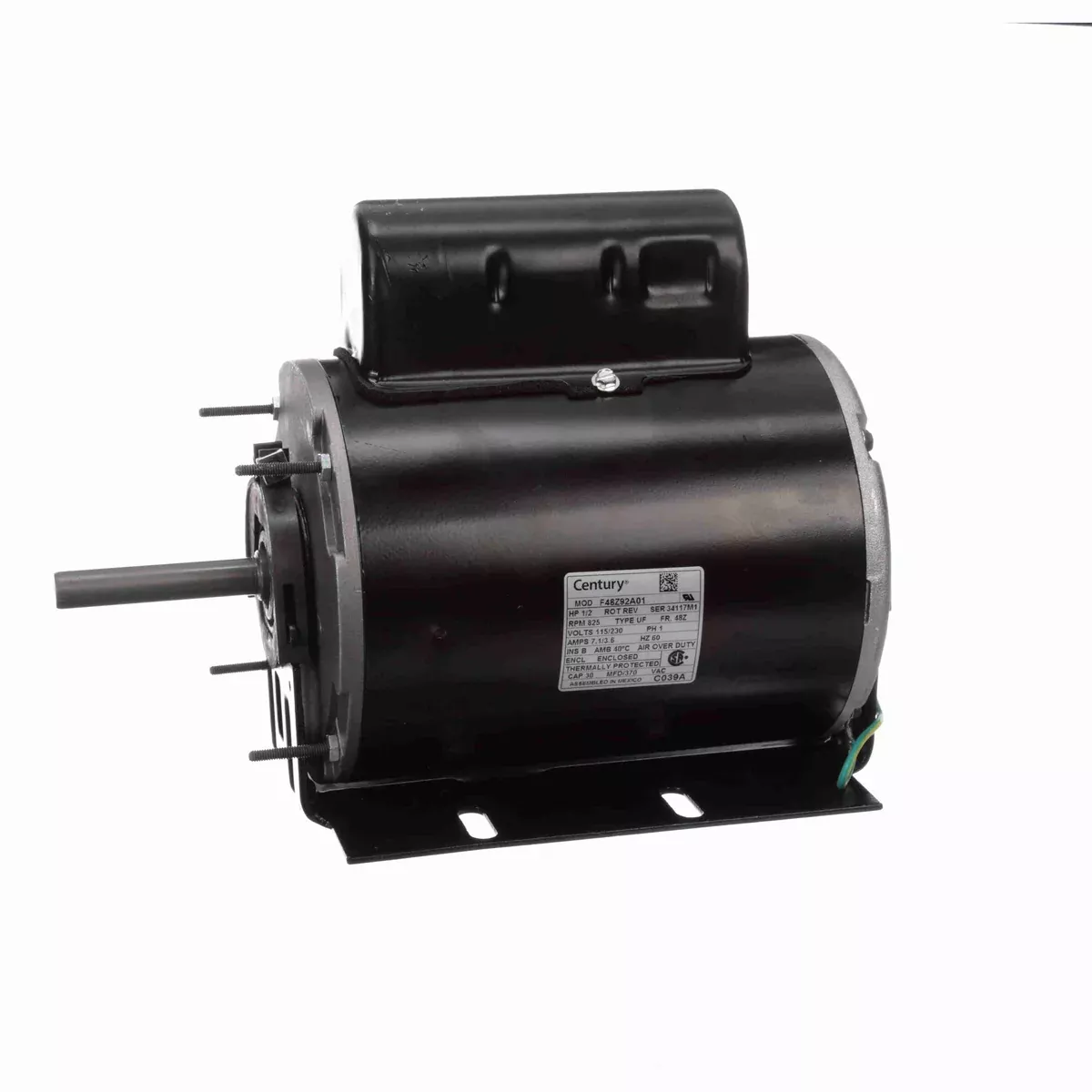

Century C039A 5.6″ Diameter HVAC Direct Drive Fan Motor – C039A

Original price was: $333.80.Current price is: $190.91.

Sale!
SKU: C039A Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/2
  • RPM: 825
  • Volts: 115/230
  • Amps: 7.1/3.6
  • Hz: 60
  • Phase: 1
  • Frame: 48Z
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting: Cradle/Stud
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Shaft Length: 2-1/2″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 30MFD @ 370VAC (Included)
  • C039A is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith C039, A.O. Smith F48Z92A01, Universal Electric HF4U010, Universal Electric HF4U7010, Fasco D998
  • Includes 5/8″ Adapter And Key
  • Fully Gasketed
  • Ship Weight: 21 lbs.
