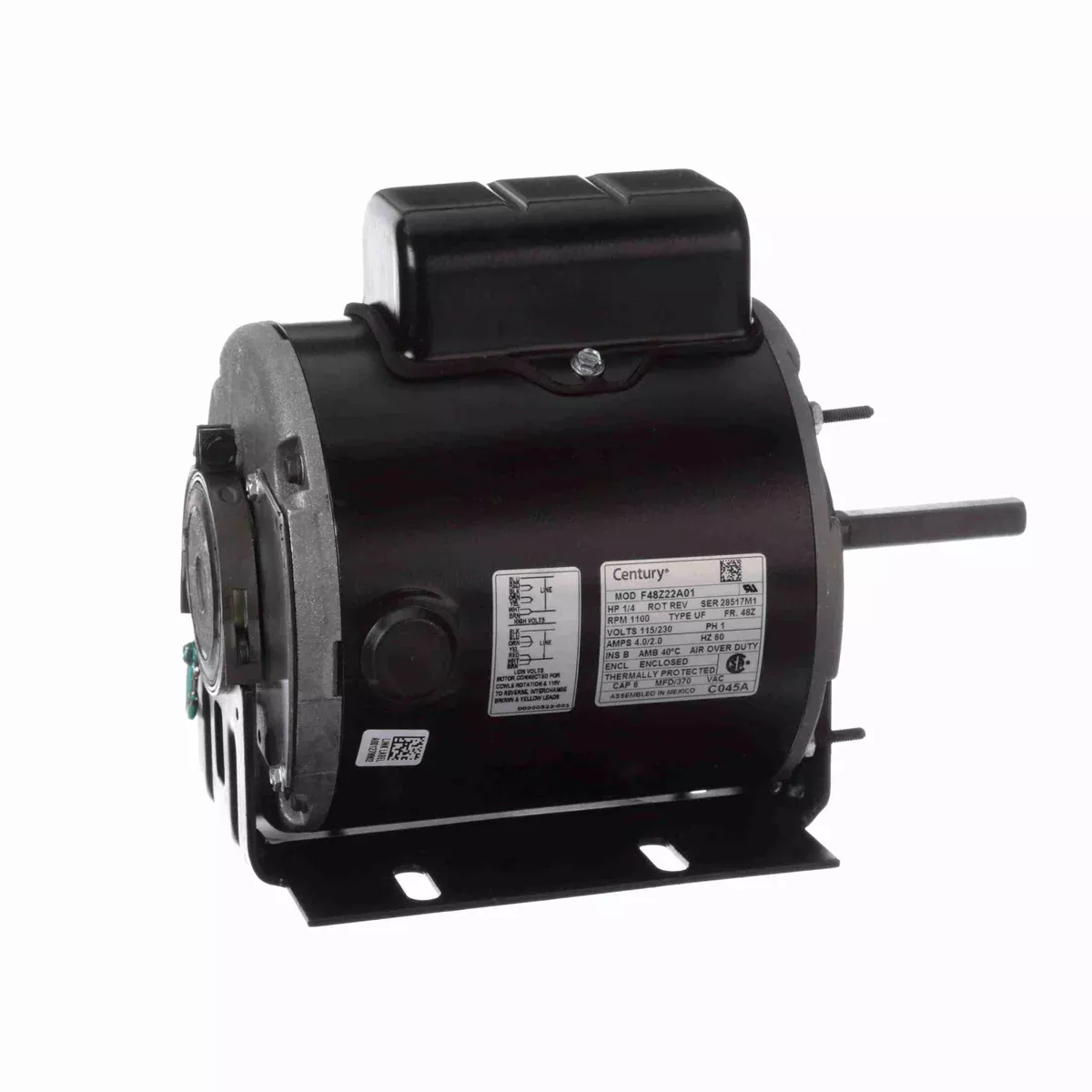

Century C045A 5.6″ Diameter HVAC Direct Drive Fan Motor – C045A

Original price was: $228.11.Current price is: $165.38.

Sale!
SKU: C045A Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/4
  • RPM: 1100
  • Volts: 115/230
  • Amps: 4/2
  • Hz: 60
  • Phase: 1
  • Frame: 48Z
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting: Cradle/Stud
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Shaft Length: 3-1/4″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 6MFD @ 370VAC (Included)
  • C045A is listed in Century’s cross reference as a possible substitute for the following: Marathon W48A11T2001, A.O. Smith C045, A.O. Smith F48Z22A01, Baldor CHC3414A, Dayton 4M042, Dayton 4UB89, Leeson 100824, Marathon X027, Universal Electric HF3G051, Universal Electric HF3G7051
  • Includes 5/8″ Adapter And Key
  • Fully Gasketed
  • Ship Weight: 16 lbs.
