Home » Shop » hot sale » Century C150L 5.6″ Diameter General Purpose Single Phase Motor – C150L

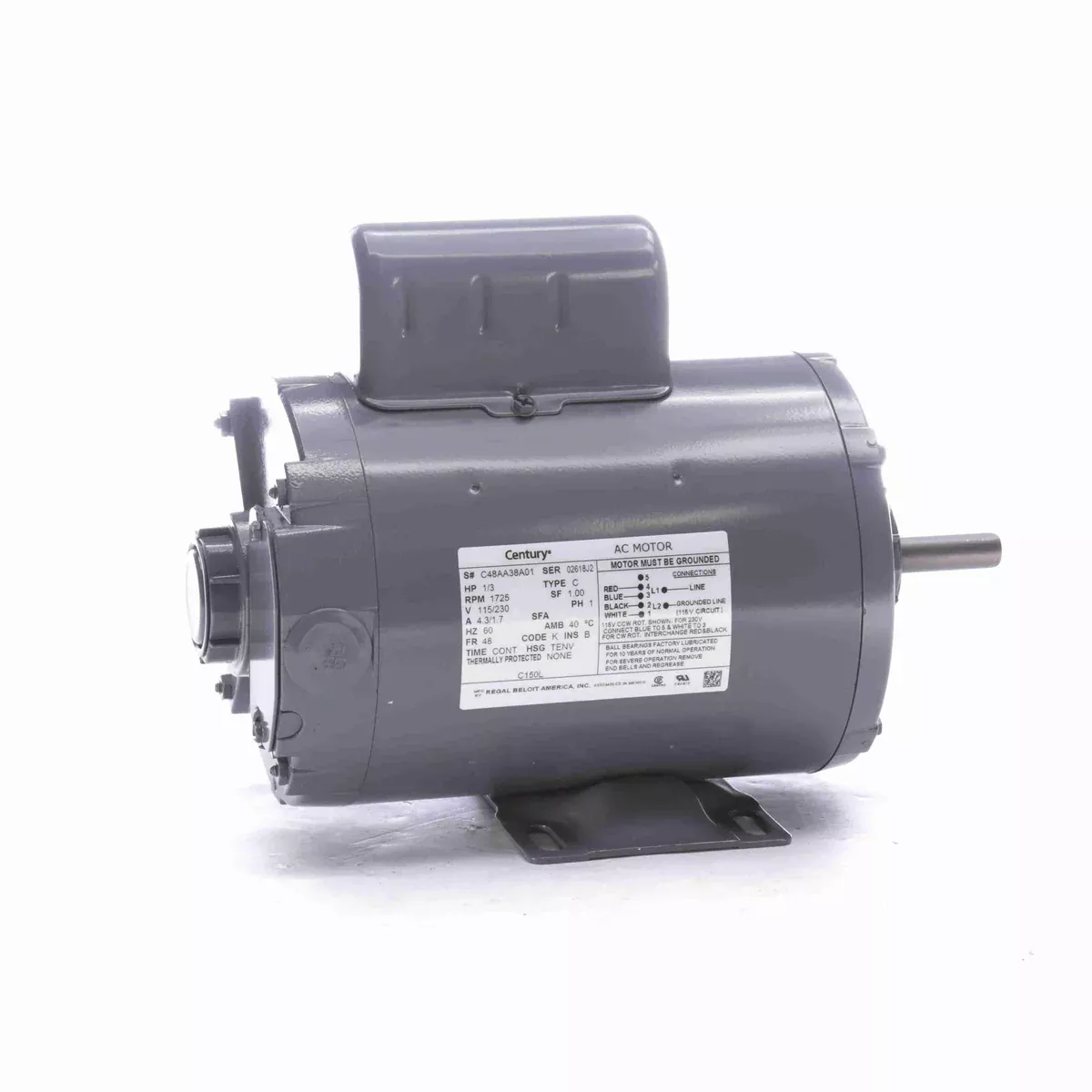

Century C150L 5.6″ Diameter General Purpose Single Phase Motor – C150L

Original price was: $297.72.Current price is: $178.73.

Sale!
SKU: C150L Category:
Share
  • Product Type: Capacitor Start
  • HP: 1/3
  • RPM: 1725
  • Volts: 115/230
  • Amps: 4.3/1.7
  • Hz: 60
  • Phase: 1
  • Frame: 48
  • Enclosure Type: TENV (Totally Enclosed Non Ventilated)
  • Mounting: Rigid
  • Motor Diameter: 5-5/8″
  • Shaft Diameter: 1/2″
  • Shaft Length: 1-1/2″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 356MFD @ 125VAC (Included)
  • C150L is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith C150, A.O. Smith C48AA38A01, Baldor L3406, Leeson 100955, U.S.E.M. B754, Universal Electric HP2L002
  • Ship Weight: 22 lbs.
