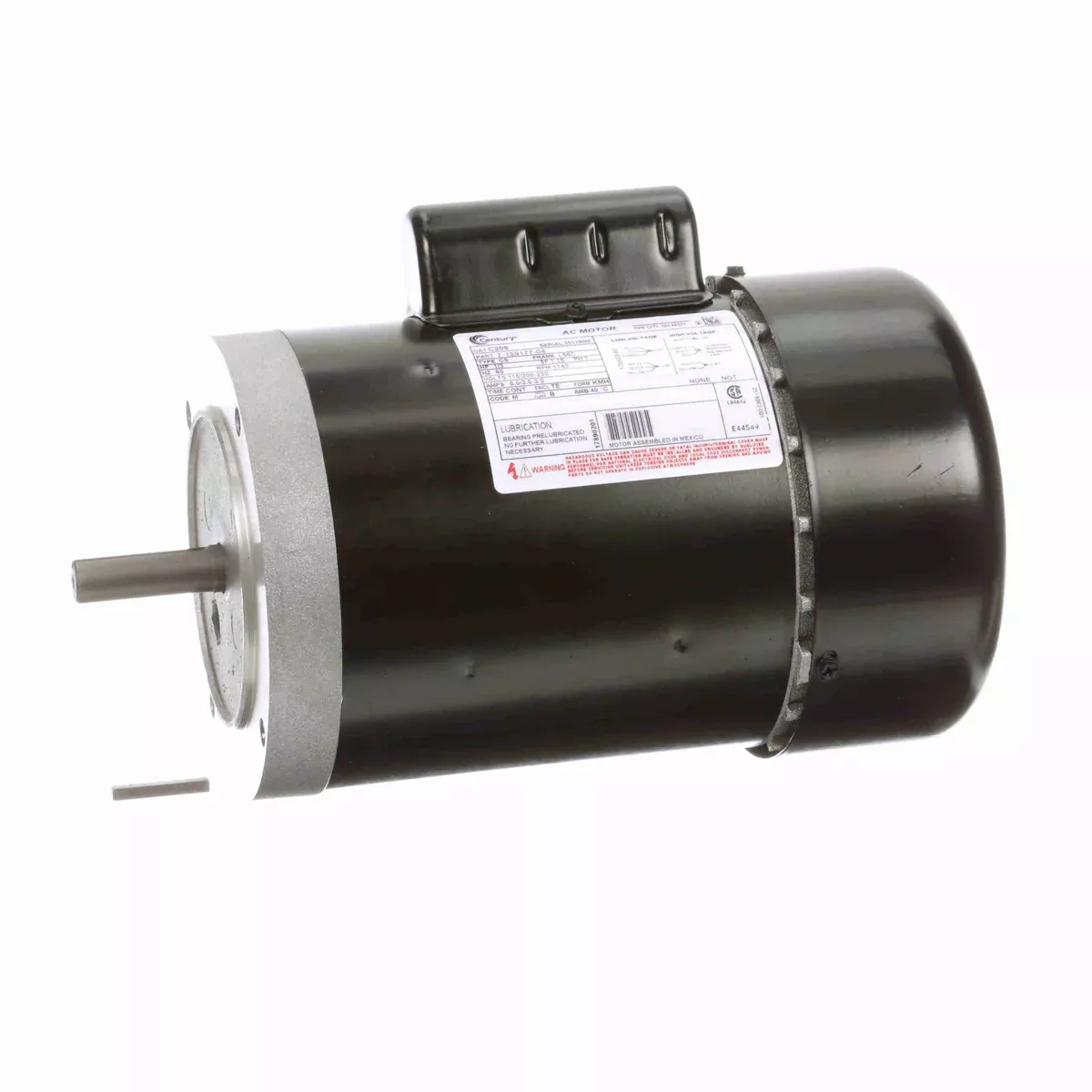

Century C209 General Purpose Single Phase Motor – C209

Original price was: $394.93.Current price is: $249.89.

Sale!
SKU: C209 Category:
Share
  • Product Type: Capacitor Start
  • HP: 1/3
  • RPM: 1140
  • Volts: 115/208-230
  • Amps: 6/3/3
  • Hz: 60
  • Phase: 1
  • Frame: 56C
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: C-Face
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 1-7/8″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: Included
  • C209 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 159177, Century 159177
  • Gasketed Conduit Box
  • Ship Weight: 32 lbs.
