Home » Shop » hot sale » Century C313 General Purpose Single Phase Farm Duty Motor – C313

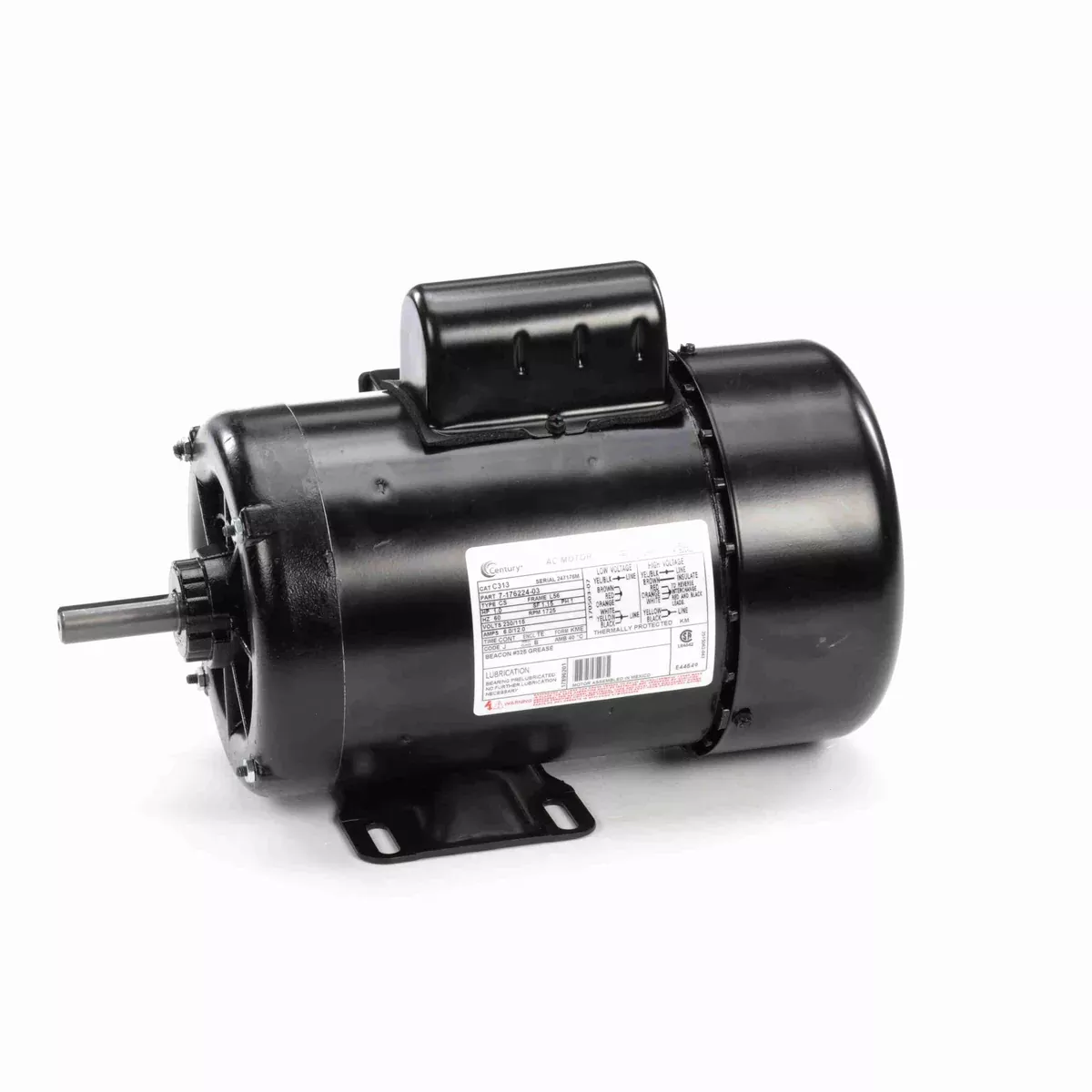

Century C313 General Purpose Single Phase Farm Duty Motor – C313

Original price was: $306.14.Current price is: $167.60.

Sale!
SKU: C313 Category:
Share
  • Product Type: Capacitor Start, Capacitor Run
  • HP: 1
  • RPM: 1725
  • Volts: 115/230
  • Amps: 6/12
  • Hz: 60
  • Phase: 1
  • Frame: 56
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: Rigid
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 1-7/8″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: Manual
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: Included
  • C313 is listed in Century’s cross reference as a possible substitute for the following: Emerson 1953, Dayton 6K727, Dayton 6K843, Leeson 110088, A.O. Smith 176224, Baldor FDL3510M
  • High Starting Torque
  • Bearings Lubricated With Low Temperature Grease
  • Ship Weight: 36 lbs.
