- Product Type: Capacitor Start, Capacitor Run
- HP: 1-1/2
- RPM: 1725
- Volts: 115/230
- Amps: 7.5/15
- Hz: 60
- Phase: 1
- Frame: 56
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Mounting: Rigid
- Motor Diameter: 6-1/2″
- Shaft Diameter: 5/8″ Keyed
- Shaft Length: 1-7/8″
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor (SF): 1.15
- Bearings: Ball
- Thermal Protection: Manual
- Maximum Ambient Temperature: 40° C
- Insulation Class: B
- Duty Cycle: Continuous
- Capacitor: Included
- C314C is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 196023
- High Starting Torque
- Bearings Lubricated With Low Temperature Grease
- Energy Efficient
- Ship Weight: 44 lbs.

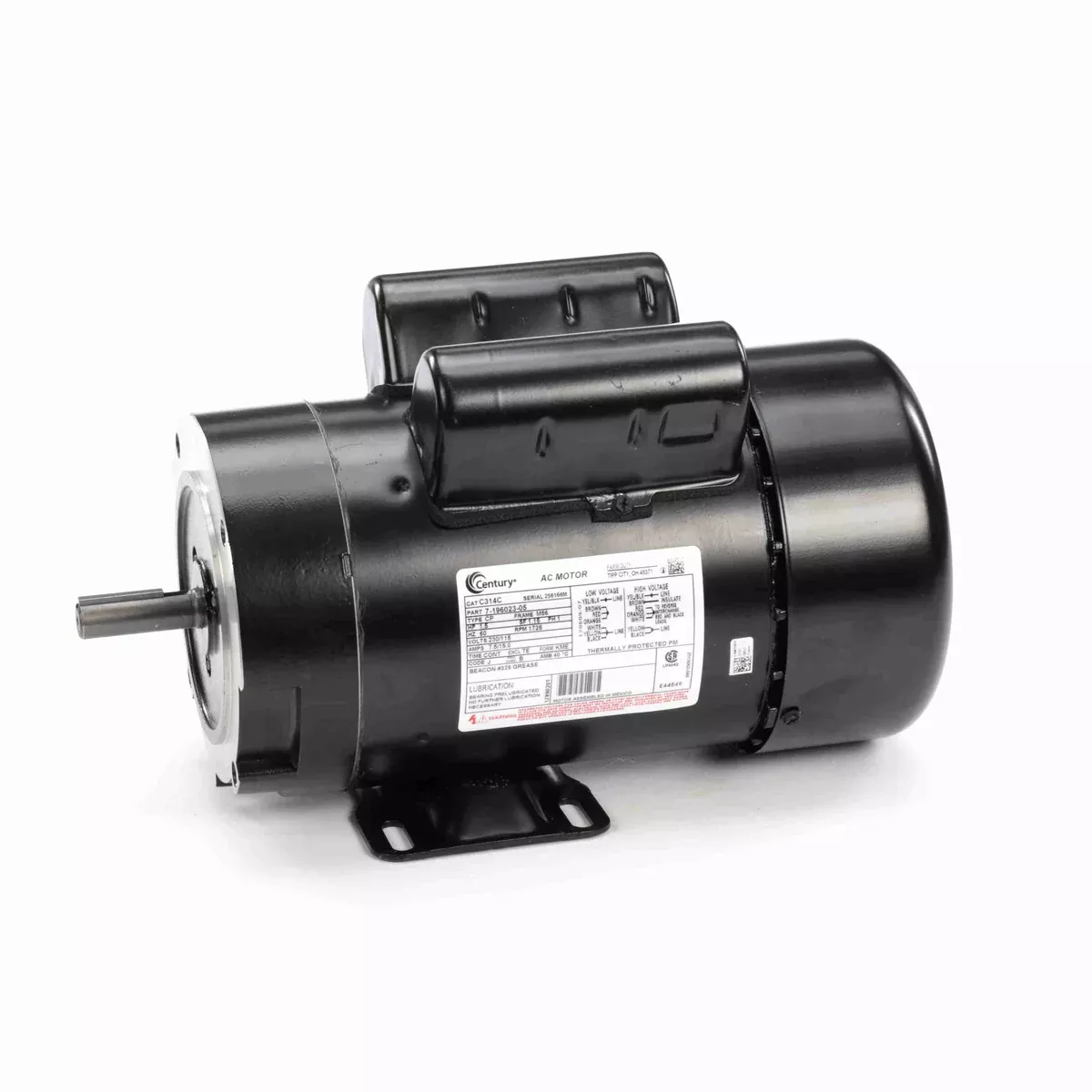

Century C314C General Purpose Single Phase Farm Duty Motor – C314C
Original price was: $303.13.$232.82Current price is: $232.82.
