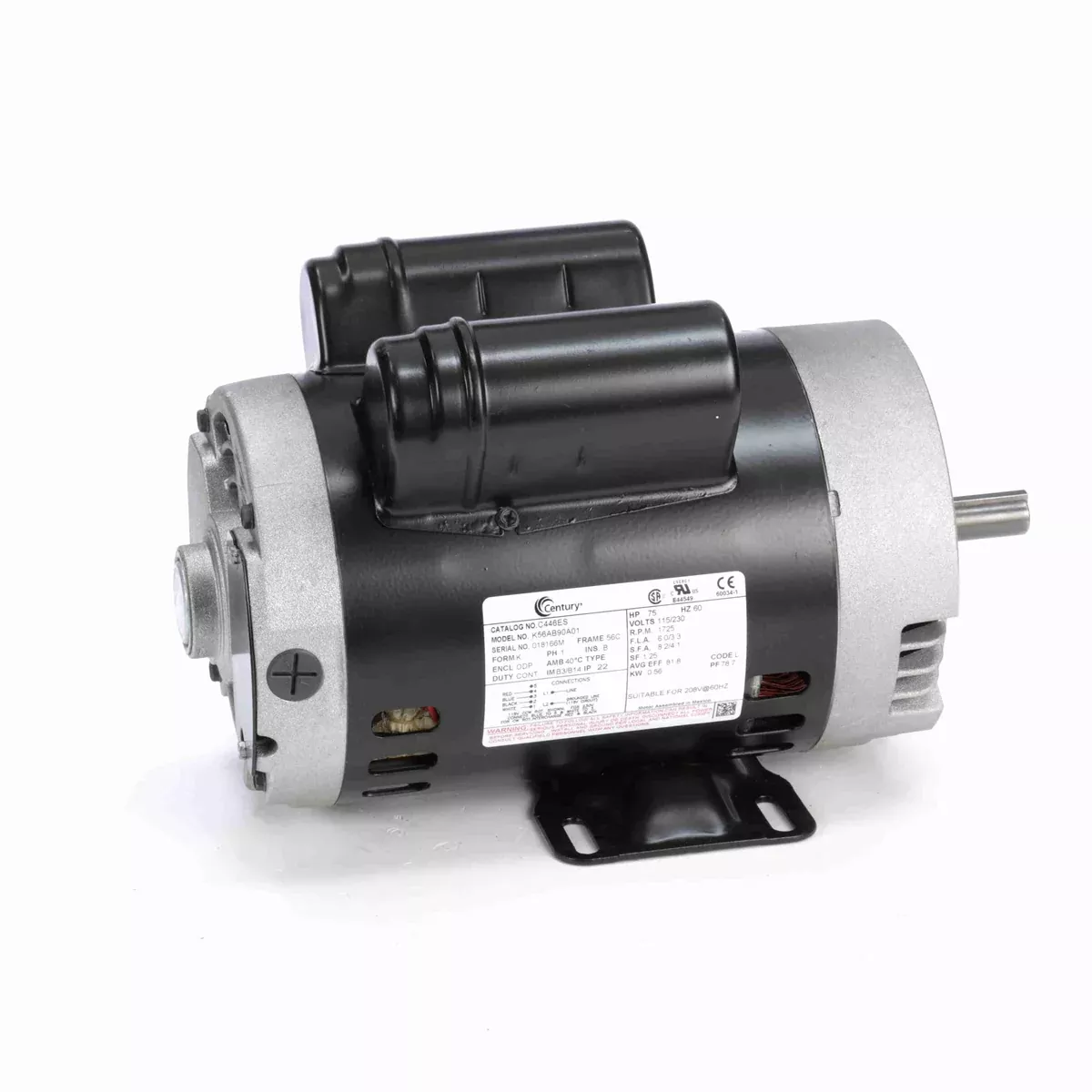

Century C446ES General Purpose Single Phase Motor – C446ES

Original price was: $399.59.Current price is: $253.45.

Sale!
SKU: C446ES Category:
Share
  • Product Type: Capacitor Start
  • HP: 3/4
  • RPM: 1725
  • Volts: 115/230
  • Amps: 6/3.3
  • Hz: 60
  • Phase: 1
  • Frame: 56C
  • Enclosure Type: ODP (Open Dripproof)
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Rotation: CW Shaft End
  • Number of Speeds: 1
  • Service Factor (SF): 1.25
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: Included
  • C446ES is listed in Century’s cross reference as a possible substitute for the following: Century K56AB90A01
  • Ship Weight: 25 lbs.
