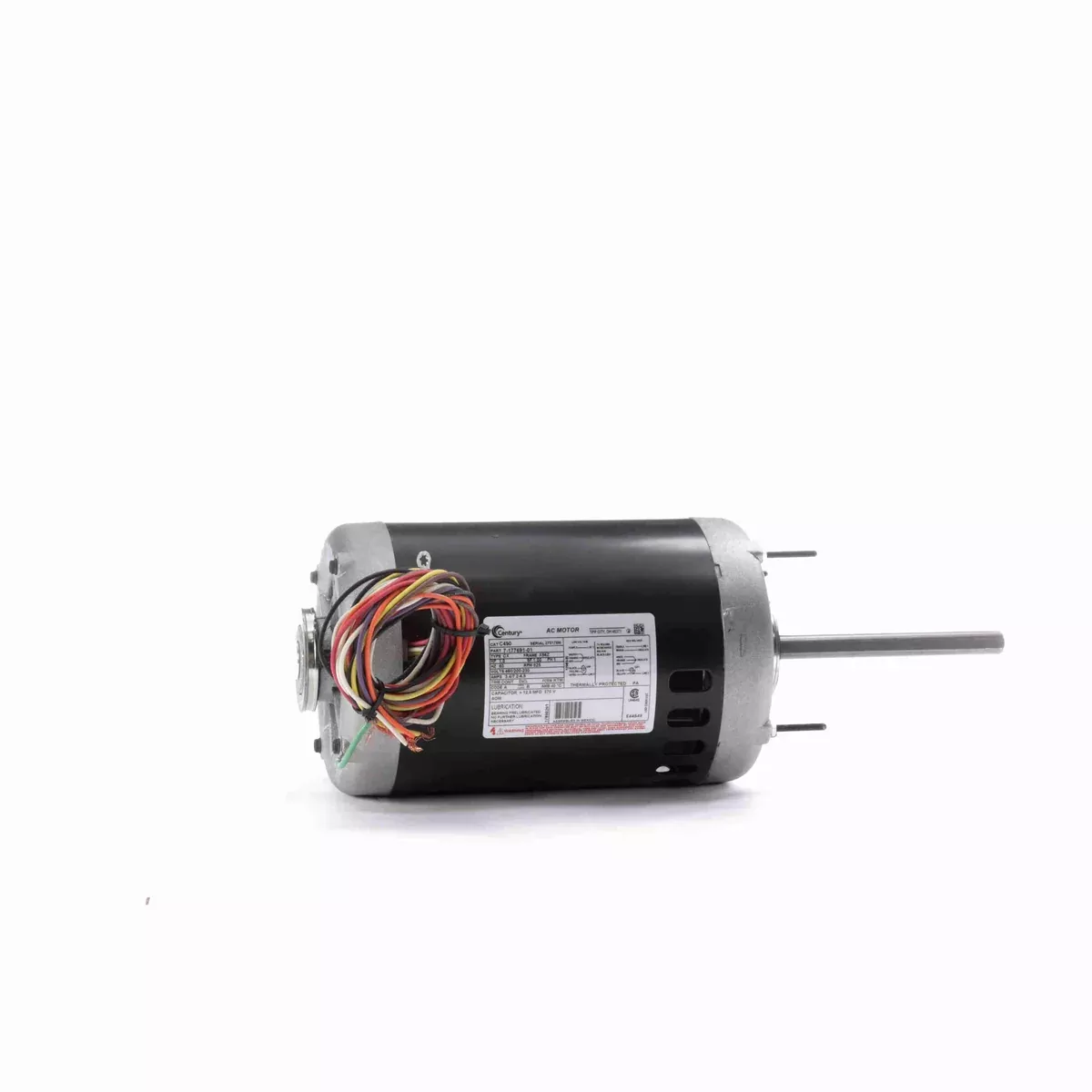

Century C490 HVAC Condenser Fan Motor – C490

Original price was: $473.96.Current price is: $245.68.

Sale!
SKU: C490 Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1
  • RPM: 825
  • Volts: 200-230/460
  • Amps: 3.4/7.2/6.8
  • Hz: 60
  • Phase: 1
  • Frame: 56Z
  • Enclosure Type: OAO (Open Air Over)
  • Mounting: Band/Ring/Stud
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 6″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 12.5MFD @ 370VAC Required
  • C490 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 177691, Century 177691
  • Quick Connect Design
  • Includes 2-1/2″ Resilient Mounting Rings
  • 50″ Leads
  • Ship Weight: 41 lbs.
