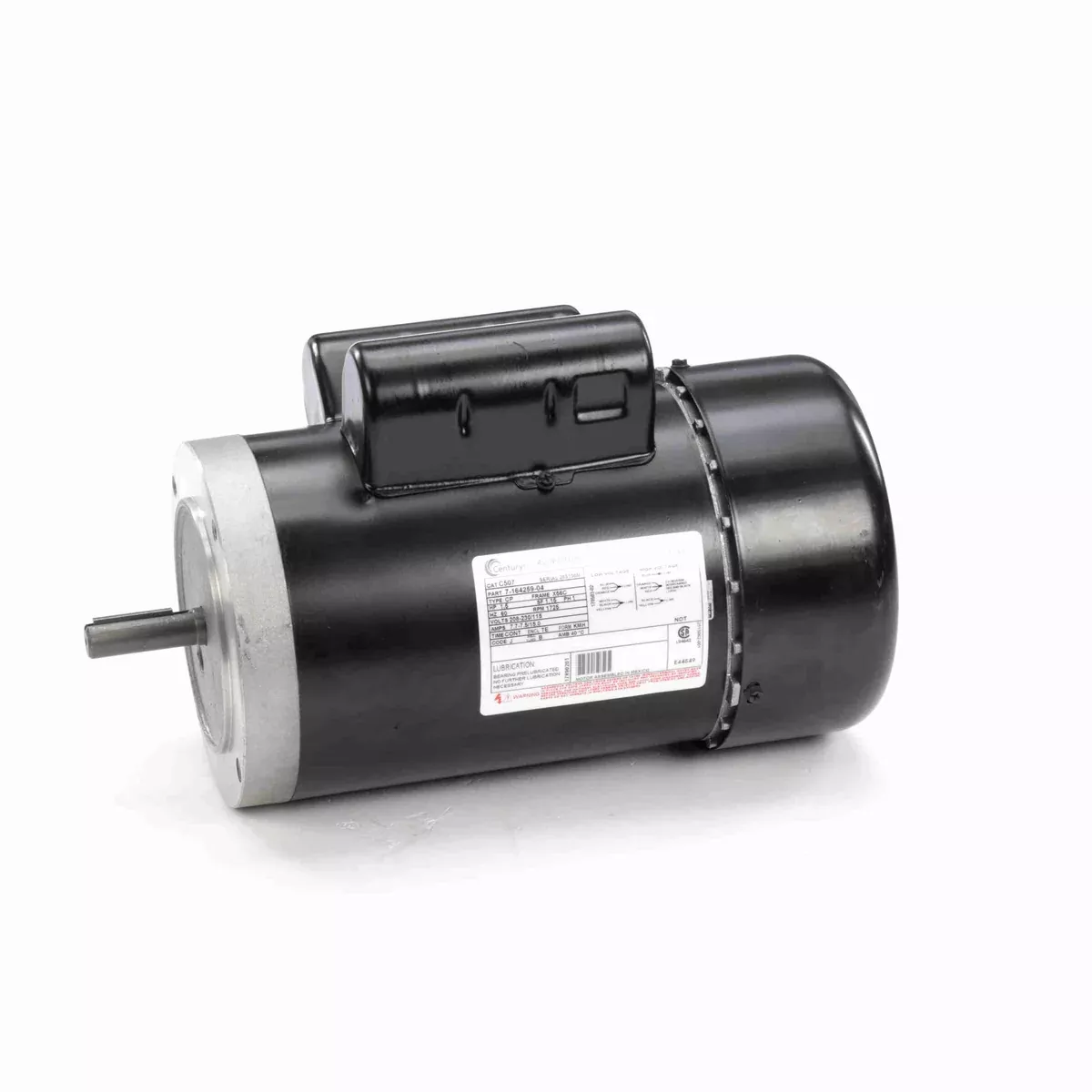

Century C507 General Purpose Single Phase Motor – C507

Original price was: $334.70.Current price is: $224.19.

Sale!
SKU: C507 Category:
Share
  • Product Type: Capacitor Start, Capacitor Run
  • HP: 1-1/2
  • RPM: 1725
  • Volts: 115/208-230
  • Amps: 7.7/7.5/15
  • Hz: 60
  • Phase: 1
  • Frame: 56C
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: C-Face
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 1-7/8″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: Included
  • C507 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 164259, A.O. Smith 311P383, A.O. Smith EC1154, Baldor VL3514, Century 164259, Edison 4358, Emerson 4358, GE C371, Dayton 3K020, Dayton 6K702, Leeson 110420, Marathon G531, Marathon V56B17F5303, Packard 73034, U.S.E.M. B251, Universal Electric C507
  • Gasketed Conduit Box
  • Energy Efficient
  • Ship Weight: 43 lbs.
