- Product Type: Capacitor Start
- HP: 1/4, 3/4
- RPM: 1140/1725
- Volts: 208-230
- Amps: 5/5/2.7/2.8
- Hz: 60
- Phase: 1
- Frame: 56
- Enclosure Type: ODP (Open Dripproof)
- Mounting: Cradle/Stud
- Motor Diameter: 6-1/2″
- Shaft Diameter: 5/8″ Keyed
- Shaft Length: 1-7/8″
- Rotation: Reversible
- Number of Speeds: 2
- Service Factor (SF): 1.25
- Bearings: Ball
- Thermal Protection: Automatic
- Maximum Ambient Temperature: 40° C
- Insulation Class: B
- Duty Cycle: Continuous
- Capacitor: Included
- C534V1 is listed in Century’s cross reference as a possible substitute for the following: Century 108185, Dayton 2K267, A.O. Smith C534, Dayton 4UB52, Leeson 113672
- Ship Weight: 32 lbs.

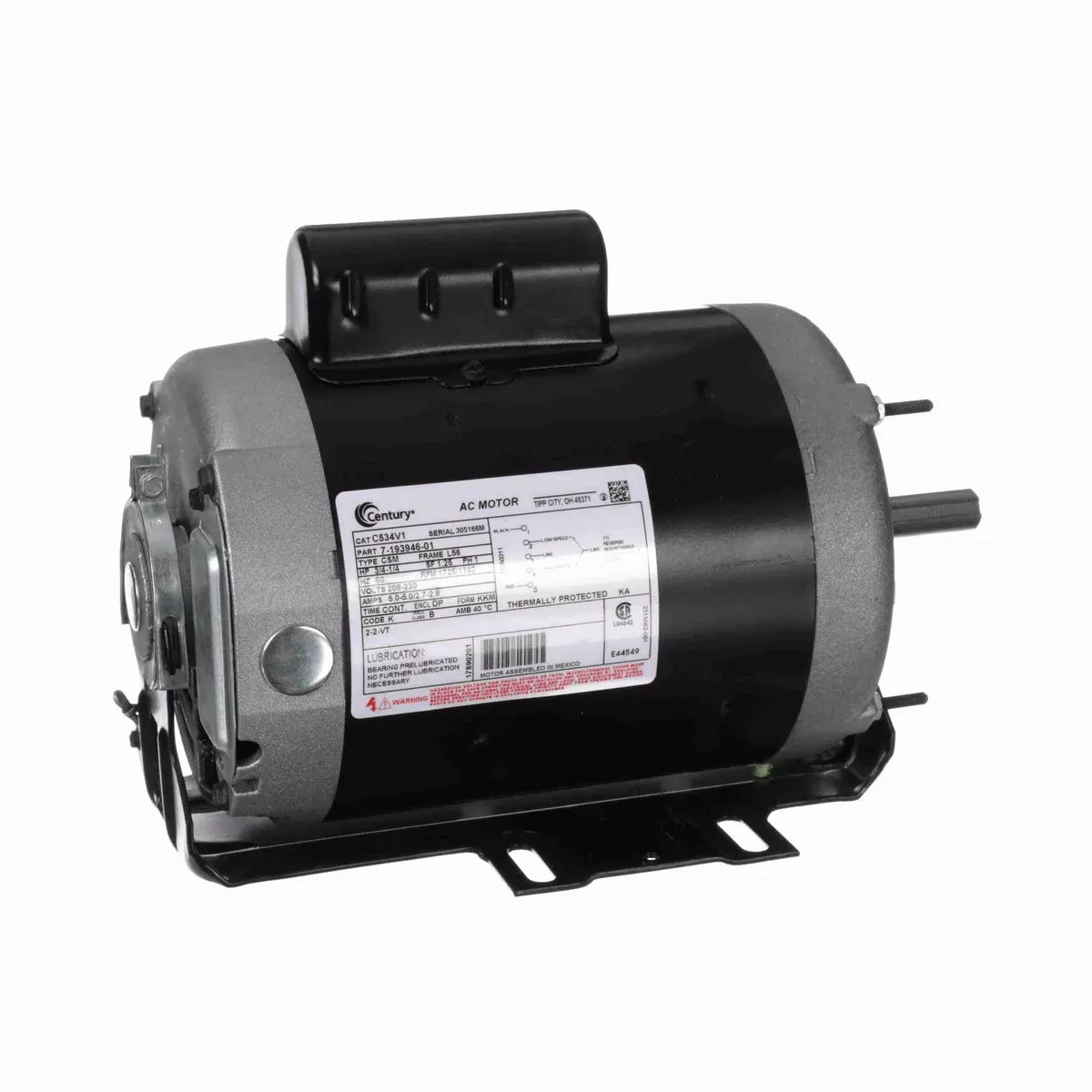

Century C534V1 HVAC Belt Drive Fan Motor – C534V1
Original price was: $574.98.$381.93Current price is: $381.93.
