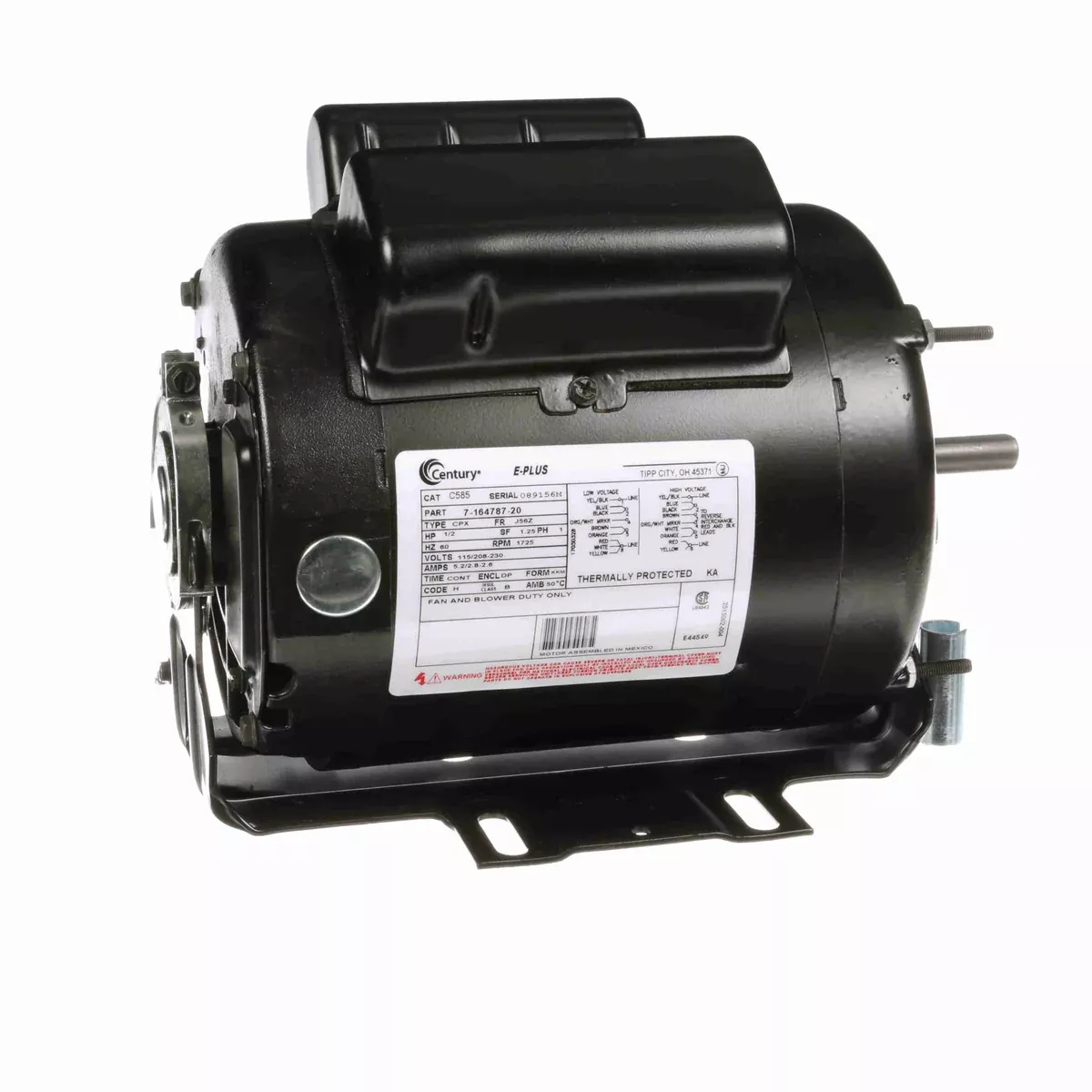

Century C585 General Purpose Single Phase Motor – C585

Original price was: $365.91.Current price is: $269.74.

Sale!
SKU: C585 Category:
Share
  • Product Type: Capacitor Start, Capacitor Run
  • HP: 1/2
  • RPM: 1725
  • Volts: 115/208-230
  • Amps: 5.2/2.8/2.6
  • Hz: 60
  • Phase: 1
  • Frame: 56Z
  • Enclosure Type: ODP (Open Dripproof)
  • Mounting: Cradle/Stud
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.25
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 50° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: Included
  • C585 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 164787, Century 164787
  • Bearings Lubricated With Beacon 525 Low Temperature Grease
  • Energy Efficient
  • Ship Weight: 32 lbs.
