- Product Type: Capacitor Start, Capacitor Run
- HP: 3/4
- RPM: 1725
- Volts: 115/208-230
- Amps: 4.2/4/8
- Hz: 60
- Phase: 1
- Frame: 56
- Enclosure Type: ODP (Open Dripproof)
- Mounting: Cradle
- Motor Diameter: 6-1/2″
- Shaft Diameter: 5/8″ Keyed
- Shaft Length: 1-7/8″
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor (SF): 1.25
- Bearings: Ball
- Thermal Protection: Automatic
- Maximum Ambient Temperature: 50° C
- Insulation Class: B
- Duty Cycle: Continuous
- Capacitor: Included
- C586 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 164788, Century 164788
- Bearings Lubricated With Beacon 525 Low Temperature Grease
- Energy Efficient
- Ship Weight: 30 lbs.

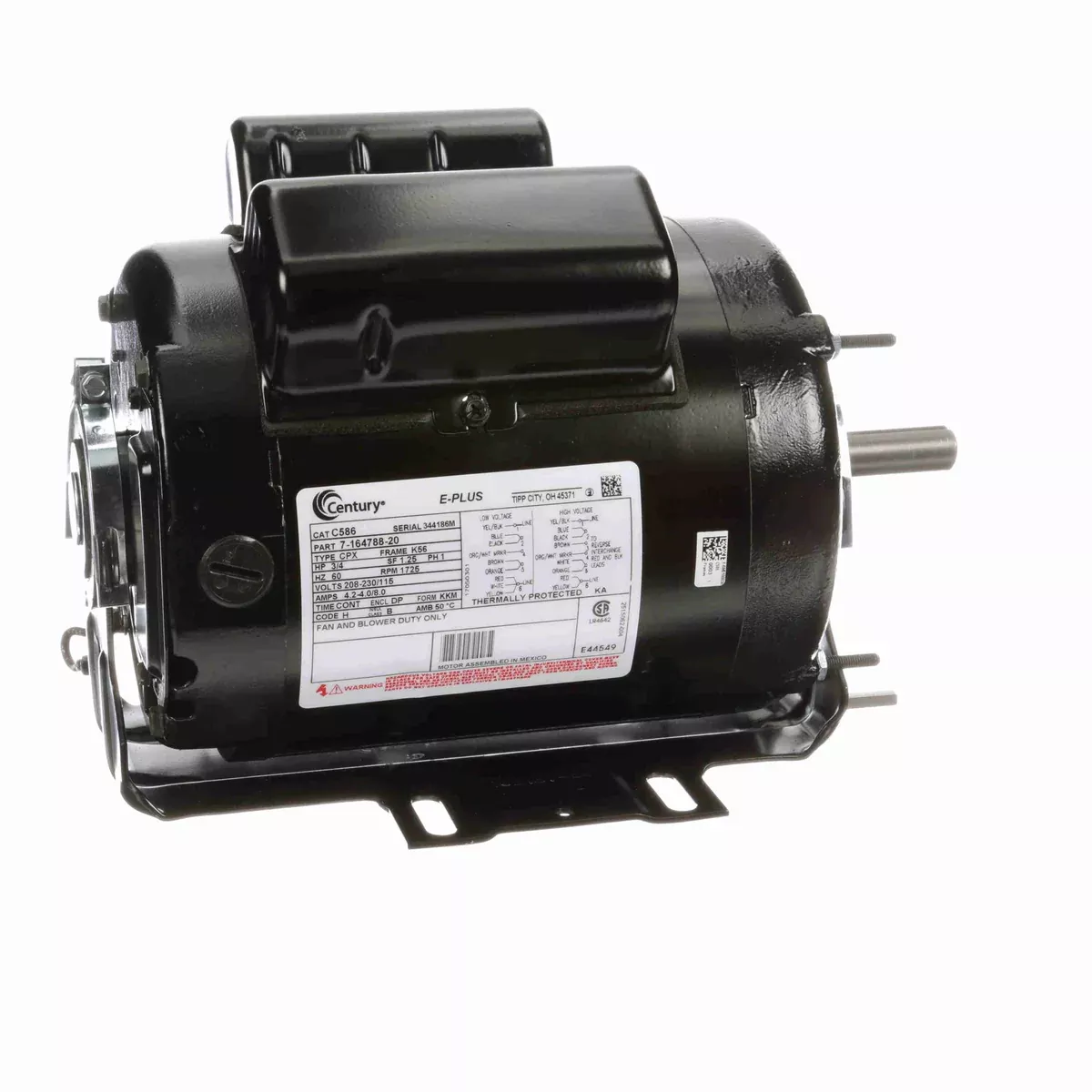

Century C586 General Purpose Single Phase Motor – C586
Original price was: $396.53.$310.96Current price is: $310.96.
