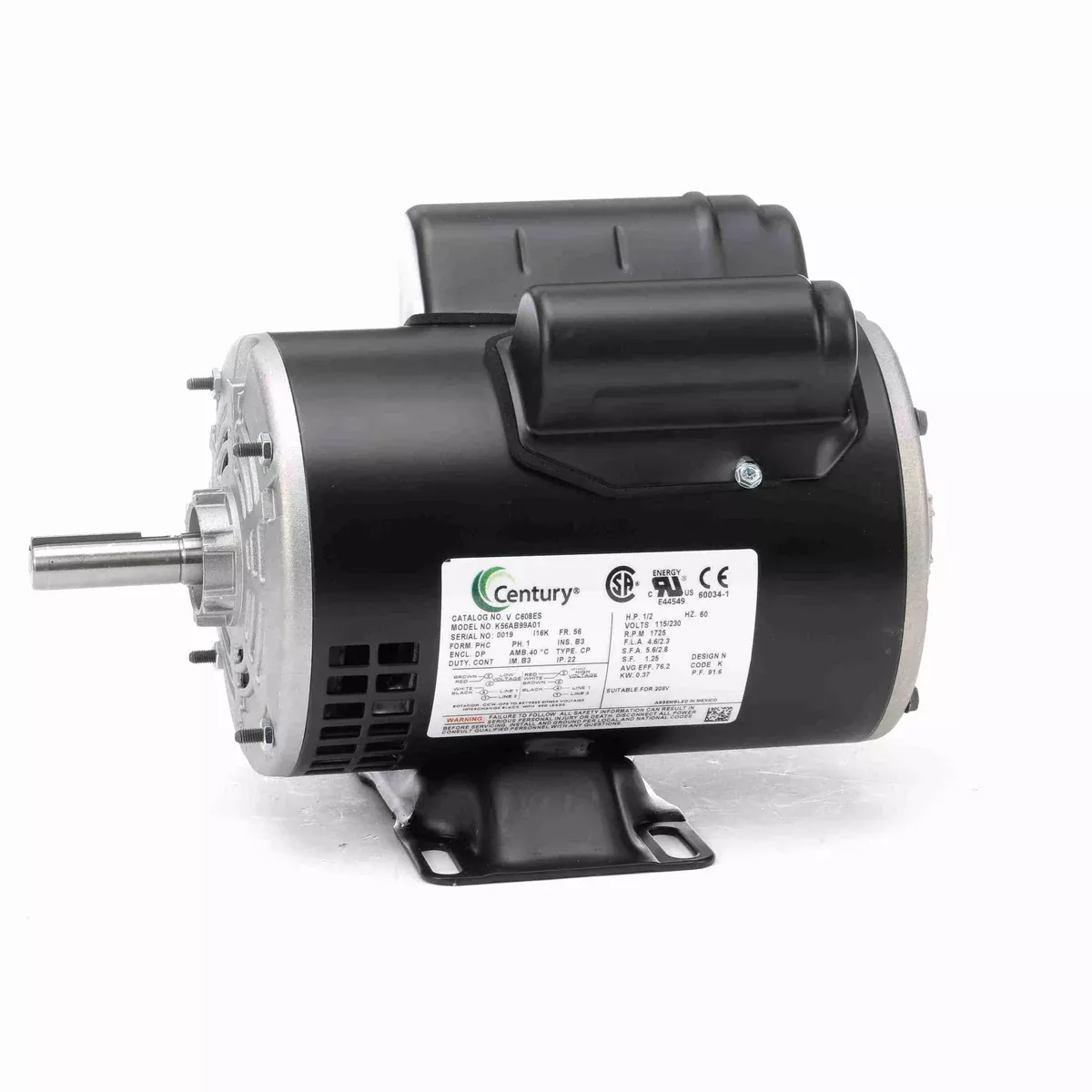

Century C608ES General Purpose Single Phase Motor – C608ES

Original price was: $233.17.Current price is: $135.06.

Sale!
SKU: C608ES Category:
Share
  • C608ES replaces stock C608
  • Product Type: Capacitor Start
  • HP: 1/2
  • RPM: 1725
  • Volts: 115/230
  • Amps: 4.6/2.3
  • Hz: 60
  • Phase: 1
  • Frame: 56
  • Enclosure Type: ODP (Open Dripproof)
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 1-7/8″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.25
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 374MFD @ 125VAC (Included)
  • C608ES is listed in Century’s cross reference as a possible substitute for the following: Century K56AB99A01
  • Ship Weight: 22 lbs.
