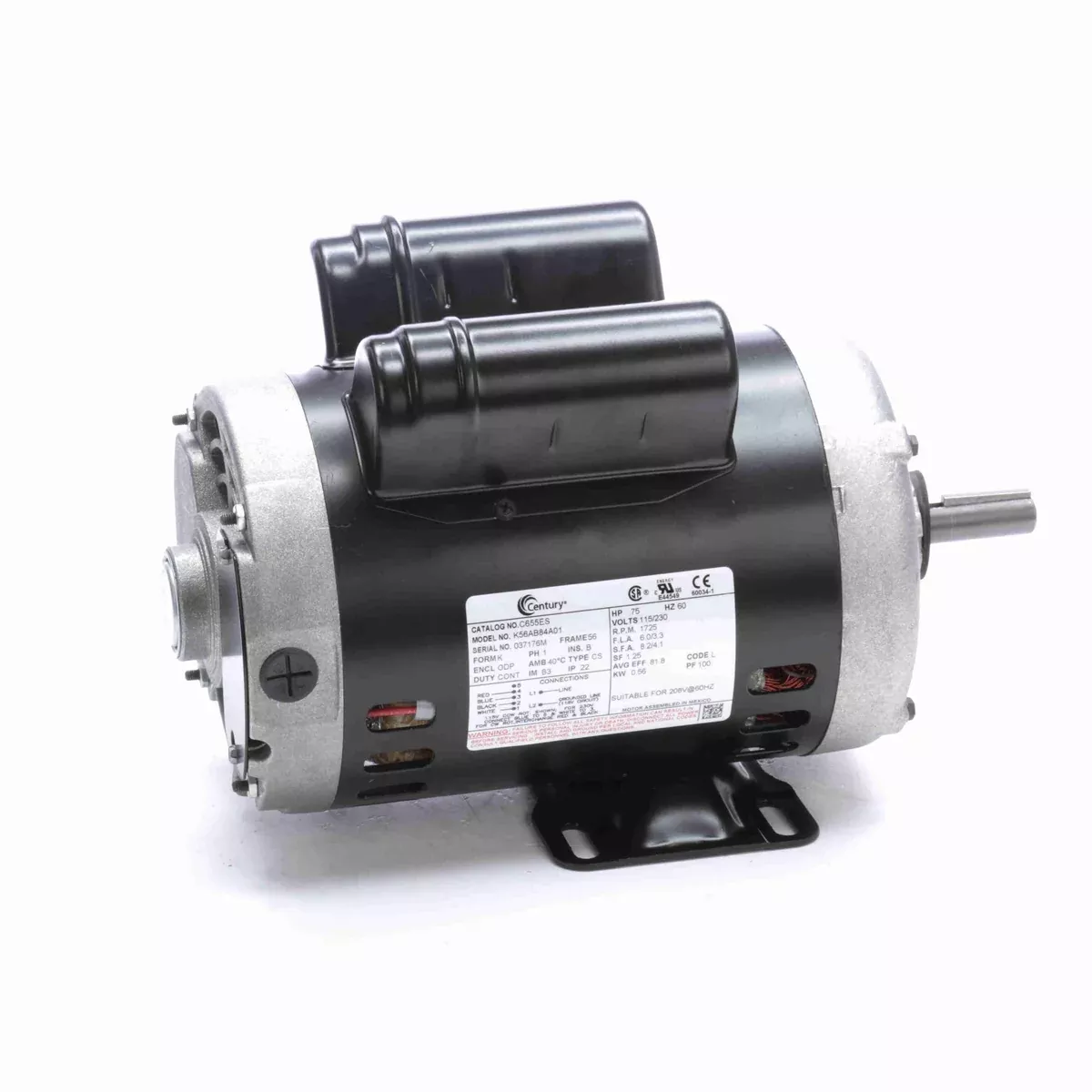

Century C655ES General Purpose Single Phase Motor – C655ES

Original price was: $113.90.Current price is: $87.07.

Sale!
SKU: C655ES Category:
Share
  • We’re sorry, this motor is discontinued. Please look at a Marathon C186A as a substitute.
  • C655ES replaces stock C655
  • Product Type: Capacitor Start
  • HP: 3/4
  • RPM: 1725
  • Volts: 115/230
  • Amps: 6/3.3
  • Hz: 60
  • Phase: 1
  • Frame: 56
  • Enclosure Type: ODP (Open Dripproof)
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 1-7/8″
  • Rotation: CW Shaft End
  • Number of Speeds: 1
  • Service Factor (SF): 1.25
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: Included
  • C655ES is listed in Century’s cross reference as a possible substitute for the following: Century K56AB84A01
  • Weight: 28 lbs.
  • Ship Weight: 28 lbs.
