Home » Shop » hot sale » Century C686V1 General Purpose Single Phase Motor – C686V1

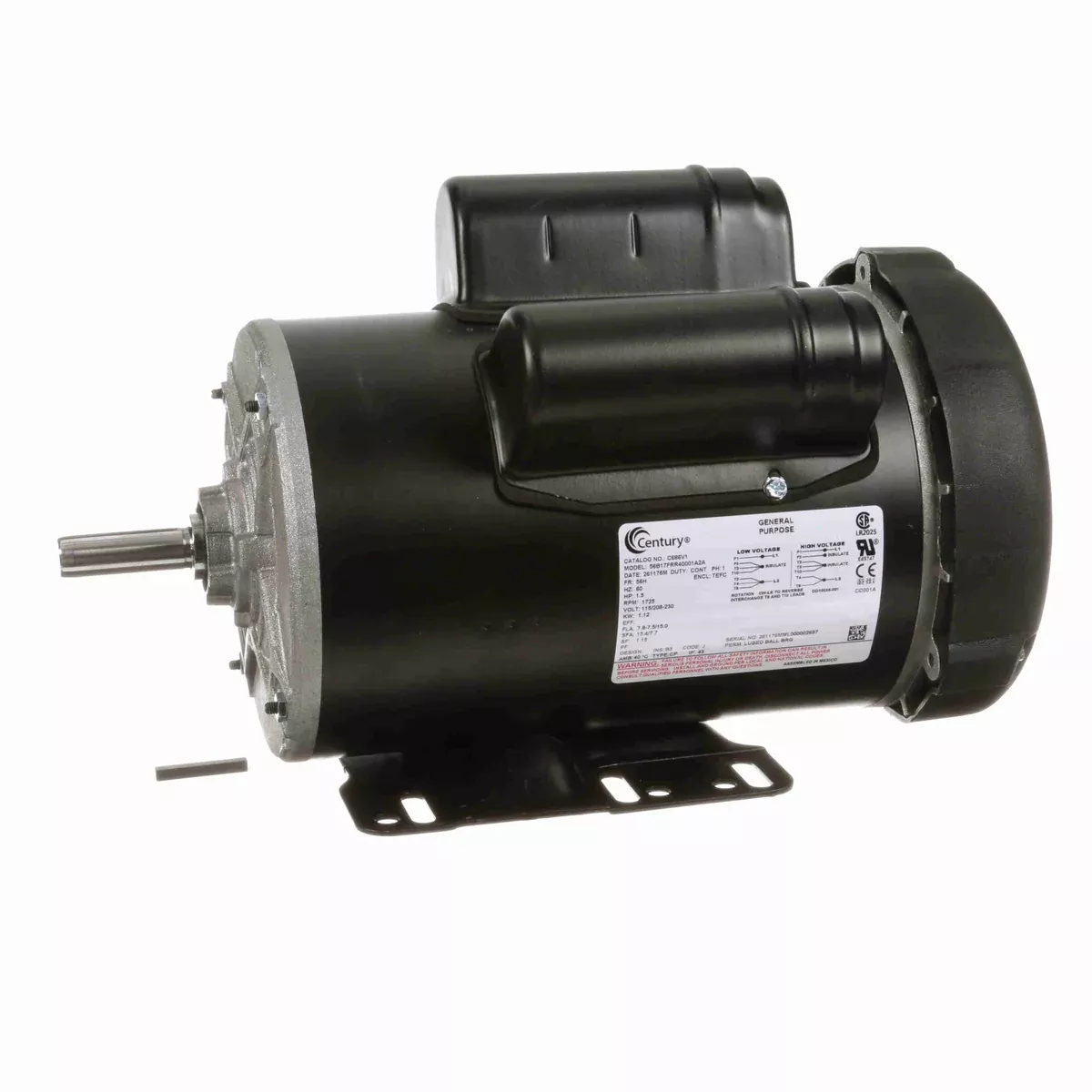

Century C686V1 General Purpose Single Phase Motor – C686V1

Original price was: $419.28.Current price is: $294.70.

Sale!
SKU: C686V1 Category:
Share
  • Product Type: Capacitor Start, Capacitor Run
  • HP: 1-1/2
  • RPM: 1725
  • Volts: 115/208-230
  • Amps: 7.8/7.5/15
  • Hz: 60
  • Phase: 1
  • Frame: 56H
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: Rigid
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 1-7/8″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: Included
  • C686V1 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 164258, A.O. Smith 311P402, A.O. Smith EB1154A, Baldor L3514A, Century 164258, Emerson 678, Franklin 15717, GE 5KC49ZG522X, GE C282, Dayton 3K235, Dayton 4K023, Dayton 5K565, Dayton 5K585, Leeson 110019, Leeson L3514A, Marathon G377, Marathon Q56B17F5301
  • Energy Efficient
  • Ship Weight: 45 lbs.
