- Product Type: PSC (Permanent Split Capacitor)
- HP: 1
- RPM: 725/850
- Volts: 230
- Amps: 5.1/5.1
- Hz: 50/60
- Phase: 1
- Frame: 56CZ
- Enclosure Type: TEAO (Totally Enclosed Air Over)
- Mounting: C-Face/Rigid
- Motor Diameter: 6-1/2″
- Shaft Diameter: 5/8″ Keyed
- Shaft Length: 3-1/4″
- Rotation: CW Shaft End
- Number of Speeds: 2
- Service Factor (SF): 1.00
- Bearings: Ball
- Thermal Protection: Automatic
- Maximum Ambient Temperature: 40° C
- Insulation Class: B
- Duty Cycle: Continuous
- Capacitor: Included
- C783 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 186617, Century 186617
- Fully Gasketed
- Ship Weight: 44 lbs.

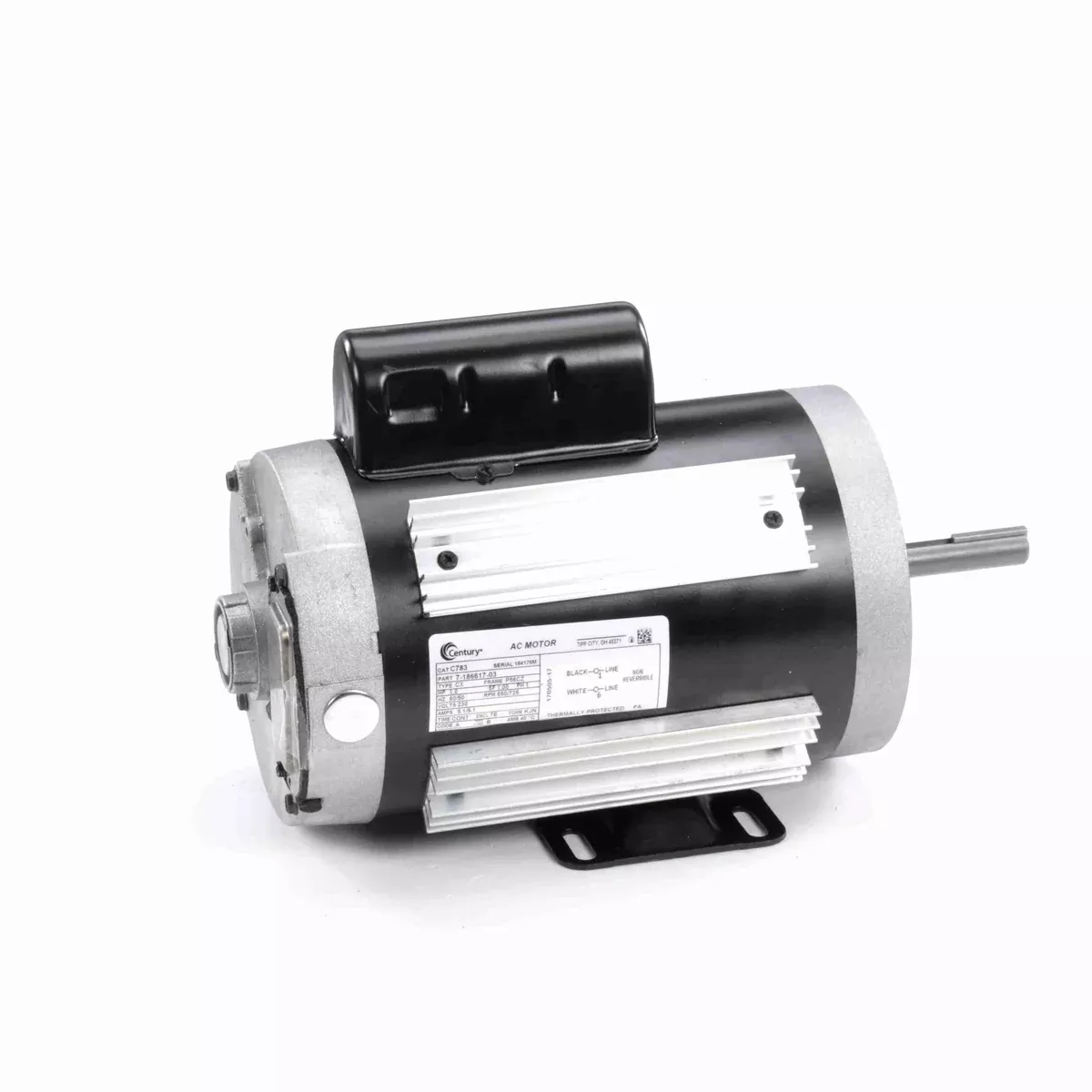

Century C783 HVAC Direct Drive Fan Motor – C783
Original price was: $360.38.$240.08Current price is: $240.08.
