Home » Shop » hot sale » Century C784 HVAC Condenser Fan Motor – C784

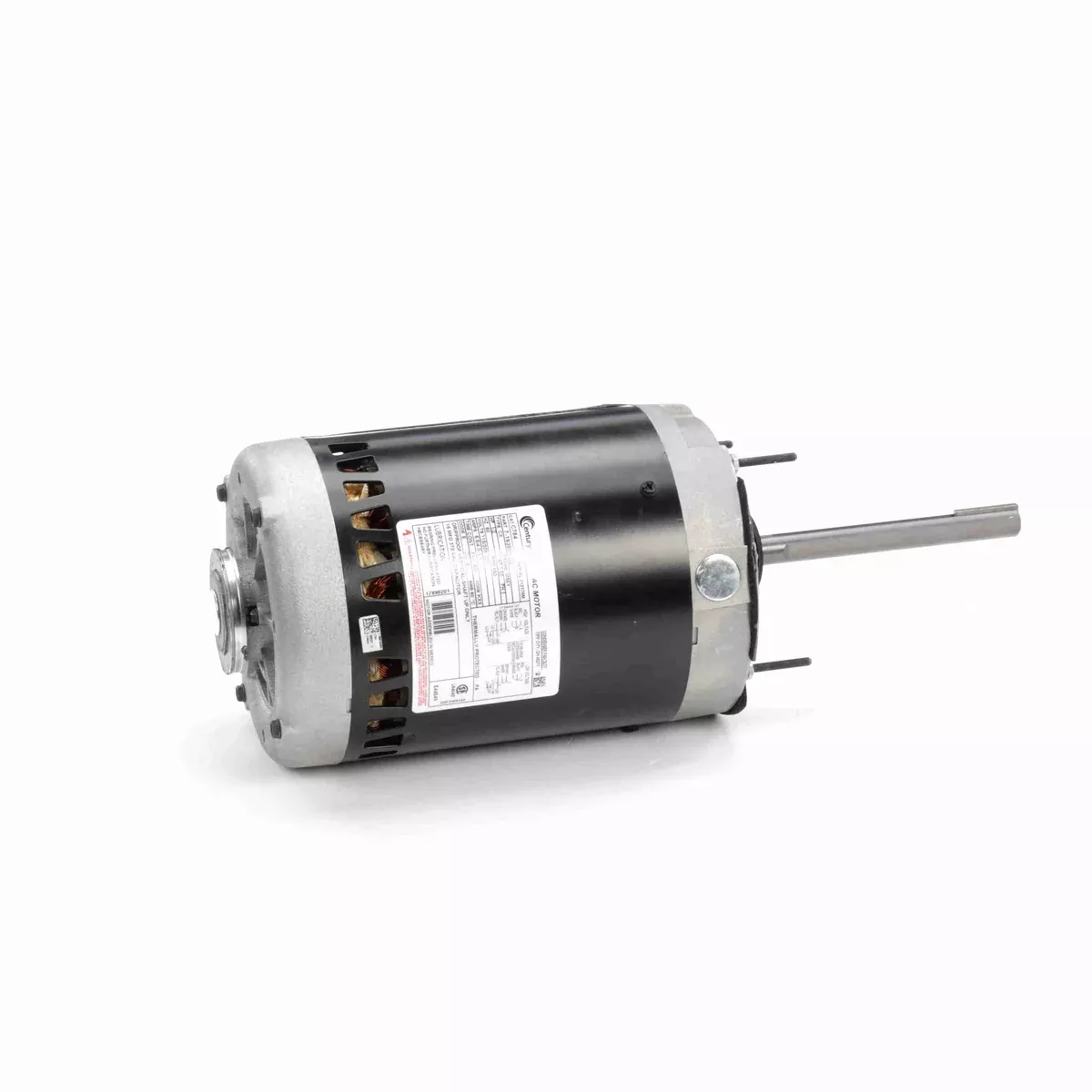

Century C784 HVAC Condenser Fan Motor – C784

Original price was: $365.94.Current price is: $278.80.

Sale!
SKU: C784 Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/2
  • RPM: 850
  • Volts: 115/208-230
  • Amps: 6.6/4/3.3
  • Hz: 60
  • Phase: 1
  • Frame: 56Y
  • Enclosure Type: OAO (Open Air Over)
  • Mounting: Band/Ring/Stud
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 6″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 60° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 15MFD @ 370VAC Required
  • C784 is listed in Century’s cross reference as a possible substitute for the following: Dayton 4M125, Dayton 4MA39
  • Quick Connect Design
  • Includes Resilient Mounting Rings
  • Ship Weight: 36 lbs.
