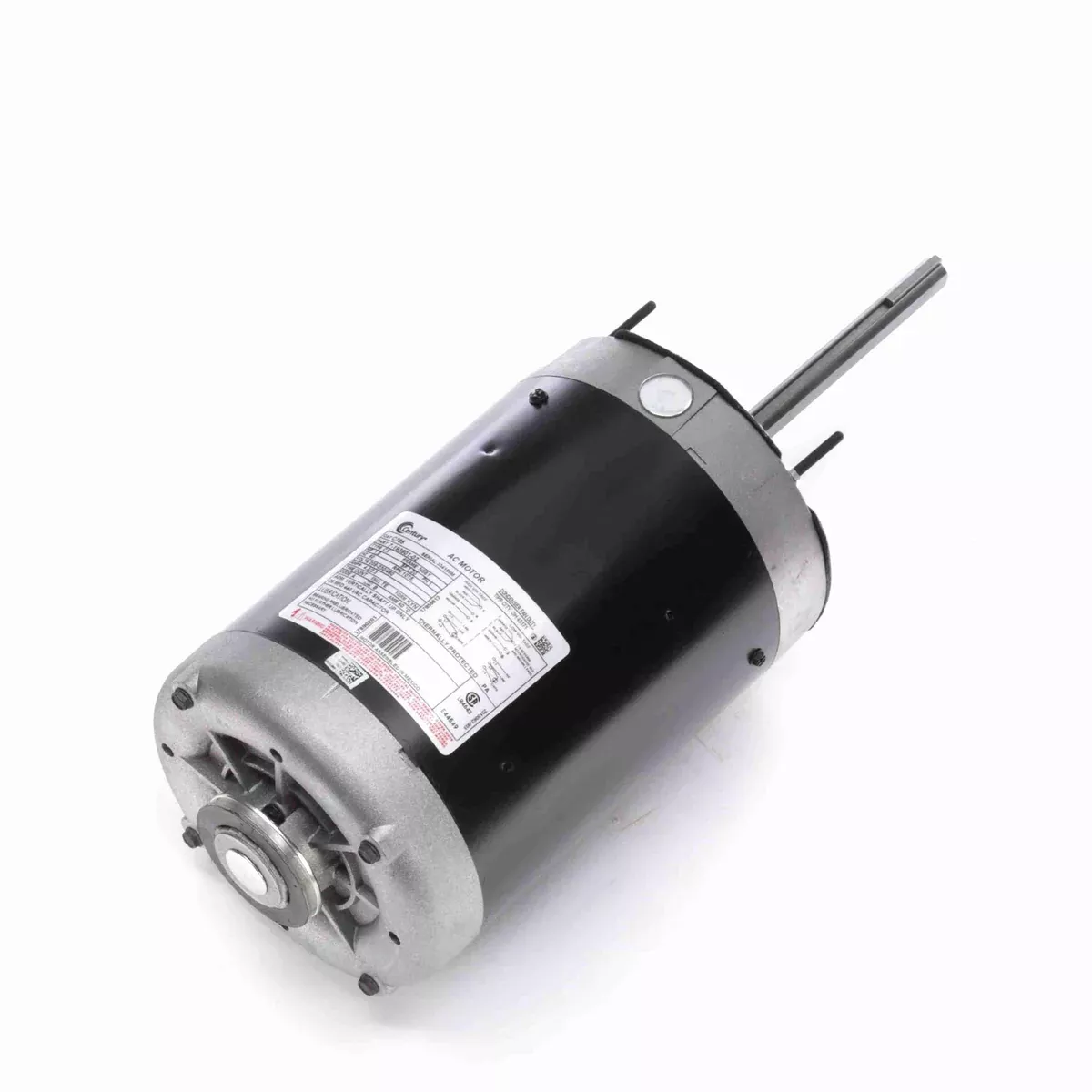

Century C785 HVAC Condenser Fan Motor – C785

Original price was: $114.60.Current price is: $71.63.

Sale!
SKU: C785 Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1
  • RPM: 1075
  • Volts: 208-230/460
  • Amps: 4.2/2.3
  • Hz: 60
  • Phase: 1
  • Frame: 56Y
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting: Band/Ring/Stud
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 6″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 25MFD @ 440VAC Required
  • C785 is listed in Century’s cross reference as a possible substitute for the following: Dayton 4M264, Dayton 4MA50
  • Quick Connect Design
  • Includes Resilient Mounting Rings
  • Ship Weight: 40 lbs.
