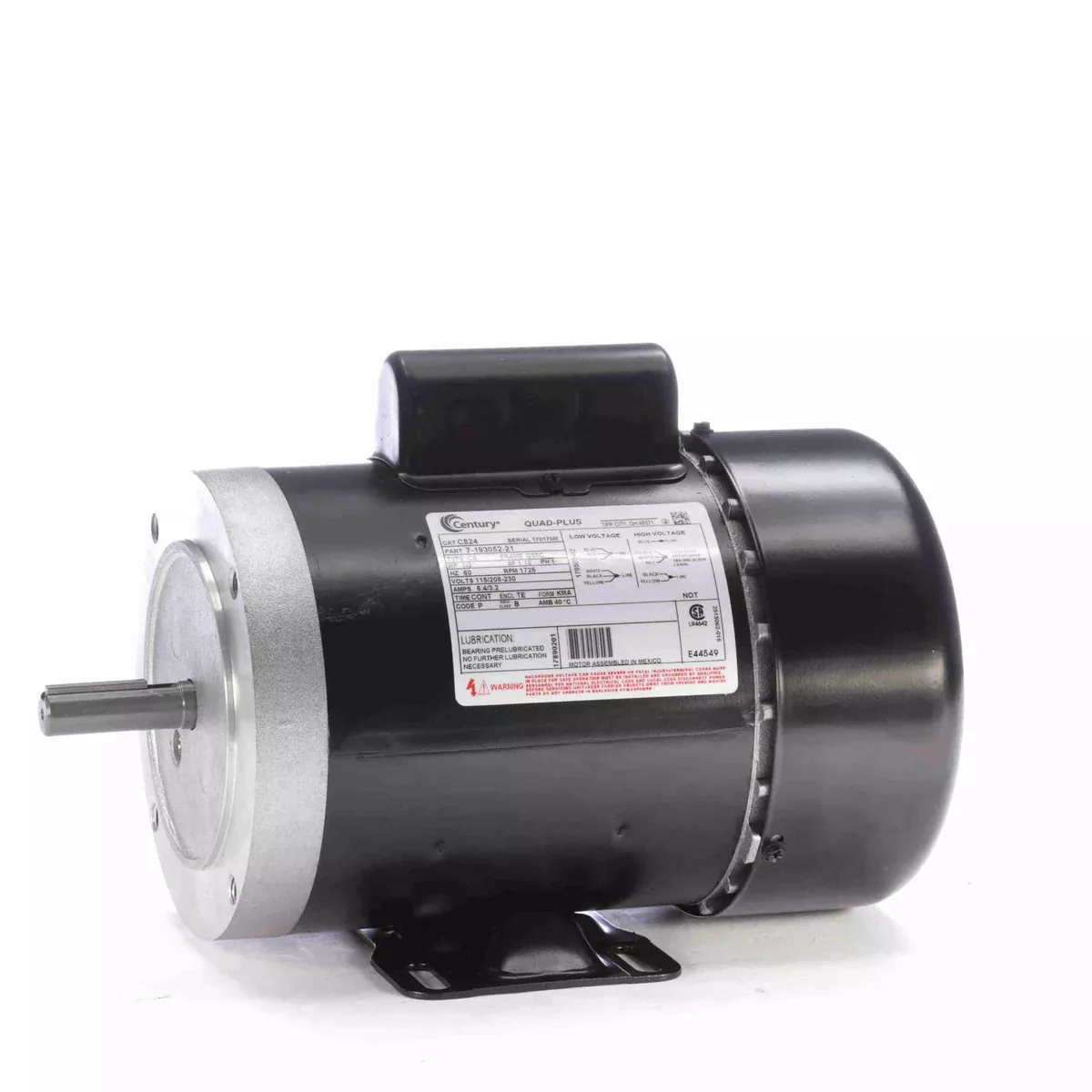

Century C824 General Purpose Single Phase Motor – C824

Original price was: $280.14.Current price is: $155.35.

Sale!
SKU: C824 Category:
Share
  • Product Type: Capacitor Start
  • HP: 1/3
  • RPM: 1725
  • Volts: 115/208-230
  • Amps: 6.4/3.2
  • Hz: 60
  • Phase: 1
  • Frame: 56C
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Enclosure Material: Steel
  • Mounting: C-Face/Rigid
  • Motor Diameter: 6-1/2″
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 1-7/8″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: Included
  • C824 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 193052, A.O. Smith C236, Baldor CL3501, Century 158311, Century 193052, Century V56C17F2044, GE 04586, GE 4586, GE 5KC35MN145H, Dayton 1K077, Dayton 2K674, Dayton 5K341, Johnstone Supply S88-482, Leeson 110900, Leeson 114144, Marathon V56C17F2044, Marathon G550, Marathon G570
  • Ship Weight: 29 lbs.
