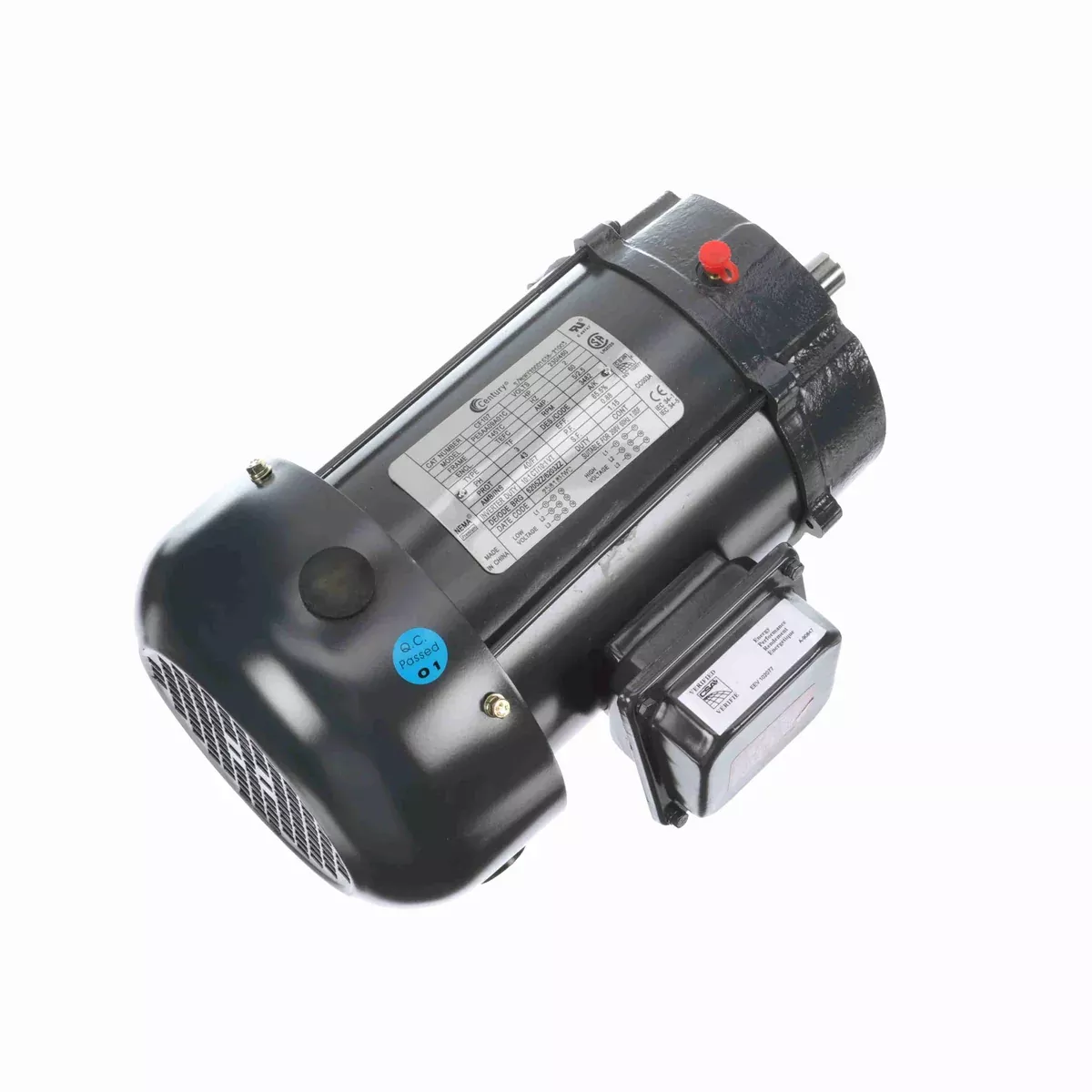

Century CF107 3 Phase General Purpose Motor – CF107

Original price was: $281.05.Current price is: $192.28.

Sale!
SKU: CF107 Category:
Share
  • CF107 replaces stock TCF82003E
  • Product Type: 3 Phase
  • HP: 2
  • RPM: 3480
  • Volts: 208-230/460
  • Amps: 2.45
  • Hz: 50/60
  • Phase: 3
  • Frame: 145TC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Enclosure Material: Steel
  • Mounting: C-Face
  • Shaft Diameter: 7/8″ Keyed
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.15
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: F
  • Duty Cycle: Continuous
  • CF107 is listed in Century’s cross reference as a possible substitute for the following: Marathon C731, Marathon V145TTFR5333, A.O. Smith 193036, A.O. Smith E1028, A.O. Smith E1028E, A.O. Smith F00222NN82E, Baldor CM3554T, Baldor CM3555T, Century 193036, Dayton 2R944, Dayton 6N063, Leeson 120276, Lincoln AF2S2TC61, Lincoln AF4S1.5TC61, Lincoln CF2H2TC61, Lincoln CF4H.15TC61, Lincoln CN2E2TC61, Lincoln CN4E1.5TC61, Lincoln LM01128, Lincoln LM01156, Lincoln LM02813, Lincoln LM02823, Lincoln LM12059, Lincoln LM12060, Lincoln LM12061, Lincoln LM12062, Lincoln SF2S2TC61, Lincoln SF4S1.5TC61, Marathon C711, Marathon V145TTFR5301
  • Ship Weight: 60 lbs.
