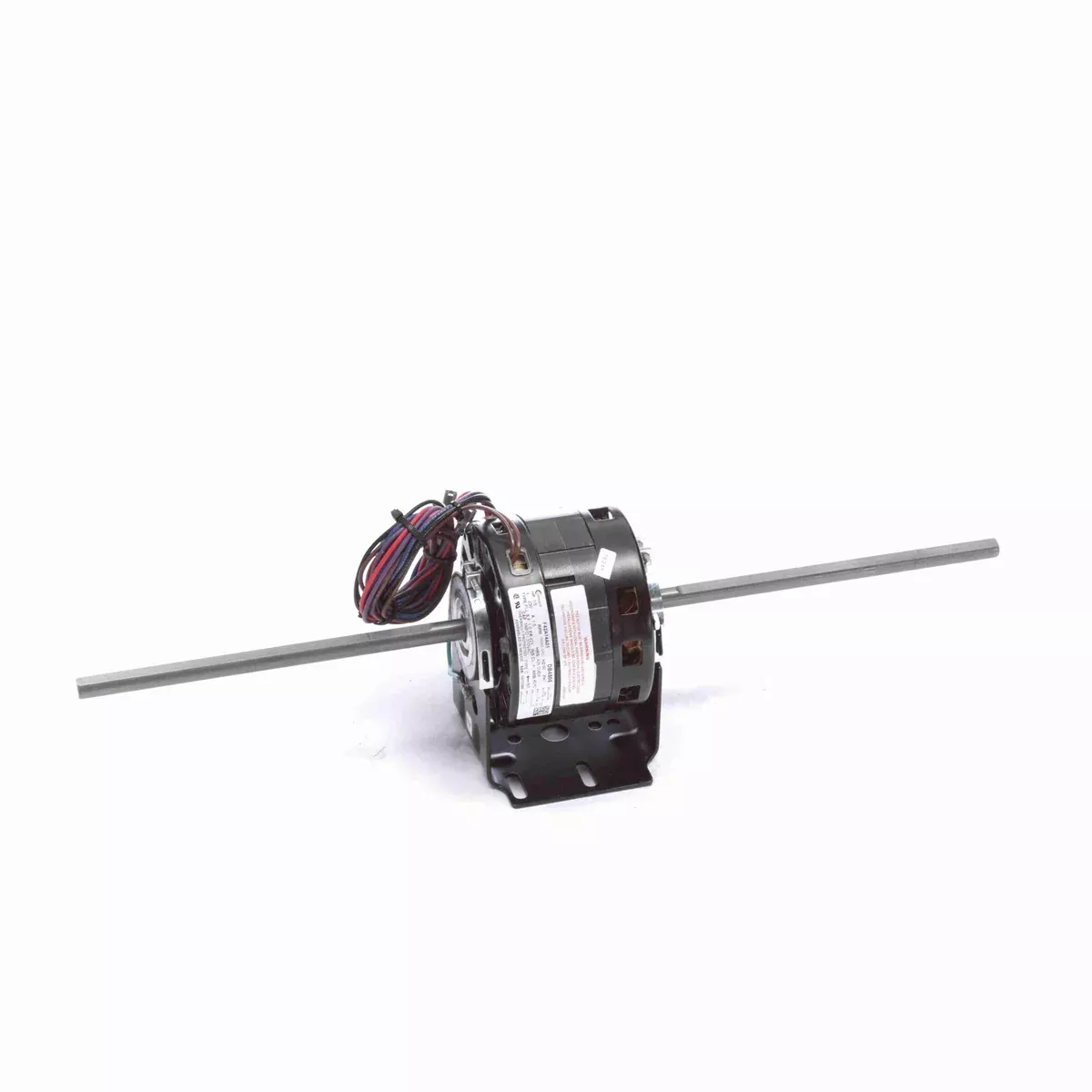

Century DB4505 5″ Diameter HVAC Fan Coil and Room Air Conditioning Motor – DB4505

Original price was: $210.17.Current price is: $155.98.

Sale!
SKU: DB4505 Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/5
  • RPM: 1500
  • Volts: 230
  • Amps: 1.5
  • Hz: 60
  • Phase: 1
  • Frame: 42Y
  • Enclosure Type: OAO (Open Air Over)
  • Mounting: Cradle
  • Motor Diameter: 5″
  • Shaft Diameter: 1/2″
  • Shaft Length: 9-5/16″ x 9-5/16″
  • Rotation: Double Shafted
  • Number of Speeds: 3
  • Service Factor (SF): 1.00
  • Bearings: Sleeve
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: A
  • Duty Cycle: Continuous
  • Capacitor: 5MFD @ 370VAC Required
  • DB4505 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith F42A14A01, A.O. Smith F42A14A34, A.O. Smith F42A14B38, A.O. Smith F42D03B09, Johnstone Supply S88-294, Universal Electric 467, A.O. Smith 322P533, Fasco D1032
  • Includes Base
  • 3-1/2″ Shaft Height
  • 36″ Leads
  • Ship Weight: 12 lbs.
