Home » Shop » hot sale » Century DB6525V1 PSC (Permanent Split Capacitor) 5″ Diameter Double Shafted Fan Coil Unit Motor – DB6525V1

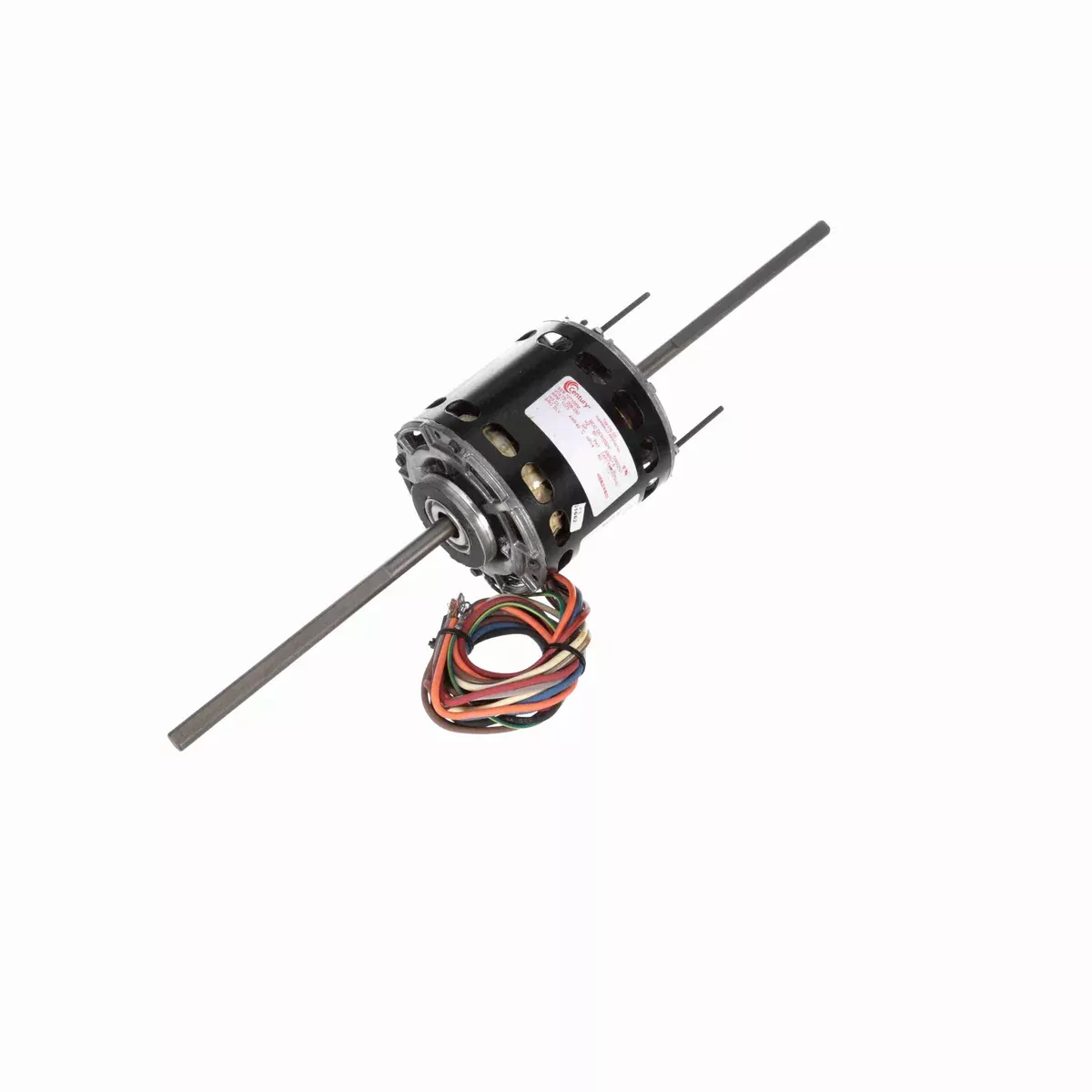

Century DB6525V1 PSC (Permanent Split Capacitor) 5″ Diameter Double Shafted Fan Coil Unit Motor – DB6525V1

Original price was: $296.34.Current price is: $235.13.

Sale!
SKU: DB6525V1 Category:
Share
  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/4
  • RPM: 1075
  • Volts: 208-230
  • Amps: 1.6
  • Hz: 60
  • Phase: 1
  • Frame: 42Y
  • Enclosure Type: OAO (Open Air Over)
  • Mounting: Cradle/Stud
  • Motor Diameter: 5″
  • Shaft Diameter: 1/2″
  • Shaft Length: 8-1/2″ x 8-1/2″
  • Rotation: Double Shafted
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Sleeve
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 7.5MFD @ 370VAC Required
  • DB6525V1 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith DE3H032, GE 5KCP29KG5864, Dayton 4M332, Dayton 4MA91
  • Includes Base
  • 3-1/2″ Shaft Height
  • 26″ Leads
  • Ship Weight: 15 lbs.
