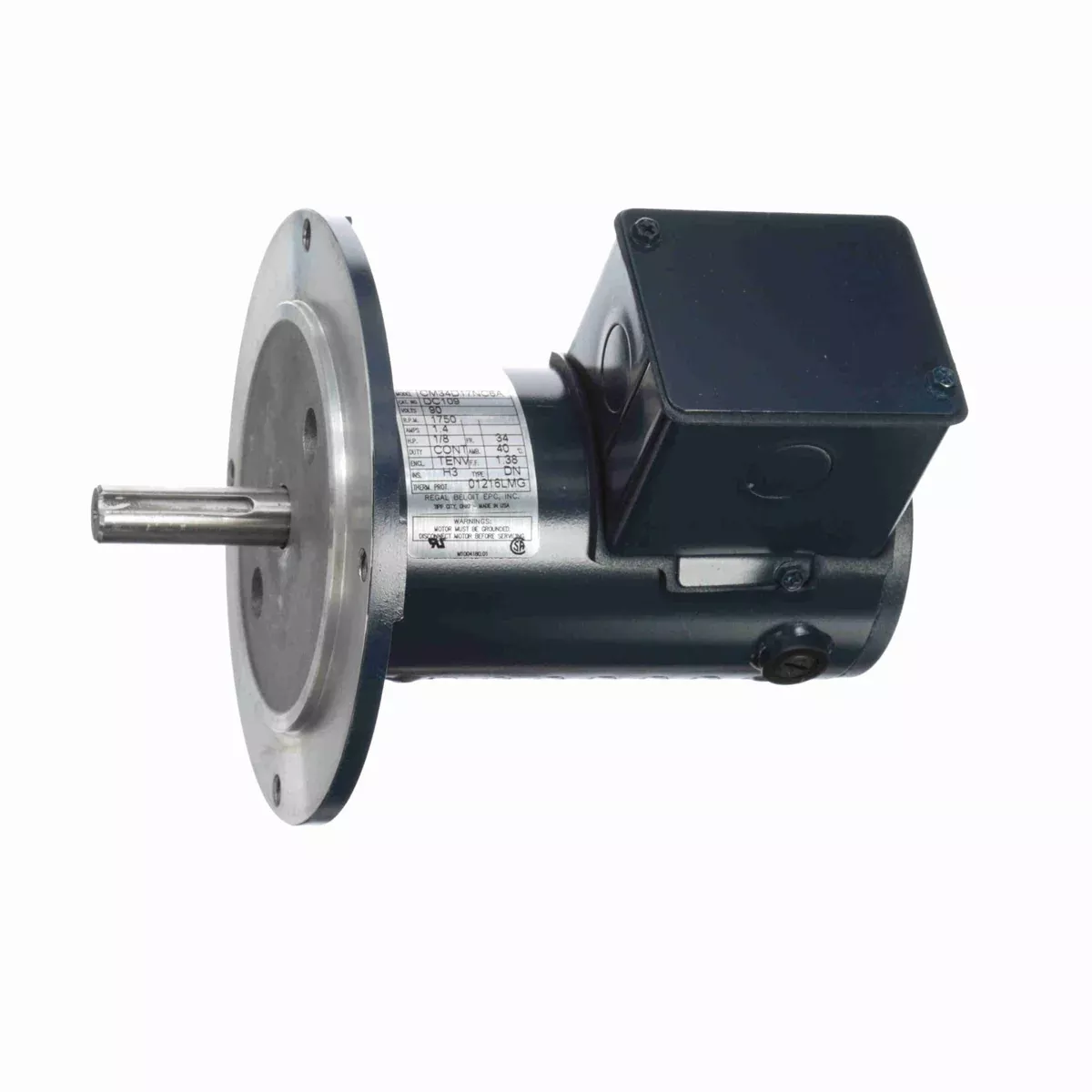

Century DC109 General Purpose DC Motor – DC109

Original price was: $379.26.Current price is: $262.30.

Sale!
SKU: DC109 Category:
Share
  • Product Type: DC
  • HP: 1/8
  • RPM: 1750
  • Volts: 90 VDC
  • Amps: 1.4
  • Phase: DC
  • Frame: 34
  • Enclosure Type: TENV (Totally Enclosed Non Ventilated)
  • Mounting: C-Face
  • Shaft Diameter: 5/8″ Keyed
  • Shaft Length: 1-15/16″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: H
  • Duty Cycle: Continuous
  • DC109 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 222000, Boston Gear 343053511430A, Boston Gear 343053515430A, Century 222000
  • Ship Weight: 11 lbs.
