- Product Type: DC
- HP: 3/4
- RPM: 1750
- Volts: 90 VDC
- Amps: 7.6
- Phase: DC
- Frame: 56C
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Mounting: C-Face/Rigid
- Motor Diameter: 6-1/2″
- Shaft Diameter: 5/8″ Keyed
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor (SF): 1.00
- Bearings: Ball
- Maximum Ambient Temperature: 40° C
- Insulation Class: H
- Duty Cycle: Continuous
- DC123 is listed in Century’s cross reference as a possible substitute for the following: A.O. Smith 222107, Baldor CDP3440, Boston Gear 466063525430A, Boston Gear 466063525431A, Boston Gear 466063525432A, Boston Gear 466063525435A, Century 222107, Dayton 2M169, Dayton 2M169C, Dayton 2M504, Leeson 108018, Leeson 98032
- Ship Weight: 30 lbs.

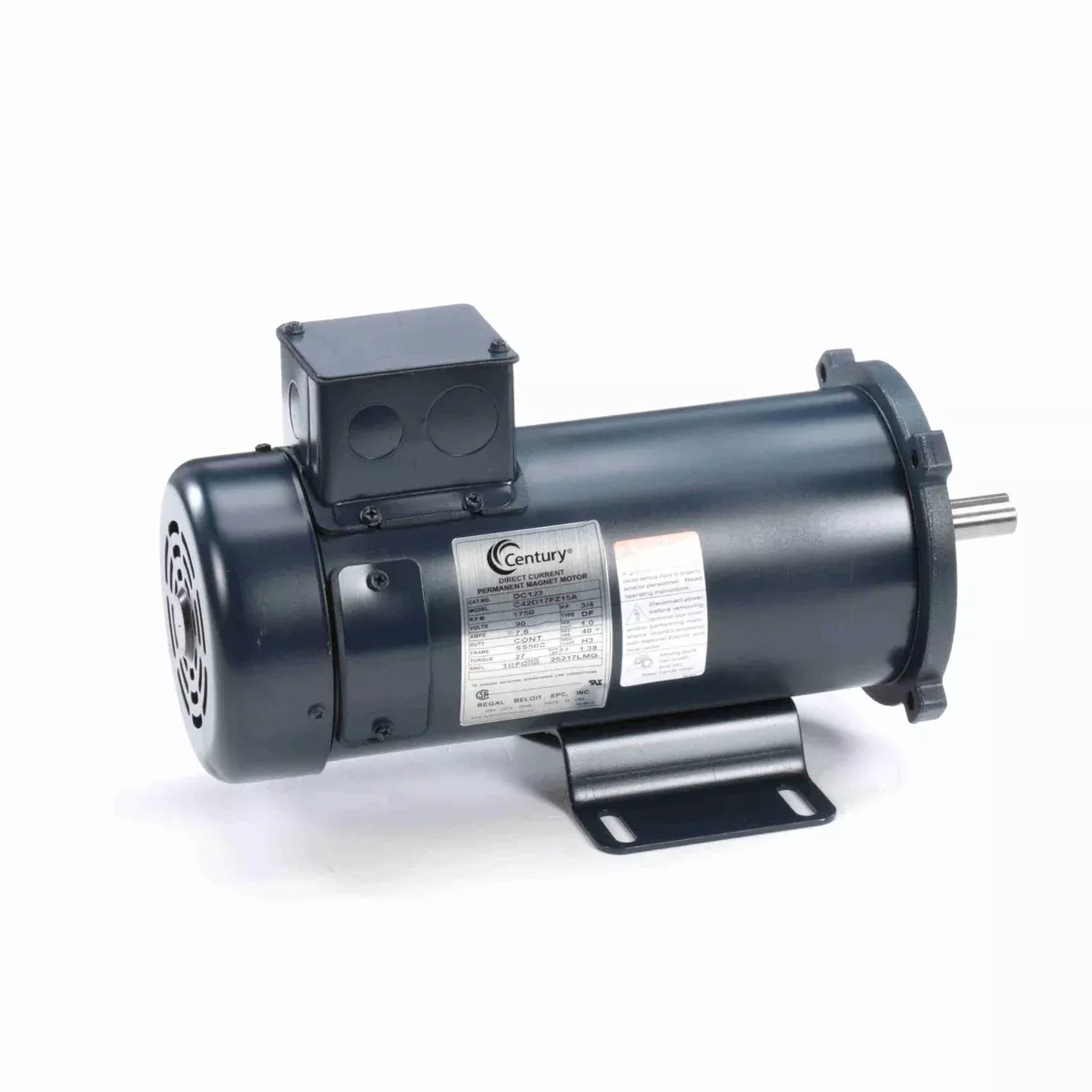

Century DC123 General Purpose DC Motor – DC123
Original price was: $157.90.$86.54Current price is: $86.54.
